ACT Blue 10 meters LSZH SFTP CAT6A MPTL extension cable snagless with RJ45 connectors

The ACT Blue 10 meters LSZH S/FTP CAT6A MPTL extension cable is designed for extending an installed permanent link to devices such as cameras or access points while remaining compliant with MPTL (Modular Plug Terminated Link) ANSI/TIA-568.2-D standards. This 10 m blue cable features a low-smoke zero-halogen (LSZH) jacket for reduced toxic emissions in case of fire and is intended for indoor and plenum-space use.

Advantages

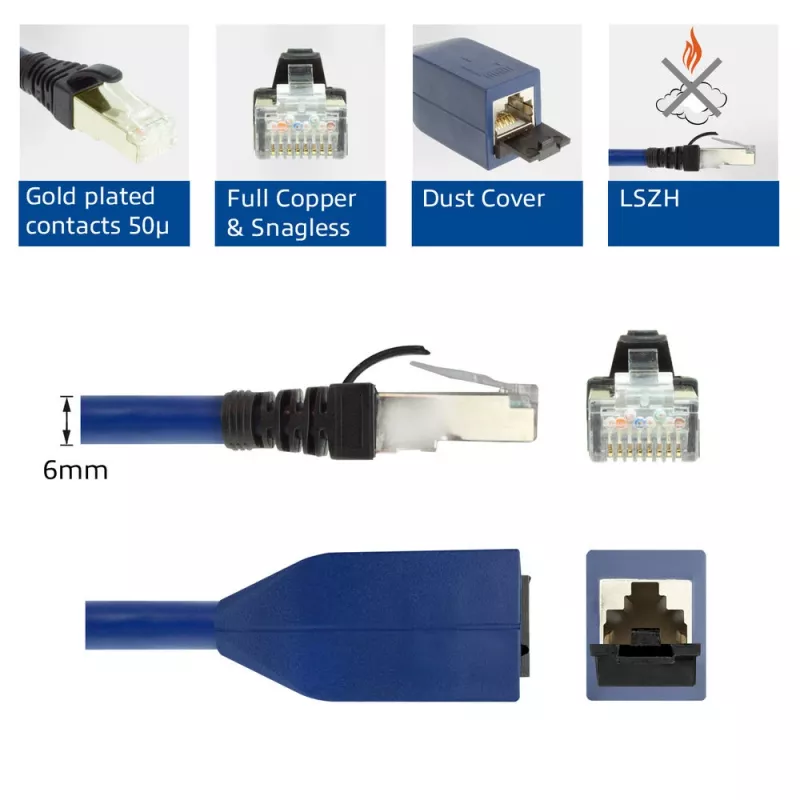

This MPTL extension cable can be fully incorporated into the permanent link and preserves full ANSI/TIA-568.2-D compliance, in contrast to using RJ45 couplers. It uses full copper 26 AWG conductors, 50 µin gold-plated RJ-45 contacts and includes a dust cover. Snagless RJ45 connectors reduce the risk of connector tab damage during installation.

Suitable for

• Extending fixed network cables for IP cameras

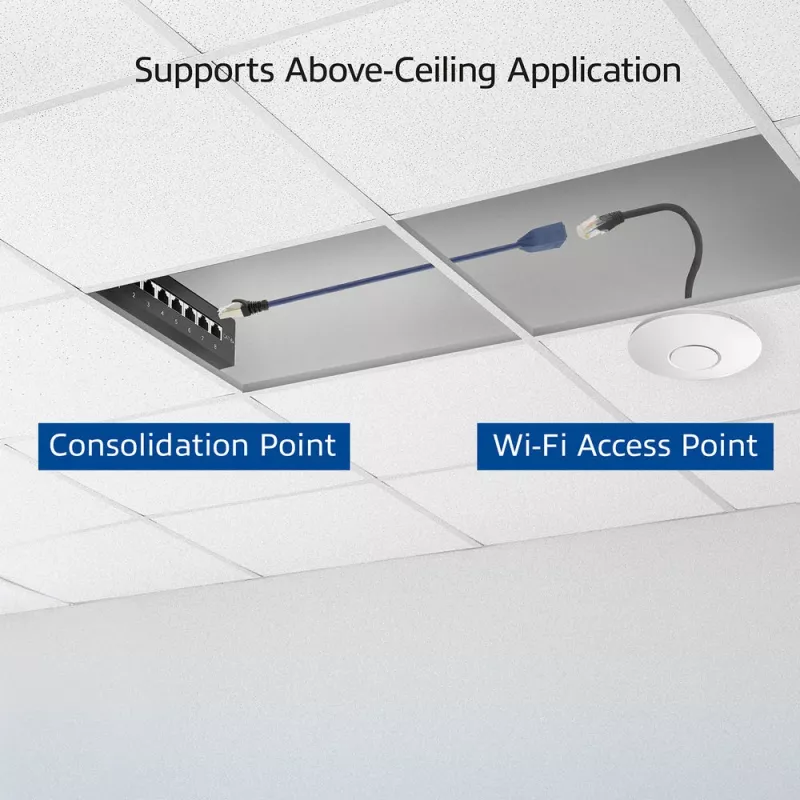

• Connecting wireless access points to a consolidation point
• Use in plenum or other indoor installations requiring LSZH cable
• High-speed CAT6A data links up to 10 meters

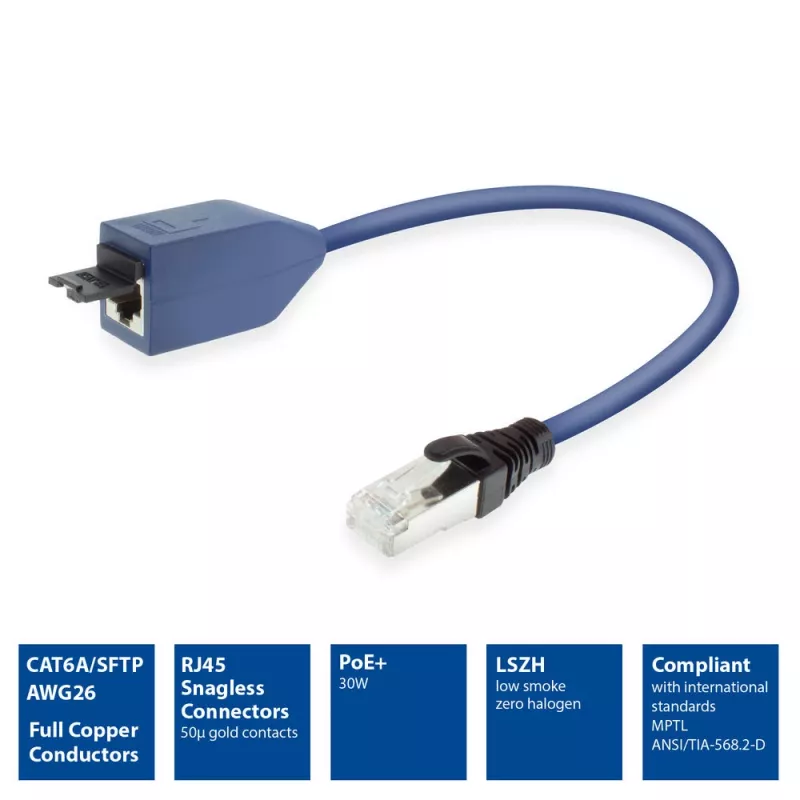

Key specifications

• Standard: ANSI/TIA-568.2-D MPTL
• Cable type: S/FTP CAT6A

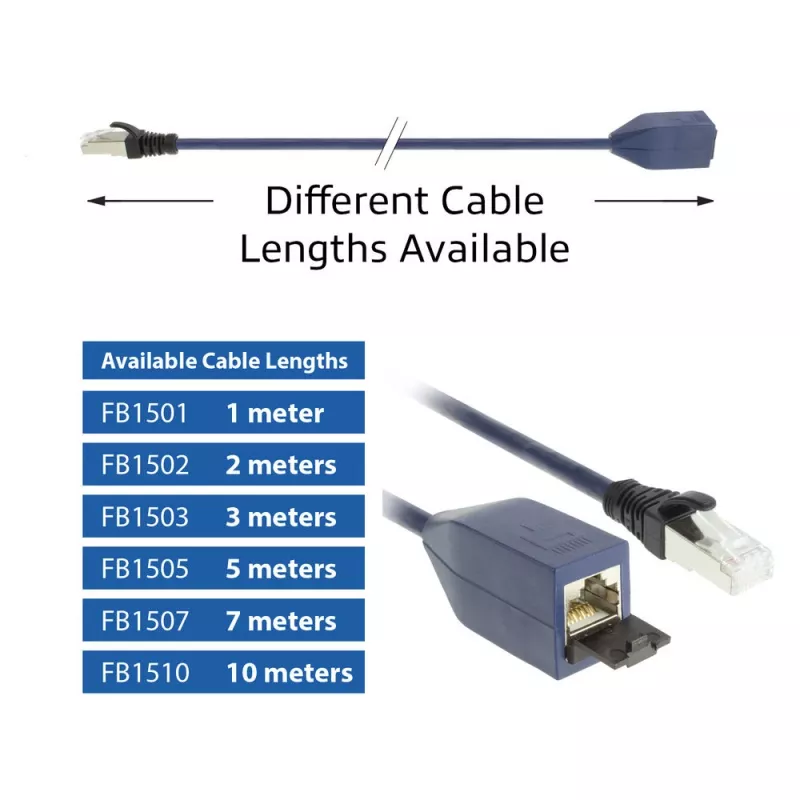

• Length: 10 m
• Conductor: 26 AWG solid copper
• Contacts: 50 µin gold-plated RJ-45
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connector style: Snagless RJ-45 to RJ-45
• Color: Blue

How to use

Route the cable from the device (for example an IP camera or access point) to the consolidation point or patch panel and insert the RJ-45 plugs into the corresponding ports. Ensure both ends are fully seated and the dust cover is in place when an end is not connected. Because the cable is MPTL-compliant, it can be treated as part of the permanent link without introducing non-compliant couplers.

Recommendations

For best performance, avoid tight bends and mechanical stress near the connectors; maintain bend radius according to CAT6A guidelines and keep the cable away from strong electromagnetic interference sources. Use in indoor/plenum spaces where LSZH requirements apply.
