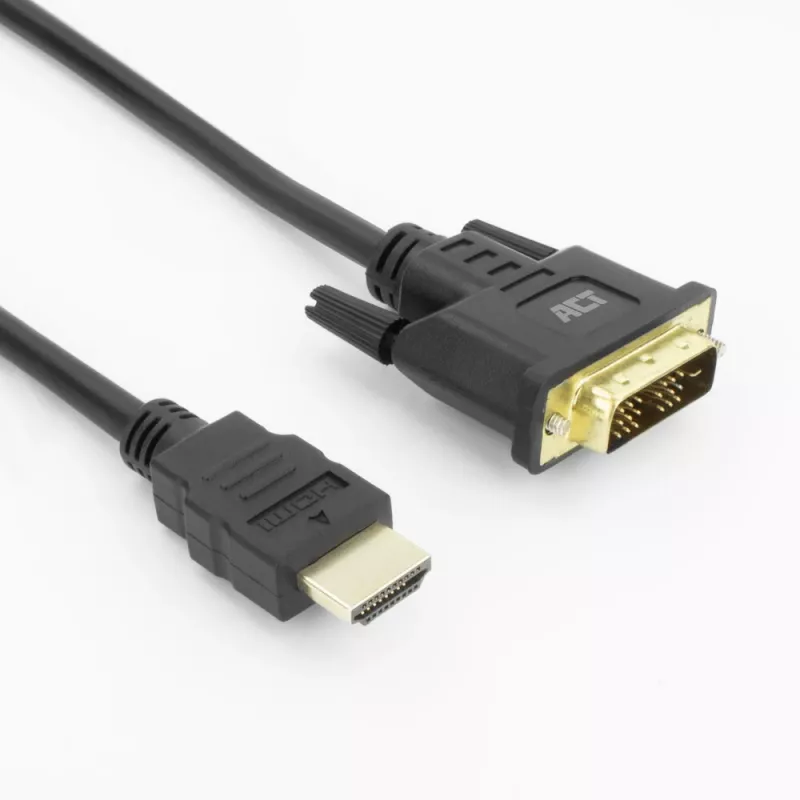

ACT AK3734 video cable adapter 1 m HDMI Type A (Standard) DVI-D Black

The ACT AK3734 video cable adapter is a 1 m HDMI Type A to DVI-D (18+1) cable designed for bidirectional connection between HDMI and DVI-D devices. With a 6 mm diameter and black jacket, it provides a compact solution for connecting monitors, graphics cards and other display equipment while supporting resolutions up to 4K@60Hz.

Advantages

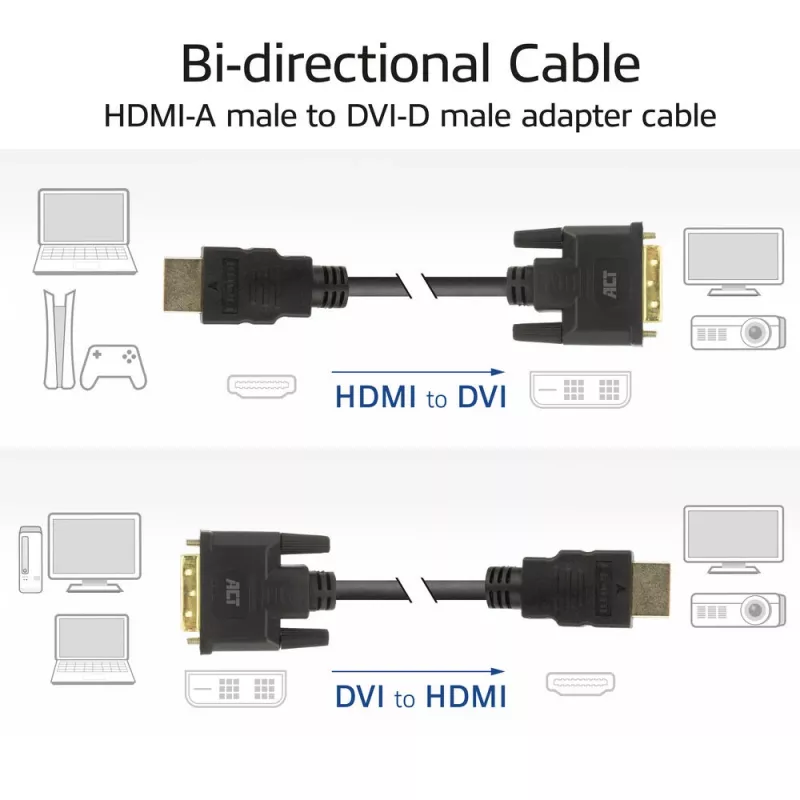

This adapter cable supports bidirectional signal conversion between HDMI and DVI-D, allowing HDMI sources to connect to DVI-D displays and vice versa. It uses full copper 30 AWG conductors and gold-plated connectors to ensure stable signal transmission and corrosion resistance. The cable’s 1 m length and slim 6 mm diameter make it easy to route in tight installations.

Suitable for

• Connecting HDMI-equipped laptops or media players to DVI-D monitors
• Connecting DVI-D graphics cards to HDMI displays or TVs
• Desktop setups where short, reliable video connections are needed

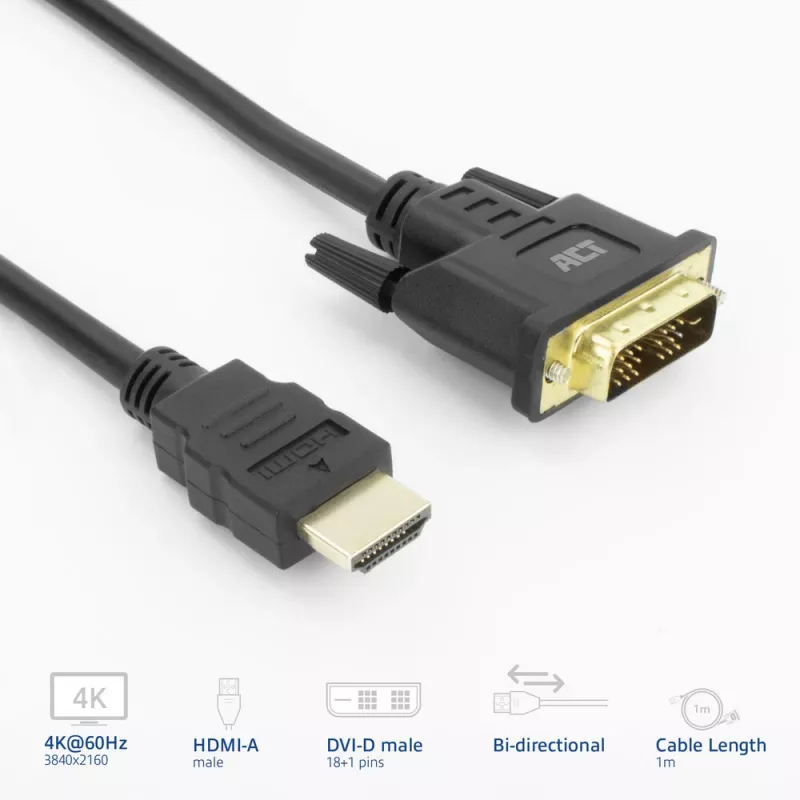

Key specifications

• Model: ACT AK3734
• Cable length: 1 m
• Connectors: HDMI Type A (Standard) ↔ DVI-D (18+1)

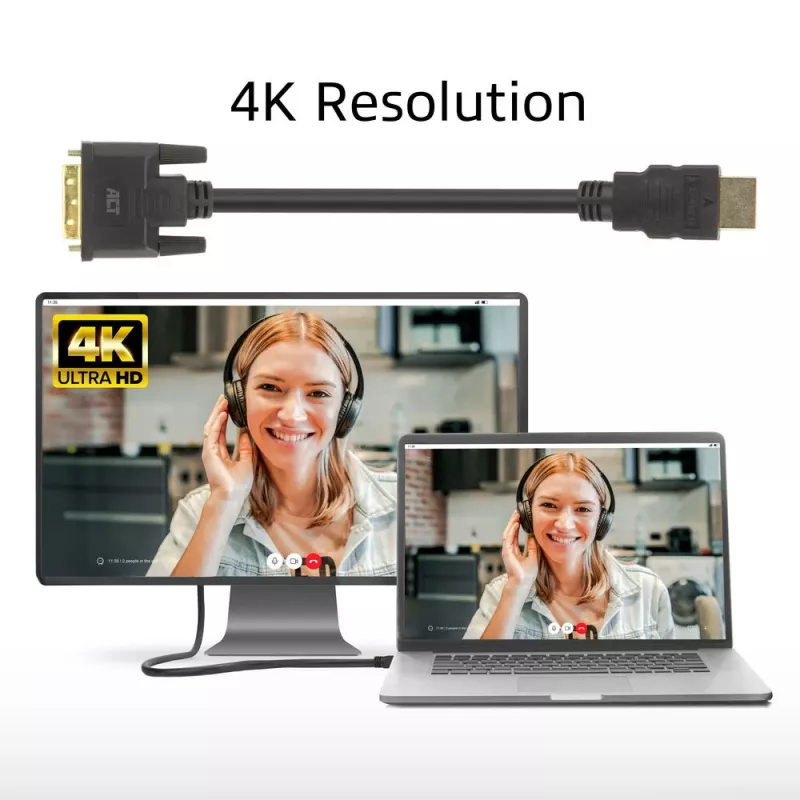

• Maximum resolution: 4K@60Hz
• Conductor: full copper, 30 AWG
• Connector plating: gold-plated
• Diameter: 6 mm
• Colour: Black

How to use

Connect the HDMI Type A end to the HDMI output of your source device and the DVI-D end to the DVI-D input of the display, or reverse the connection for the opposite direction. No drivers are required; the cable transmits digital video signals directly. Ensure both devices are powered and set the display resolution on the source device to a supported mode (up to 4K@60Hz if the display and source support it).

Recommendations

For optimal performance, avoid excessive bending near the connectors and keep cable length close to the required distance. When using 4K@60Hz, verify that both source and display support the resolution and corresponding pixel clock to ensure stable output.
