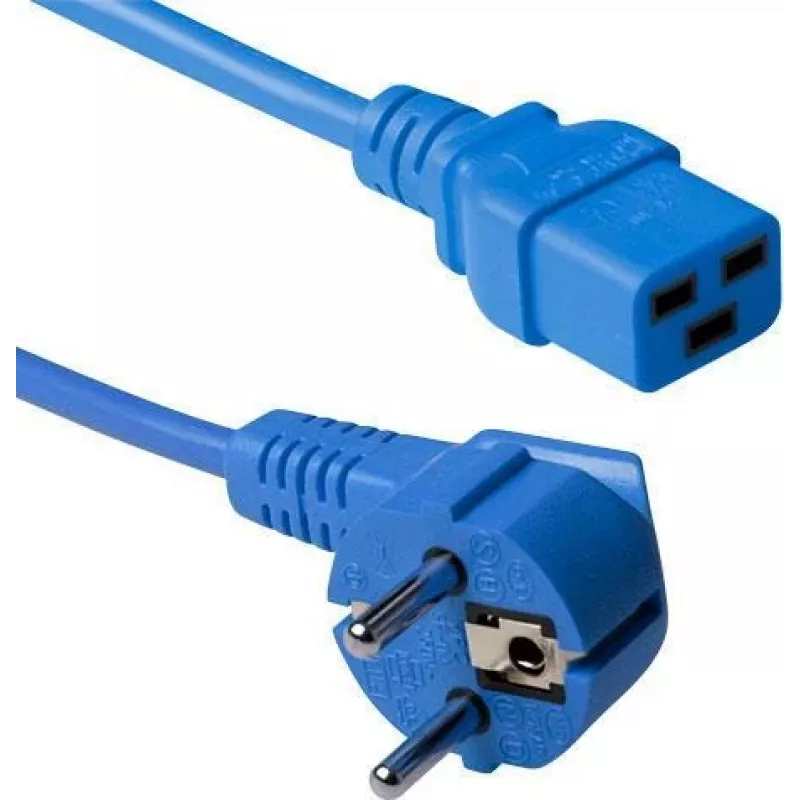

ACT 3m Angled Schuko to C19 Blue Power Cord 16A 250V AK5174

Deliver up to 16A at 250V to servers, PDUs, and high-power network hardware with this 3-metre blue power cord, built with a right-angled CEE 7/7 plug for tight rack spaces.

Overview

The ACT AK5174 is a heavy-duty mains power cable engineered for demanding IT environments. It connects a standard Schuko wall outlet (CEE 7/7, angled) to equipment with an IEC 60320 C19 inlet—commonly found on enterprise servers, blade chassis, large network switches, and power distribution units. The 3-metre length provides flexibility in rack layouts, while the blue PVC jacket aids quick identification among cable runs.

What stands out

• Right-angled Schuko plug saves space behind cabinets and reduces cable strain.
• 16A/250V rating supports high-power devices beyond typical 10A cords.
• 3 x 1.5 mm² copper conductors ensure low resistance and safe operation.
• Nickel-plated contacts resist corrosion for long-term reliability.
• RoHS compliant and PVC insulated for durability in office and data centre use.

Technical details

• Connector 1: CEE 7/7 (Schuko) male, angled
• Connector 2: IEC 60320 C19 male, straight
• Cable length: 3.00 m
• Colour: Blue
• Maximum current: 16 A
• Maximum voltage: 250 V AC
• Conductor material: Copper
• Conductor size: 3 x 1.5 mm²
• Jacket material: PVC
• Connector plating: Nickel
• Operating temperature: -10°C to 70°C
• Compliance: RoHS

Our verdict

A dependable, high-capacity power cord that solves space constraints with its angled plug and handles serious power loads—ideal for rack-mounted infrastructure.
