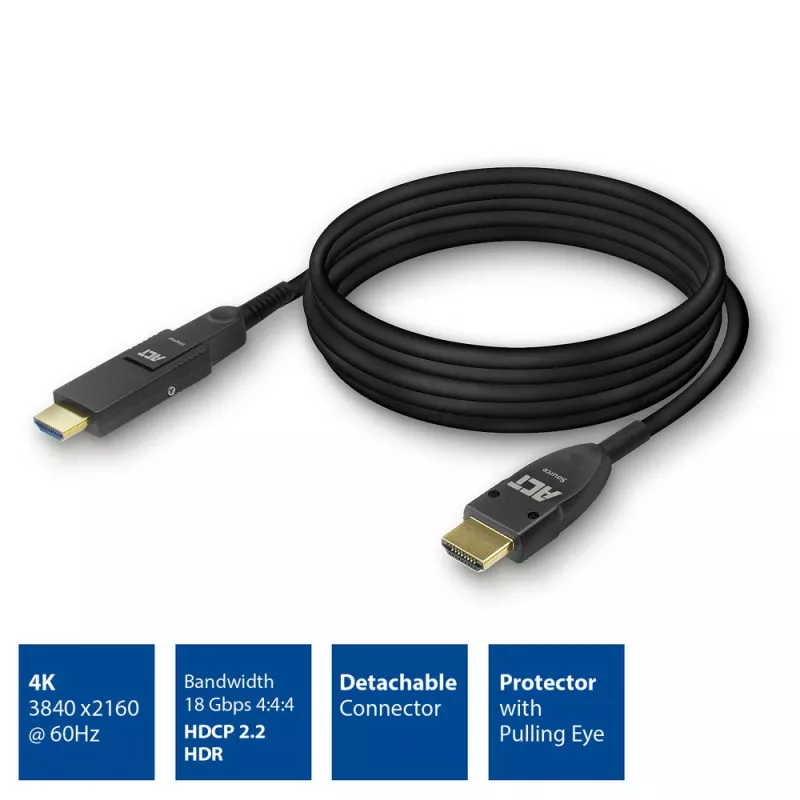

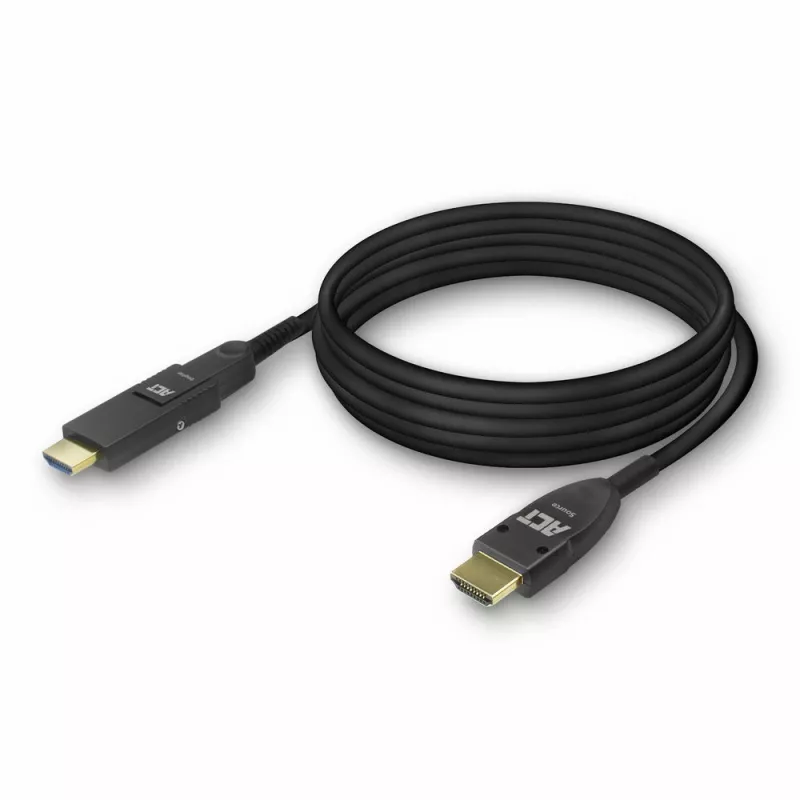

ACT 25 meters HDMI High Speed 4K Active Optical Cable with detachable connector v2.0 HDMI-A male - HDMI-A male

The ACT AOC 4K HDMI cable is made of copper and fiber to connect different devices over long distances up to 100 m without the loss of data. The Active Optical Cable has a bandwidth of 18Gbps 4:4:4 to handle the resolution of 3840x2160 (4K) @ 60Hz. The cable is supplied on a coil and comes with a detachable plug and protector with pulling eye for easy installation through conduits and plenum spaces. Additionally, the cable supports: HDR, HDCP 2.2, EDID, DDC, CEC, Multi-channel audio, Dolby True HD, DTS-HD Master Audio and ARC.

AOC: copper and glass for longer distances and the best video and audio quality
The AOC (Active Optical Cable) cable is made of copper and fiber for transferring 4K@60Hz over long distances up to 100m without data loss. It has a bandwidth of 18Gbps 4:4:4. The cable has a Kevlar protected fiber, an aluminium foiled shielding and is suitable for sensitive applications due to low RFI/EMI. The cable is supplied on a coil.

Resolution of 4K @ 60Hz
This HDMI 4K cable supports a resolution of 3840x2160 @ 60Hz. This resolution is compatible with: HDMI 2.0, HDMI 1.4a, HDMI 1.4, HDMI 1.3a and HDMI 1.3. Furthermore, the cable supports High Dynamic Range (HDR) video for expansive contrast ratio and color accuracy, HDCP 2.2, EDID, DDC, CEC, Multi-channel audio, Dolby True HD, DTS-HD Master Audio and ARC.

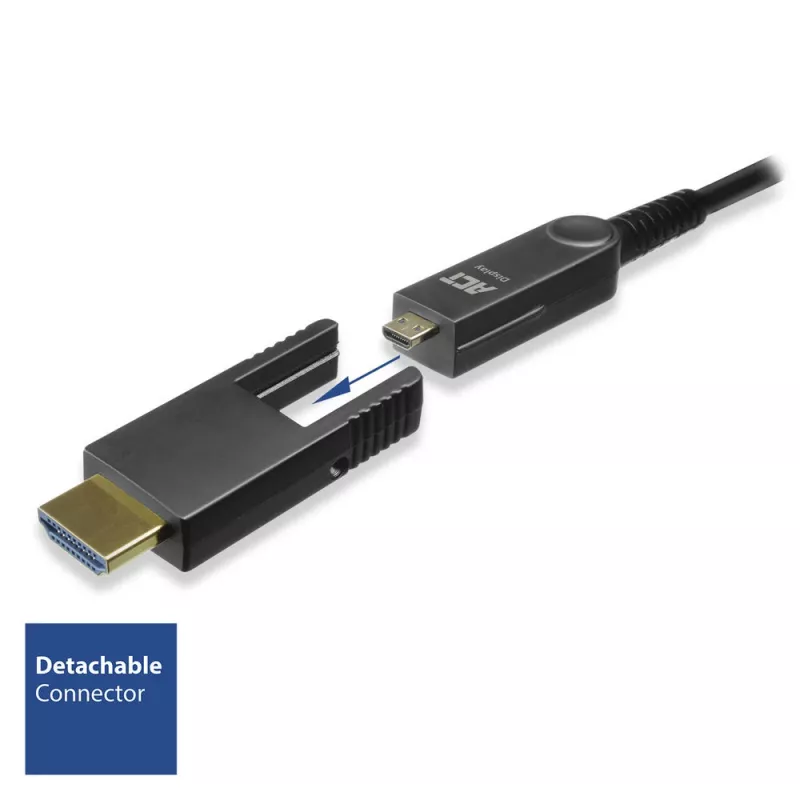

Ultra slim flexible cable with detachable connector for easy installation

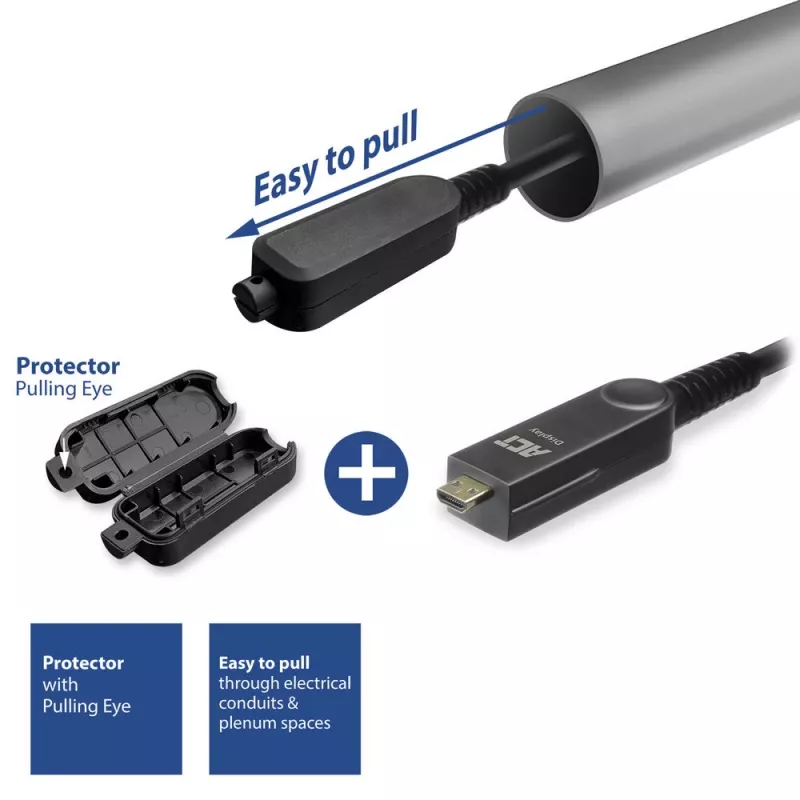

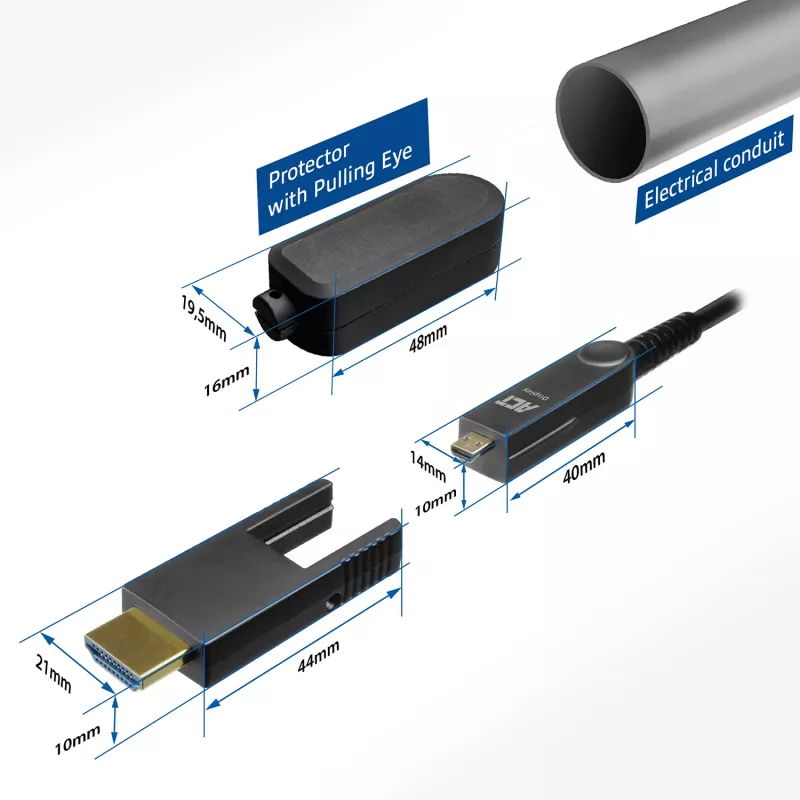

The flexible cable is ultra slim and can be easily pulled through narrow electrical conduits and plenum spaces. Just disconnect the detachable plug from the cable and wrap the protector with pulling eye around the cable. Pull the flexible cable through a conduit and remove the protector and reconnect the detachable plug to the cable.

Optional: connect an external power supply

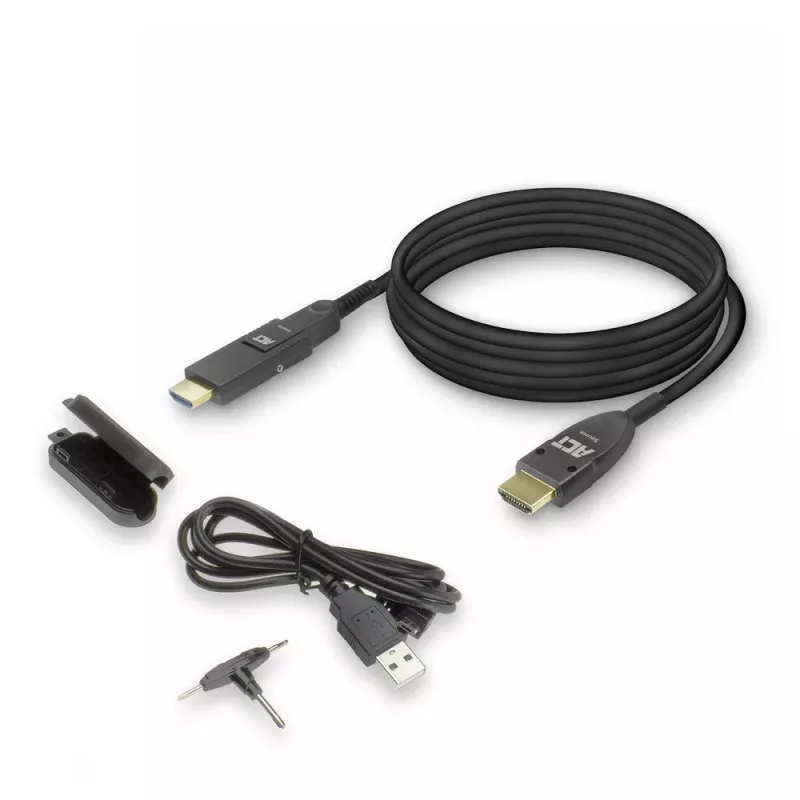

The AOC cable comes with a USB power cable for optionally connect an external 5V power supply. This is only required in cases when the HDMI port of the transmitter delivers insufficient power.

Additional features
It is important that the cable is connected correctly. The ACT AOC HDMI cable is marked to ensure easy identification of the source and display connector.

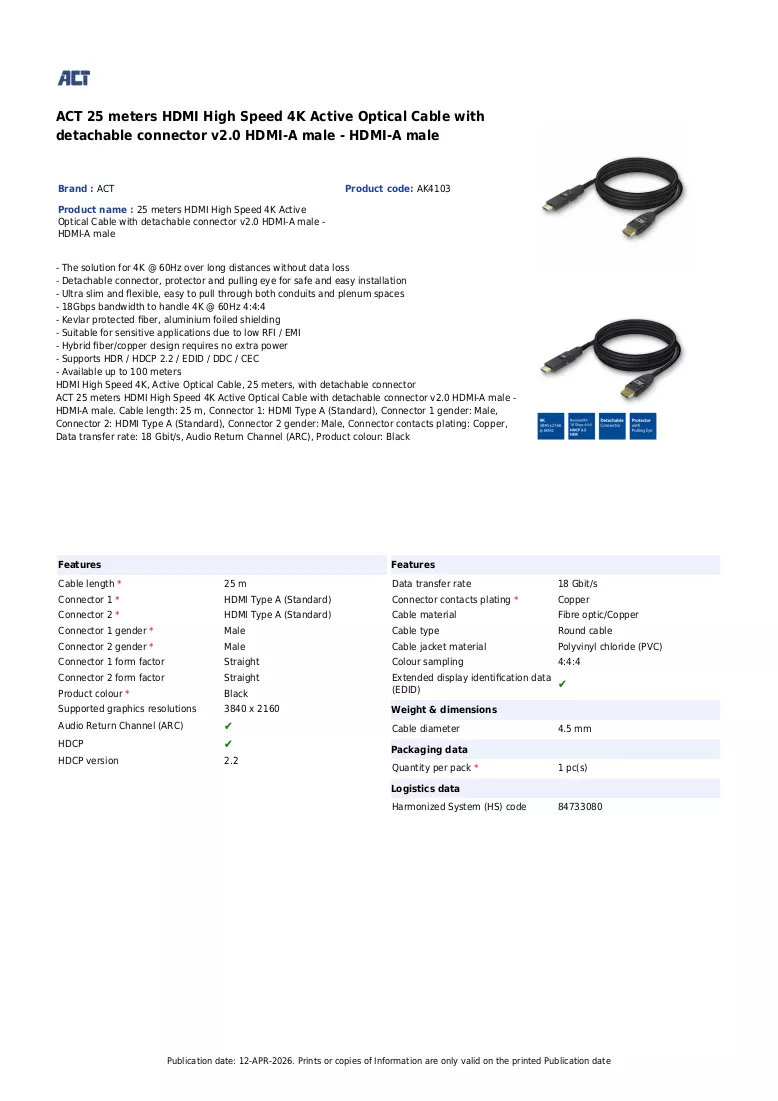

ACT 25 meters HDMI High Speed 4K Active Optical Cable with detachable connector v2.0 HDMI-A male - HDMI-A male. Cable length: 25 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Copper, Data transfer rate: 18 Gbit/s, Audio Return Channel (ARC), Product colour: Black

How to use

Disconnect the detachable plug and attach the protector with the pulling eye around the cable when routing through conduits. Pull the slim, flexible cable through the conduit, remove the protector and reconnect the detachable plug to the cable. Plug HDMI Type A connectors into the source and display devices. If the transmitter's HDMI port supplies insufficient power, connect the included USB power cable to an external 5V supply before use.

Recommendations

Ensure correct orientation by matching the source and display markings on the cable. For permanent installations, avoid sharp bends and keep the cable away from strong electromagnetic sources to preserve signal integrity.
