ACT 10 meters DisplayPort 1.4 Active Optical Cable 8K with detachable connector

The Active Optical Cable DisplayPort 1.4 ACT AK4150 10 meters is a slim, flexible DisplayPort AOC designed for reliable long-distance transmission of high-resolution video and multi-channel audio. With a 10 m length and a 4.5 mm diameter, the cable combines copper conductors and optical fiber to maintain signal integrity and a bandwidth of 32.4 Gbps (4:4:4). It supports up to 7680x4320 (8K) at 60 Hz and is supplied on a coil with a detachable connector to simplify installation through conduits and plenum spaces.

Advantages

The cable supports 8K @ 60Hz and HDR, ensuring high color accuracy and contrast for compatible displays. Its active optical construction (copper + fiber) reduces data loss over longer runs compared with pure copper cables and provides low RFI/EMI for use in sensitive environments. The ultra-slim 4.5 mm diameter and detachable plug allow easy routing through narrow conduits and confined installation spaces. The cable also supports HDCP 2.2, EDID, DDC, CEC, multi-channel audio, Dolby TrueHD, DTS-HD Master Audio and ARC for broad compatibility with modern AV equipment.

Suitable for

• Connecting PCs, workstations or media players to 8K-capable monitors and displays
• Home theater systems where long cable runs and high-resolution video are required
• Professional AV installations in studios, control rooms or conference spaces
• Routing through conduits, plenum spaces or cable trays where a detachable connector is needed

Key specifications

• Cable type: Active Optical Cable (copper + fiber)
• Interface: DisplayPort 1.4 to DisplayPort 1.4

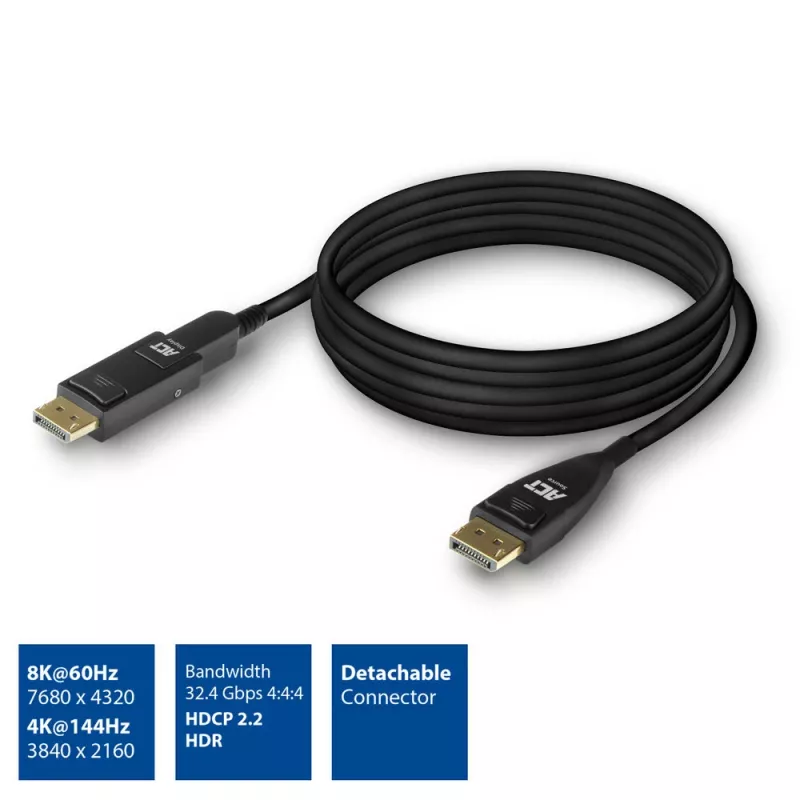

• Supported resolution: up to 7680 x 4320 (8K) @ 60 Hz
• Bandwidth: 32.4 Gbps (4:4:4)
• Length: 10 m

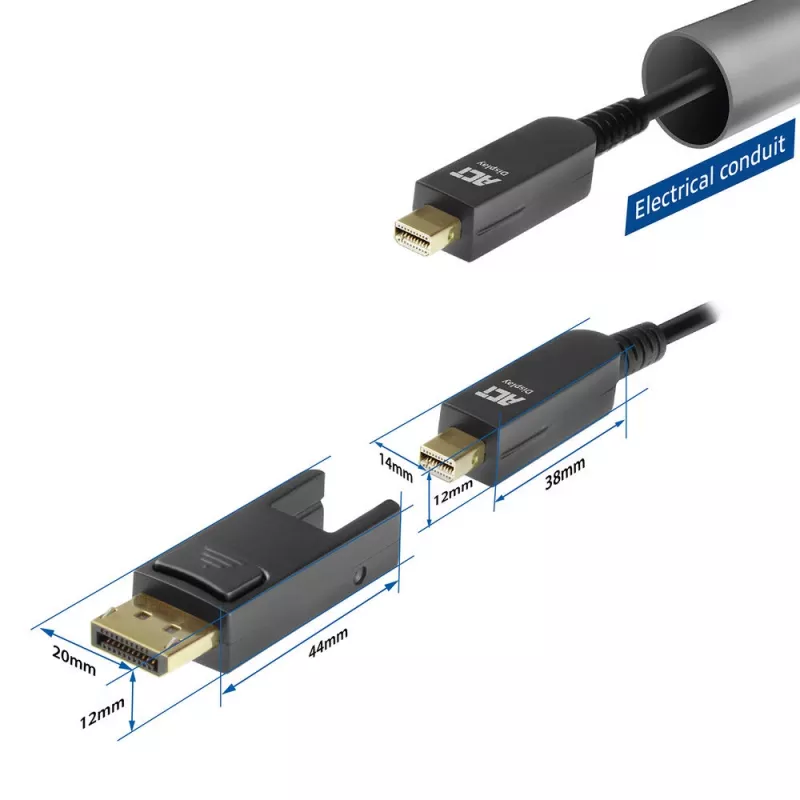

• Diameter: approximately 4.5 mm
• Construction highlights: Kevlar-protected fiber, aluminium foil shielding
• Audio and protocol support: multi-channel audio, Dolby TrueHD, DTS-HD Master Audio, ARC, HDCP 2.2, EDID, DDC, CEC
• Colour: Black

How to use

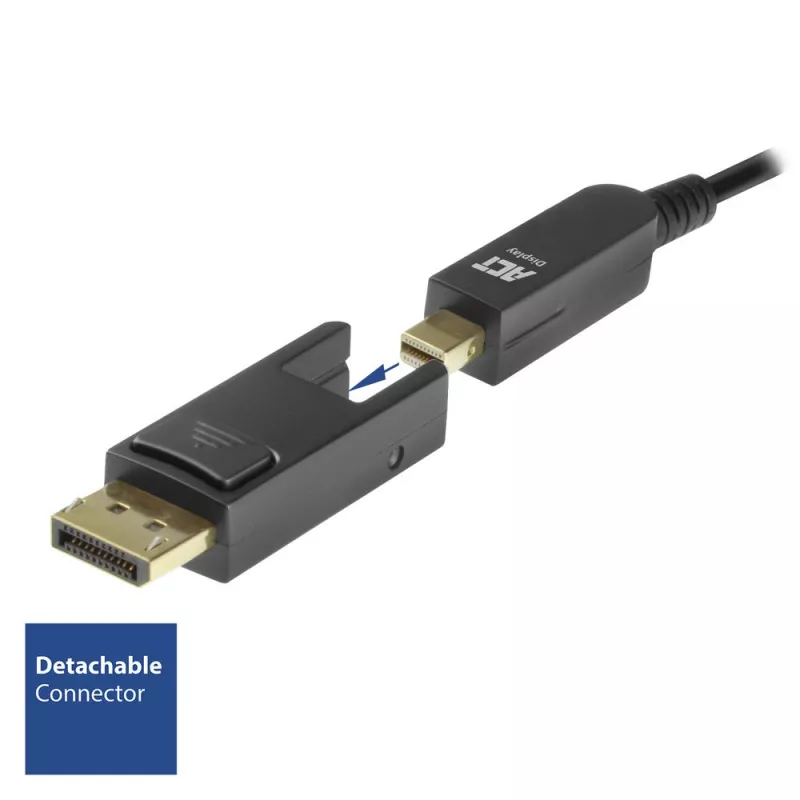

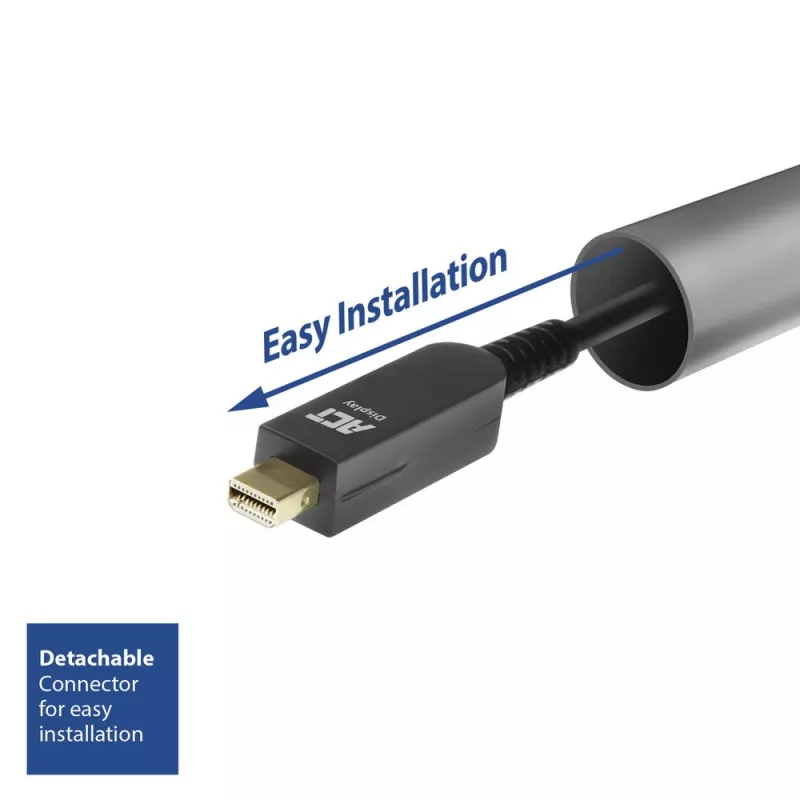

Disconnect the detachable plug from the cable head to feed the slim cable through conduits or plenum spaces. Once routed, reconnect the plug to the cable and attach the DisplayPort connectors to the source and the display. Ensure the cable is oriented according to the source/display markings to avoid reversed connections. Power on the source and display, then verify display settings to enable the desired resolution and HDR options if supported by both devices.

Recommendations

For optimal performance, use with devices and displays that support DisplayPort 1.4 features and HDCP 2.2. Avoid sharp bends and protect the detachable connector during installation. If you need runs longer than 10 m, verify certified AOC lengths for the required resolution and check installation space for proper routing.
