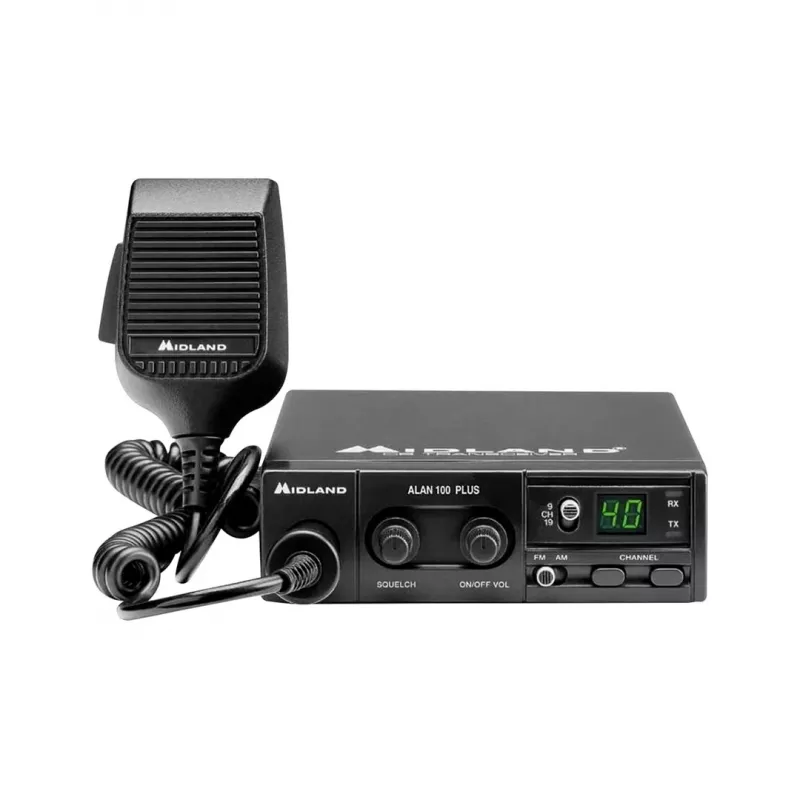

A-LAN Radio CB ALAN B PL 100+ Mobile CB Radio 40 Channels AM/FM

The A-LAN Radio CB ALAN B PL 100+ is a high-performance mobile CB radio designed for reliable communication on the 27 MHz band. With 40 channels covering AM and FM modulation, this radio delivers clear audio and robust performance for professional and recreational use. Its compact design and user-friendly controls make it an ideal choice for truckers, off-road enthusiasts, and emergency communication.

Advantages

This CB radio offers dual modulation (AM/FM) for versatile communication, a bright LED channel display for easy reading, and a manual squelch control to reduce background noise. The built-in Automatic Noise Limiter (ANL) further enhances signal clarity. The electret microphone with up/down channel selection allows convenient hands-free channel changes.

Suitable for

• Long-haul trucking and fleet communication
• Off-road and 4x4 expeditions
• Emergency and disaster response teams
• Amateur radio enthusiasts

Key specifications

• Number of Channels: 40 AM/FM
• Frequency Range: 26.965 - 27.405 MHz
• Output Power: 4 W (AM/FM)
• Modulation: AM / FM
• Power Supply: 13.8 V DC (nominal)
• Antenna Connector: SO-239 (UHF Female)
• Microphone: Electret with Up/Down channel selection
• Display: LED Channel Display
• Squelch: Manual
• ANL: Yes
• External Speaker Jack: Yes
• Audio Output Power: 2.0 W @ 8 Ohm
• Sensitivity (AM): 0.5 µV for 10 dB S/N
• Sensitivity (FM): 0.5 µV for 20 dB S/N
• Operating Temperature: -10°C to +55°C

Recommendations

For optimal performance, pair this radio with a high-quality antenna and a stable 13.8 V DC power source. Ensure proper grounding to minimize interference. This radio is not intended for handheld use; it is a mobile unit designed for vehicle installation.
