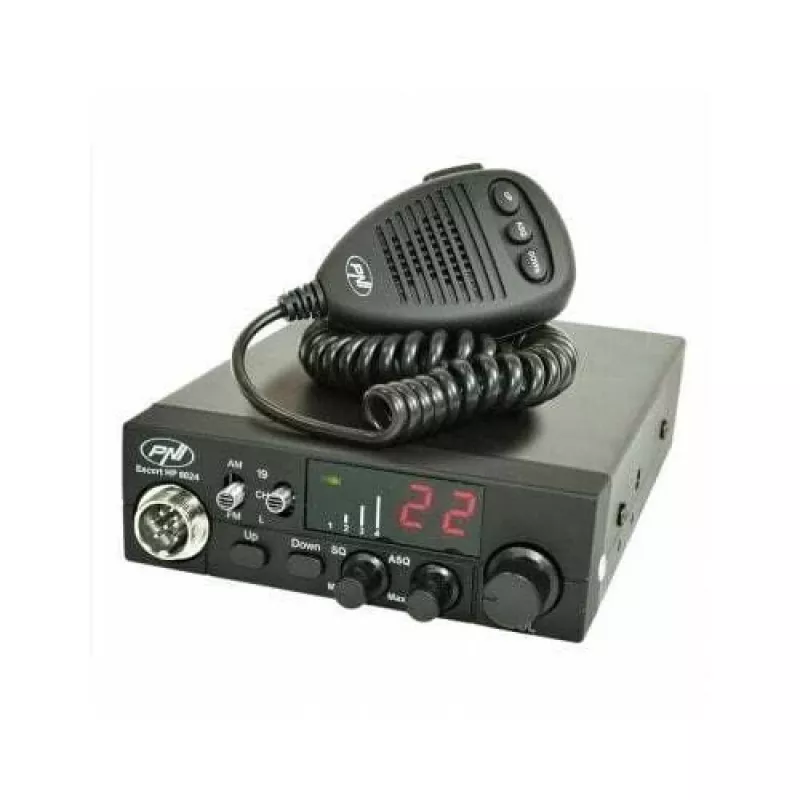

PNI HP-8024 ESCORT CB Radio AM/FM 12/24V

The PNI HP-8024 ESCORT is a professional mobile CB radio designed for reliable communication in vehicles operating on 12V or 24V electrical systems. With dual AM/FM modulation and 40 channels, it ensures clear and stable communication over long distances. The device features an LCD backlit display, automatic and manual squelch controls, and emergency channel access for safety.

Advantages

Dual voltage compatibility (12/24V) makes it suitable for cars, trucks, and heavy machinery. The combination of automatic and manual squelch allows for noise-free reception in various environments. Emergency channels 9 and 19 provide quick access to help when needed.

Suitable for

• Professional truck drivers and fleet operators
• Off-road and 4x4 enthusiasts
• Emergency services and security personnel
• Amateur radio operators requiring a reliable mobile unit

Key specifications

• Frequency Range: 26.965 - 27.405 MHz (CB band)
• Channels: 40 AM/FM
• Output Power: 4W (AM and FM)
• Power Input: 12V / 24V DC
• Antenna Impedance: 50 Ohm

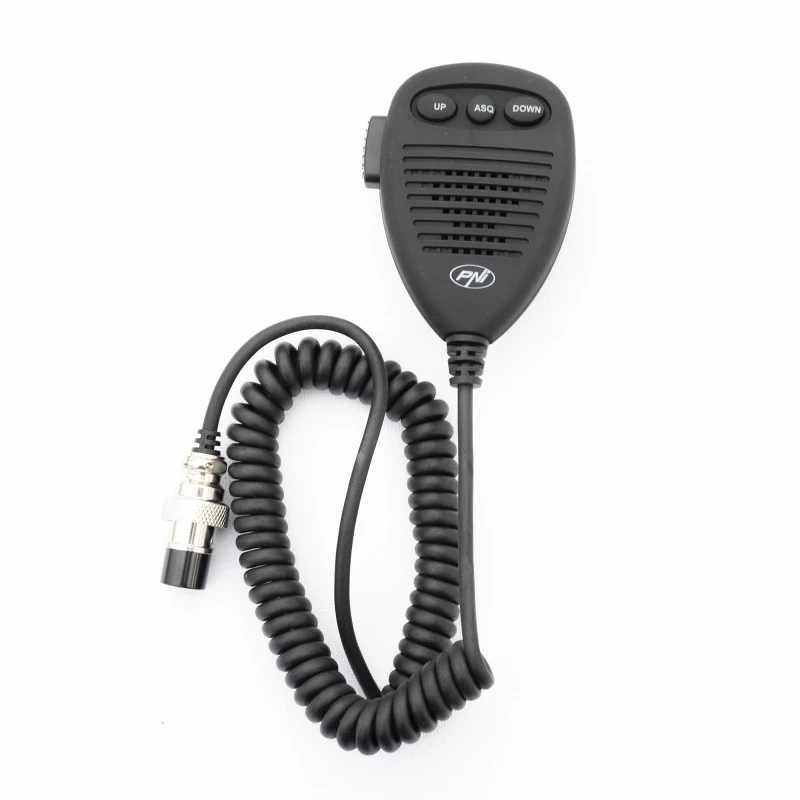

• Microphone Connector: 6-pin
• Display: LCD with backlight
• Squelch: Automatic (9 levels) and Manual (28 levels)
• Emergency Channels: 9 and 19
• Key Lock: Yes
• RF Gain Control: Yes
• Scan Function: Yes
• External Speaker Jack: Yes
• Audio Output Power: 2W into 8 Ohm
• Operating Temperature: -26°C to +60°C
• Mounting: DIN / Bracket

Recommendations

For optimal performance, use a high-quality CB antenna with 50 Ohm impedance and ensure proper grounding. The PNI HP-8024 ESCORT is a robust choice for both professional and recreational use.
