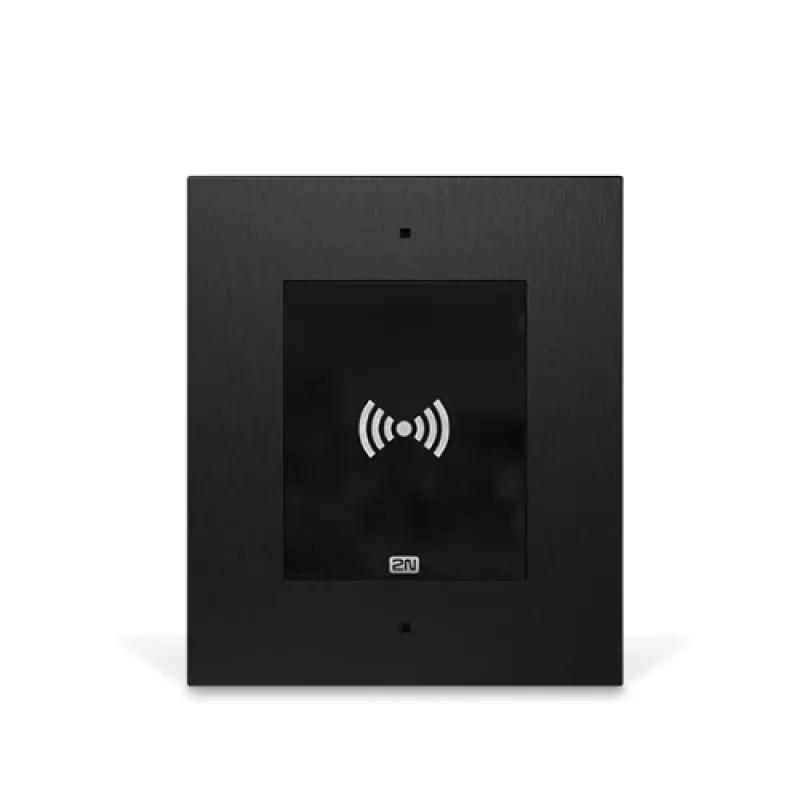

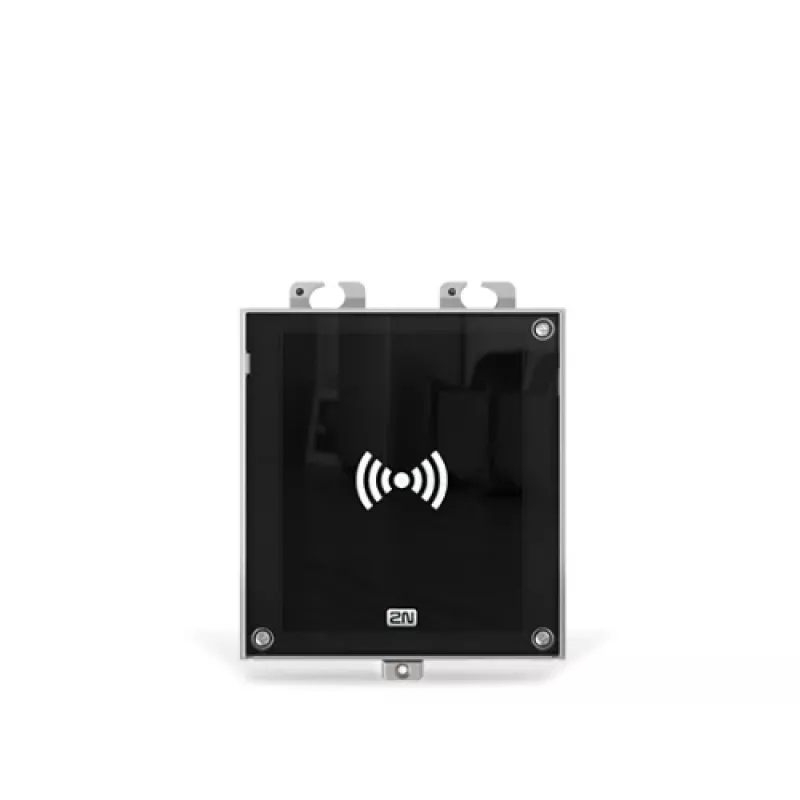

2N Access Unit 2.0 125kHz Card Reader (9160341)

2N Access Unit 2.0 125kHz Card Reader (9160341)
2N Access Unit 2.0 125kHz Card Reader (9160341)
2N Access Unit 2.0 125kHz Card Reader (9160341)
2N Access Unit 2.0 125kHz Card Reader (9160341)
2N Access Unit 2.0 125kHz Card Reader (9160341)
2N Access Unit 2.0 125kHz Card Reader (9160341)
R9,701
The 2N Access Unit 2.0 is a versatile IP-based access control reader designed for secure and convenient entry management. It supports 125kHz RFID technology, compatible with EM4100 and HID Prox cards, making it ideal for offices, commercial buildings, and industrial facilities. With Power over Ether... Read More
Stock Out Of StockNo Stock Code 2860789 Brand 2N Model 9160341 Warranty 2 Years

Shipping & Returns

The 2N Access Unit 2.0 is a versatile IP-based access control reader designed for secure and convenient entry management. It supports 125kHz RFID technology, compatible with EM4100 and HID Prox cards, making it ideal for offices, commercial buildings, and industrial facilities. With Power over Ethernet (PoE) support, installation is simplified, and the rugged IP54/IK07-rated housing ensures reliable operation in demanding environments.

Advantages

Easy integration with existing network infrastructure via Ethernet, Wiegand, or RS-485 interfaces. The built-in web interface and 2N Access Commander software provide flexible management. The tamper switch enhances security, and the internal speaker offers audible status feedback.

Suitable for

  • Office buildings requiring secure employee access
  • Industrial sites needing durable, weather-resistant readers
  • Integration with third-party access control systems

Key specifications

  • Reader Technology: 125kHz RFID (EM4100, HID Prox)
  • Connectivity: Ethernet 10/100BASE-TX, Wiegand, RS-485
  • Power: PoE 802.3af or 12V DC / 2A
  • Operating Temperature: -40°C to +60°C
  • Protection: IP54, IK07
  • Relay Output: 1x NO/NC (max 30V/1A)
  • Digital Inputs: 2x passive/active
  • Dimensions: 107 x 83 x 28 mm
  • Weight: 0.3 kg

Recommendations

For flush mounting, use the optional 2N Access Unit flush-mount box. Ensure PoE switch or injector is available for simplified cabling.

Specifications
Active tampering alarm
Yes
Alarm input channels
2
Alarm output channels
1
Brand
2N
Category
Access Control Readers
Depth
28 mm
EAN
8595159515083
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
Height
107 mm
Housing material
High-strength plastic, aluminum frame
IK code
IK07
Input current
2 A
Input voltage
12 V
International Protection (IP) code
IP54
Model
Access Unit 2.0
MPN
9160341
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-40 - 60 °C
Package weight
0.3 kg
Power over Ethernet (PoE)
Yes
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 60 °C
Supported network protocols
SIP, DHCP, NTP, TFTP, HTTP, HTTPS, TR-069, RTSP, RTP, SRTP, SIPS, DNS, LDAP, SNMP, Wiegand, RS-485
Type
Card Reader
Weight
0.14 kg
Width
83 mm
