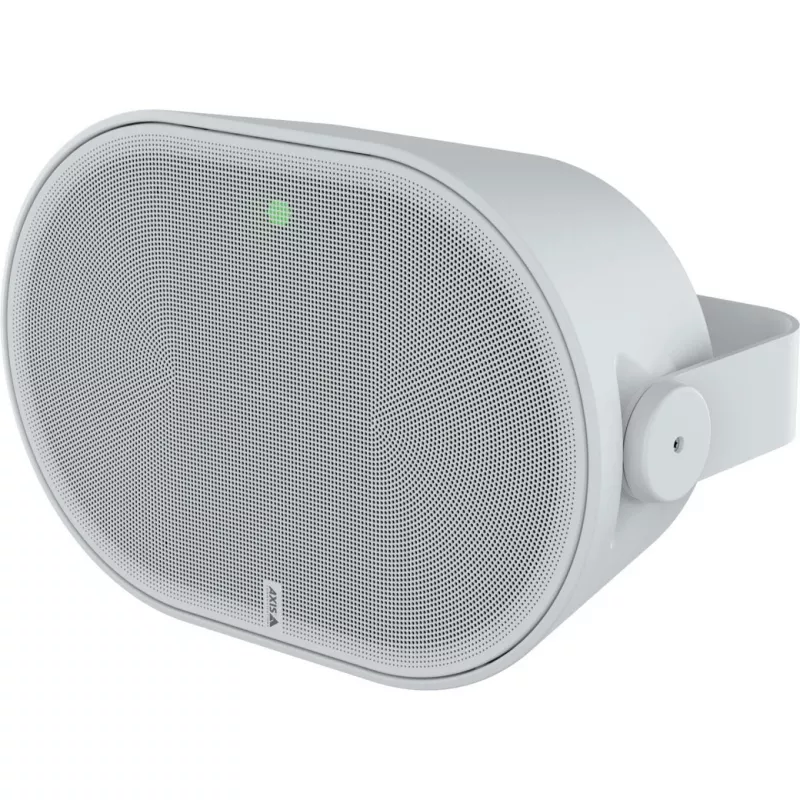

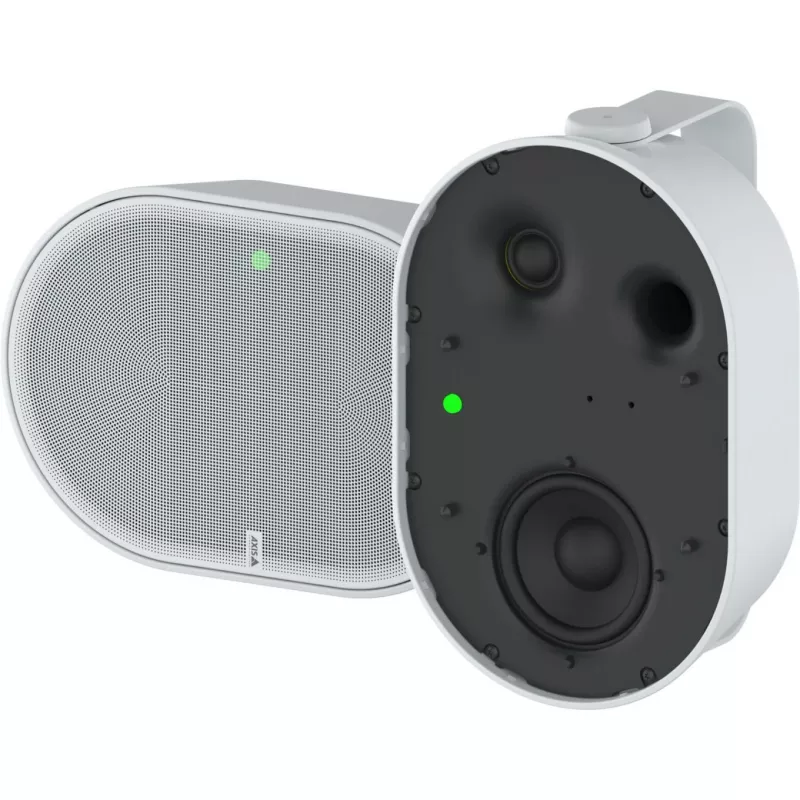

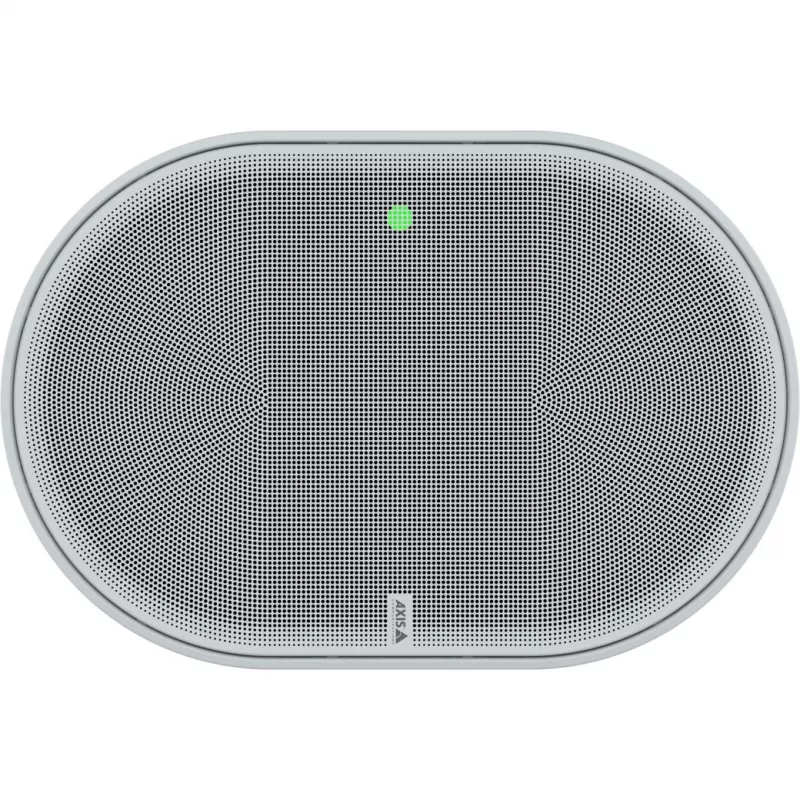

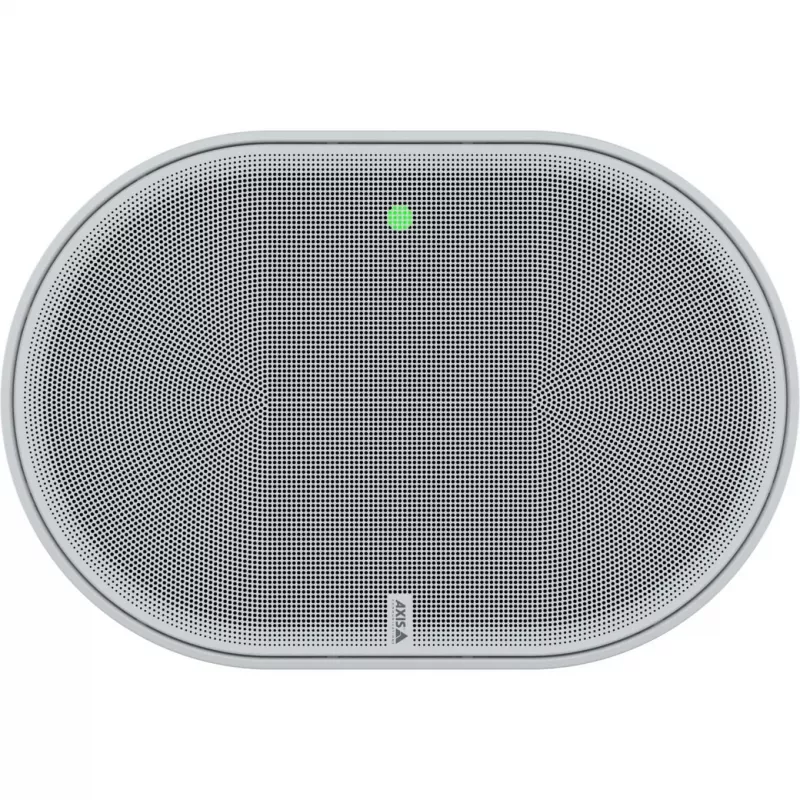

2-way Loudspeaker Axis C1110-E White Wired Intercom System

The AXIS C1110-E Network Cabinet Speaker is a 2-way wired loudspeaker designed for clear live and prerecorded voice announcements, two-way intercom communication, background music, and audio messaging in business and security environments. The all-in-one unit combines speaker, amplifier, microphone and software in a compact cabinet suitable for wall, ceiling or pole mounting indoors and in semi-protected outdoor locations. It is available in white and supports Power over Ethernet (PoE) for both power and network connectivity.

Advantages

This network speaker integrates hardware and software in a single cost-effective device, including a built-in microphone with full duplex and echo cancellation for two-way audio and remote health testing. AXIS Audio Manager Edge is built into the unit for scheduling, user permissions and zone configuration, and it can be coordinated across sites using AXIS Audio Manager Center. A preconfigured digital signal processor (DSP) provides clear voice and balanced background music with enhanced bass, while flexible zoning and content prioritization ensure messages reach the right areas. The all-in-one design eliminates the need for external amplifiers and separate audio cabling.

Suitable for

• Two-way intercom and VoIP/SIP communication
• Live, scheduled or event-triggered voice announcements
• Background music in commercial spaces
• Security and asset protection audio messaging
• Multi-site audio coordination and zone-based paging

Key specifications

• Brand: AXIS
• Model: C1110-E (MPN 02695-001, EAN 7331021081918)
• Type: 2-way wired loudspeaker with integrated microphone
• Frequency range: 60–20000 Hz
• Color: White (also available in black)
• Connectivity: Network (Power over Ethernet)
• Built-in software: AXIS Audio Manager Edge (with multisite management via AXIS Audio Manager Center)

How to use

Connect the speaker to the network using a single Ethernet cable that supplies both power and data via PoE. Integrate the unit with your VMS, VoIP/SIP systems, or analytics platforms as required. Use the built-in AXIS Audio Manager Edge to upload audio content, schedule playback, set user permissions and configure audio zones. For two-way communication, use the built-in microphone and configure full duplex and echo cancellation settings in the device interface. For multisite setups, deploy AXIS Audio Manager Center to coordinate content across locations.

Recommendations

Install the speaker in a protected or semi-protected location (for example, under eaves) when used outdoors. Use PoE-compliant switches or injectors that meet the device power requirements, and test audio zones and network bandwidth before full deployment to ensure reliable message delivery and sound quality.
