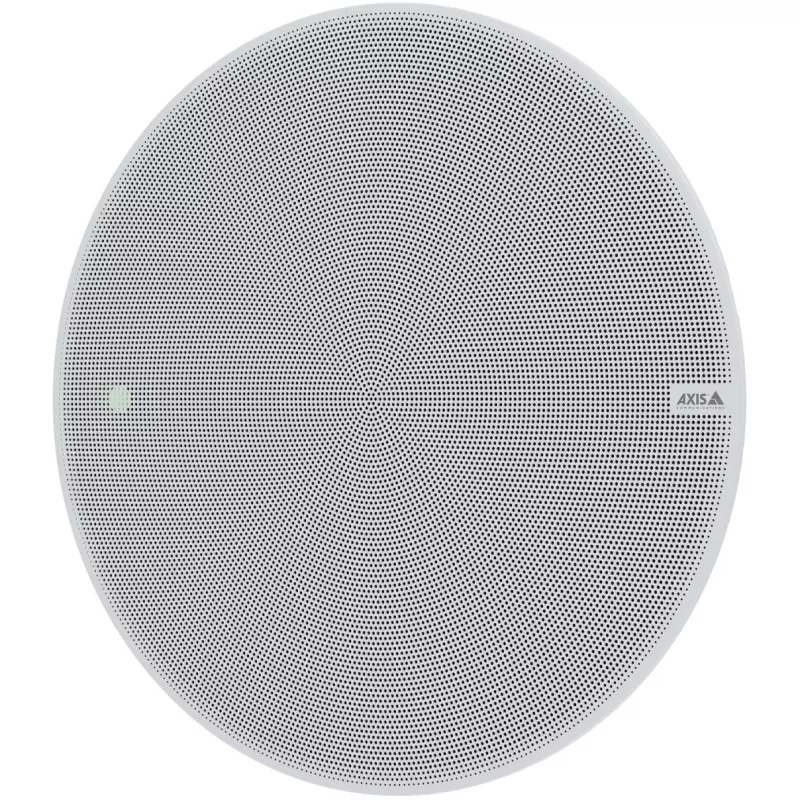

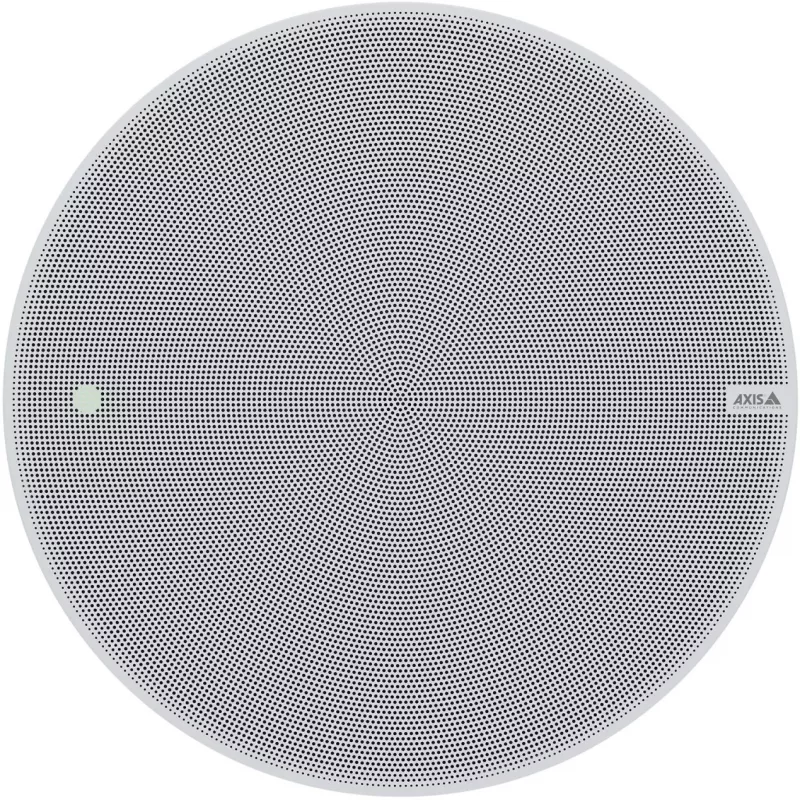

Speakerphone Axis 02324-001, Wired, 150 mm

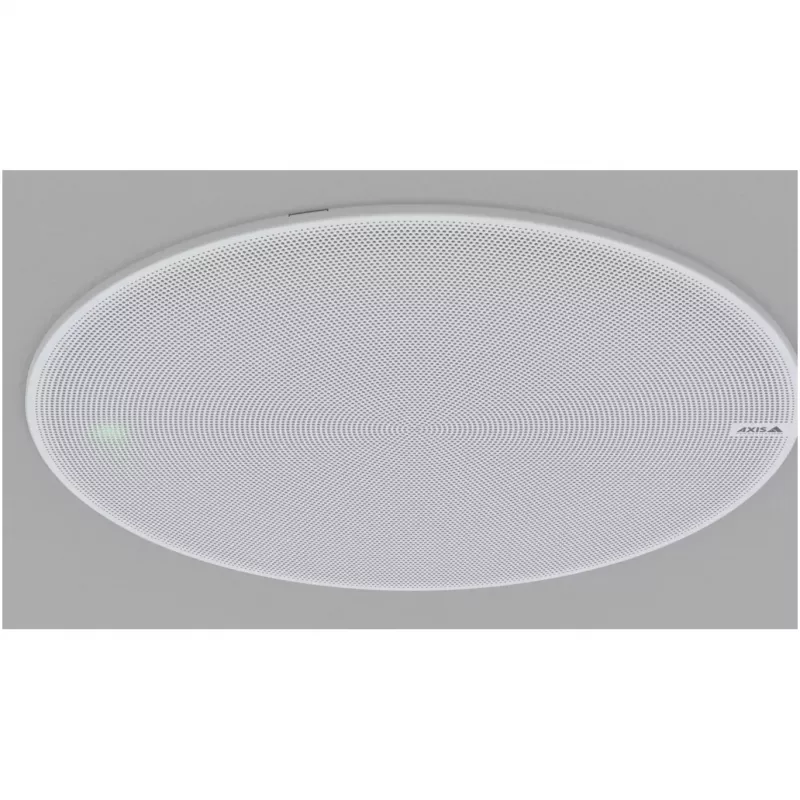

AXIS C1210-E is an all-in-one wired speaker system designed for voice announcements and background music. It uses a single network cable for both power (PoE) and data, supports recessed ceiling installation for discreet indoor mounting and can be installed in protected outdoor areas such as under eaves. The unit includes a plenum-rated backbox and integrates with video management systems (VMS), VoIP telephony, analytics and other network services. A preconfigured digital signal processor (DSP) ensures clear voice reproduction, and a built-in microphone enables remote health testing and two-way audio.

Advantages

The speaker delivers clear voice announcements thanks to the integrated DSP and microphone, while PoE simplifies installation by combining power and connectivity in one cable. The recessed design and plenum backbox support code-compliant ceiling mounting, and native network integration enables use with VMS, VoIP and analytics for centralized audio management.

Suitable for

• Voice paging and public address in retail, offices and schools
• Background music in lobbies and corridors
• Integration with VMS and VoIP telephony systems
• Protected outdoor zones such as covered entrances and eaves

Key specifications

• Connectivity technology: Wired (PoE)

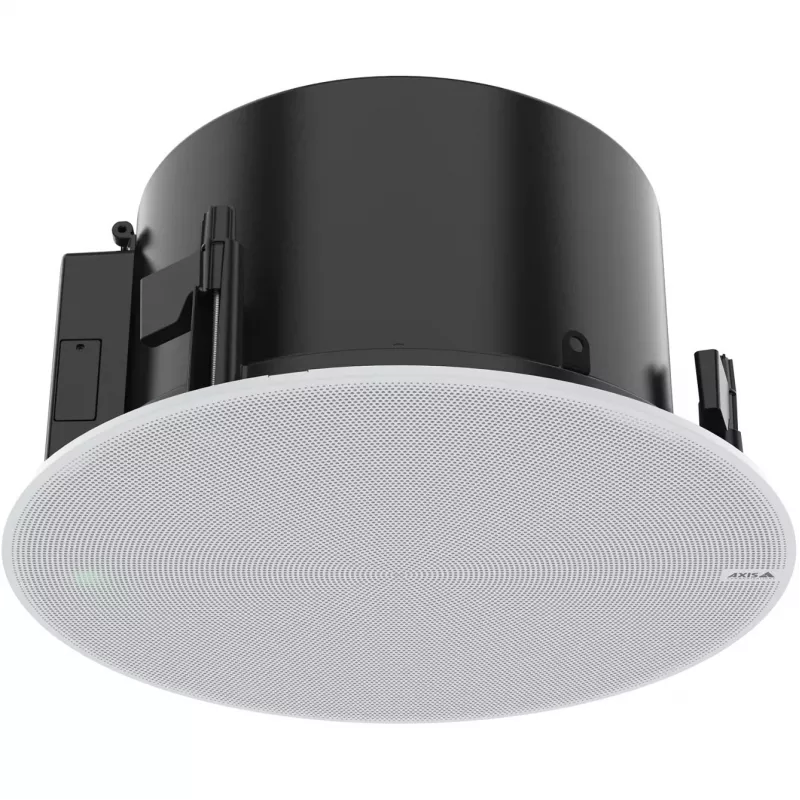

• Form factor: Recessed ceiling speaker with plenum-rated backbox
• Built-in features: Microphone, DSP, two-way audio
• Colour: White
• Brand: AXIS, MPN: 02324-001, EAN: 7331021075900
• Weight: 3.1 kg; Diameter/height reference: 150 mm

How to use

Install the speaker in a ceiling cavity using the included backbox and wiring. Connect a single Ethernet cable to provide both PoE power and network connectivity. Configure the device through its web interface or your network management software, integrate with VMS or VoIP systems if required, and assign zones, users and schedules using the embedded audio management software. Use the built-in microphone to perform remote health tests and verify two-way audio operation.

Recommendations

For reliable voice coverage, position units to avoid obstructions and follow local building codes for plenum installations. Use PoE-capable switches and test integration with VMS or VoIP systems during commissioning to ensure correct audio routing and scheduling.
