19 inch LCD KVM Console DIGITUS DS-72211-5US, 16-Port Cat 5, 1366x768, US International Keyboard

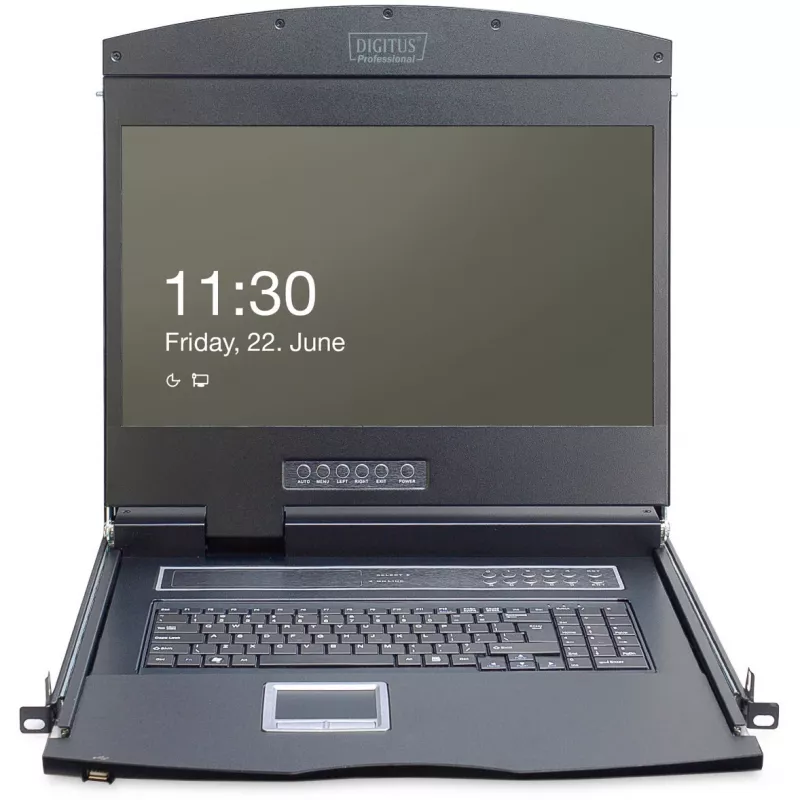

Modular 19" LCD KVM console DIGITUS DS-72211-5US combines a 48.3 cm (19") TFT display, 16-port Cat.5 KVM switch, US International keyboard and integrated touchpad in a space-saving 1U rack housing. The console is designed for data centers and server rooms to simplify server farm administration, save rack space and provide a flexible, upgradeable solution for controlling up to 16 servers.

Advantages

The modular design lets you configure and expand the console according to the application, ensuring long-term adaptability and simple upgrades. The 19" TFT with anti-reflective, shatter-resistant protective glass delivers a clear 1366×768 image with 1000:1 contrast and support for 16.7 million colours. Integrated 16-port Cat.5 KVM switching, US International keyboard and a touchpad with two function keys provide compact, all-in-one control. The unit fits a standard 1U rack and includes safety locking to prevent damage.

Suitable for

• Data centers and server rooms
• Rack-based network and system administration
• Environments requiring compact, modular rack consoles

Key specifications

• Model: DIGITUS DS-72211-5US
• Display: 48.3 cm (19") TFT, 1366×768 pixels
• Contrast ratio: 1000:1
• Colours: 16.7 million

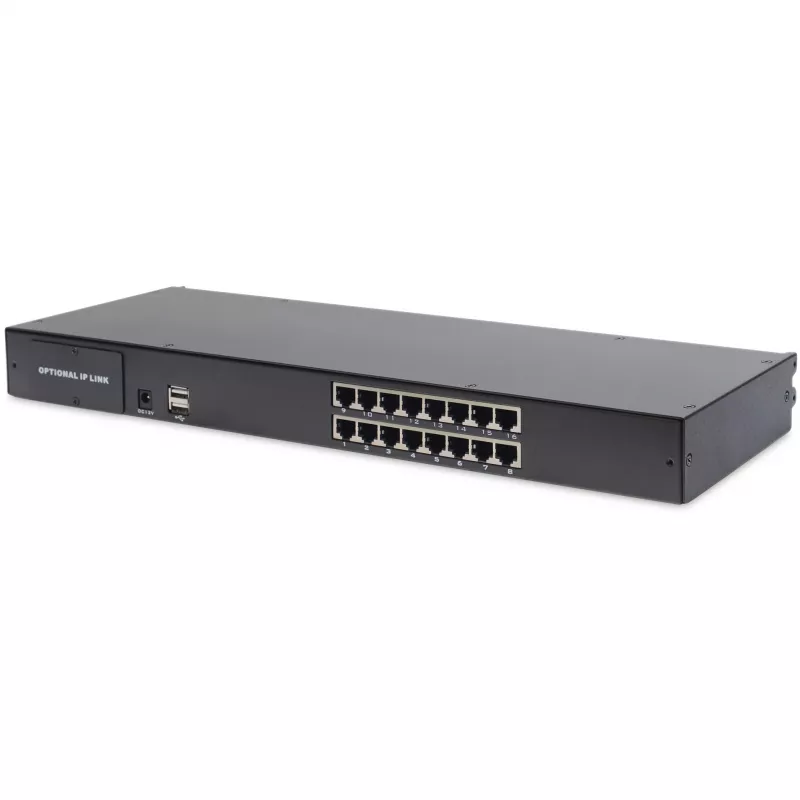

• KVM: 16-port Cat.5 switch (16 x Cat.5 dongle included)
• Keyboard: US International layout
• Pointing device: integrated touchpad with two function keys
• Rack mount: 1U
• Housing colour: black (RAL 9005)
• Gross weight: approx. 19.15 kg (product data lists 18.6 kg net weight)

How to use

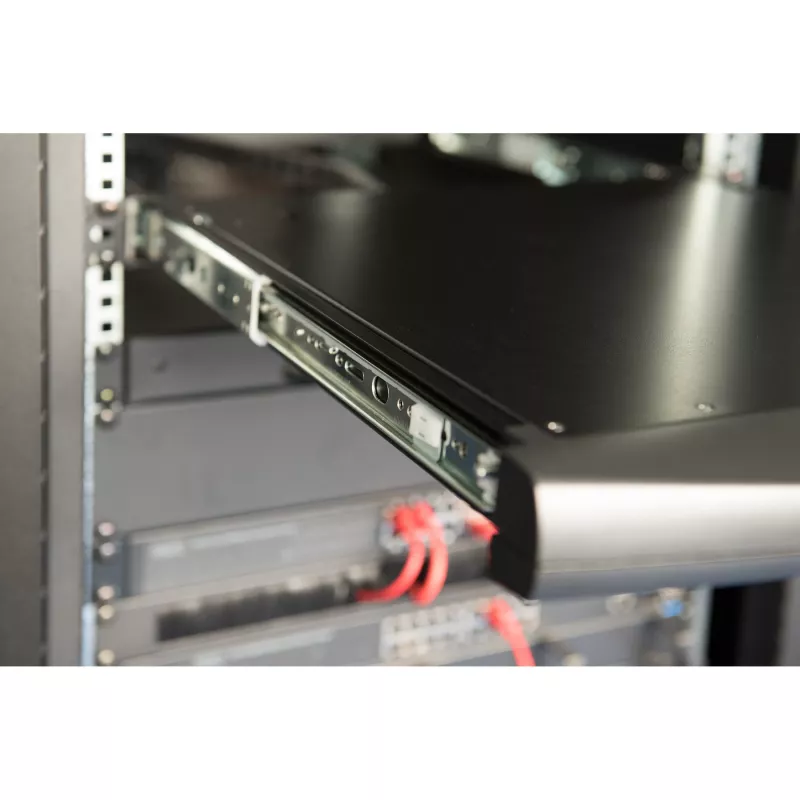

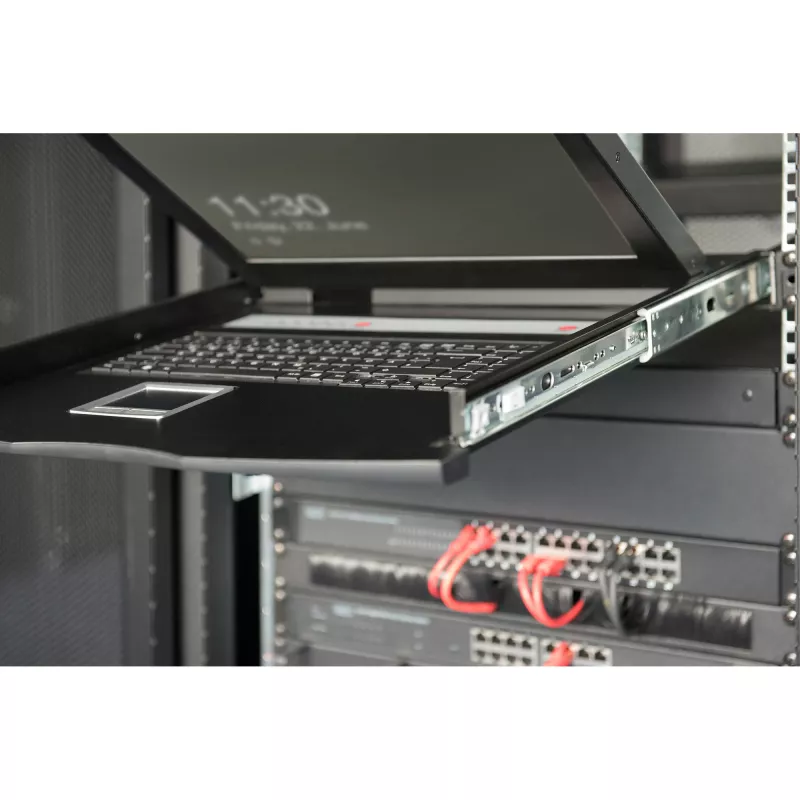

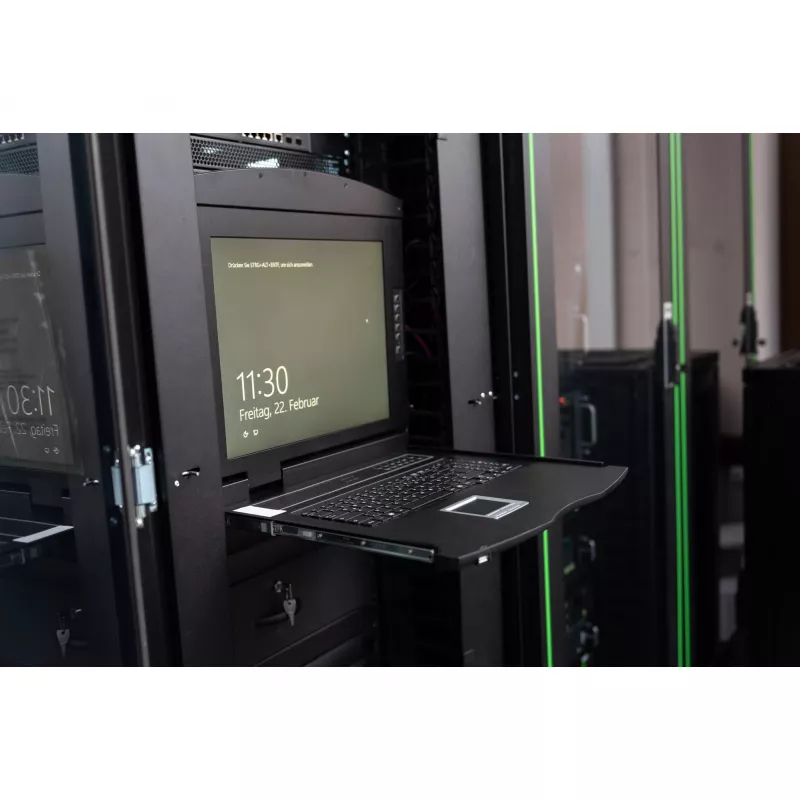

Install the console in a standard 19" server rack using the 1U mounting provisions. Connect the Cat.5 cables from the included dongles to the target servers and attach the console to power and video sources as required. Use the KVM switch to select and control up to 16 connected servers via the integrated US International keyboard and touchpad. The TFT screen can be fully extracted from the cabinet and tilted up to 120° for comfortable viewing and access.

Recommendations

Position the console at an accessible rack height for routine administration and ensure proper ventilation in the rack. Use Cat.5 cables in good condition and secure the safety lock during transport or when not in use to prevent mechanical damage.
