Zebra ZQ63-RUWAE14-00 label printer Direct thermal 203 x 203 DPI 115 mm/sec Wired & Wireless Wi-Fi Bluetooth

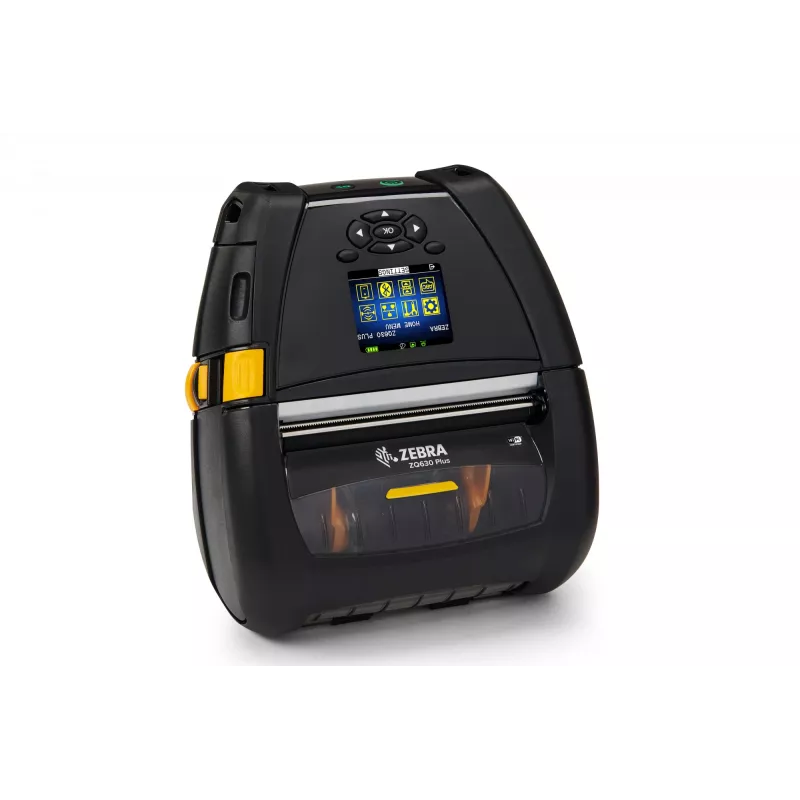

The Zebra ZQ63-RUWAE14-00 is a mobile direct-thermal label printer from Zebra’s ZQ600 Plus Series designed for on-the-spot printing and RFID encoding. It prints at 203 x 203 dpi with a maximum speed of 115 mm/s and supports media up to 112 mm wide. The unit includes Wi‑Fi and Bluetooth connectivity, a high-capacity 6600 mAh Lithium‑Ion battery for long shifts, and a color display for clear status information. Zebra’s Link-OS and Print DNA tools simplify integration, management and security for field and retail operations.

Advantages

The ZQ63-RUWAE14-00 combines mobile RFID encoding and direct thermal printing in a compact handheld form factor, reducing errors and saving time by enabling printing and encoding at the point of need. A large color display provides immediate status feedback, while advanced battery technology with 6600 mAh capacity supports extended use. Instant wake-up over Wi‑Fi or Bluetooth improves responsiveness, and Link-OS with Print DNA offers centralized management and developer tools for easier deployment and maintenance.

Suitable for

• Retail price labeling and markdowns
• Warehouse pick, pack and shipping labels
• Inventory management and cycle counting
• Field service ticketing and asset tagging with RFID

Key specifications

• Print technology: Direct thermal
• Resolution: 203 x 203 dpi
• Maximum print speed: 115 mm/sec
• Maximum media width supported: 112 mm (usable print width 104 mm)
• Connectivity: Wi‑Fi, Bluetooth (wired Ethernet LAN not included)
• Battery: Lithium‑Ion, 6600 mAh
• Weight: 1.1 kg
• Color: Black
• Model/MPN: ZQ63-RUWAE14-00

How to use

Install thermal label media according to the printer’s media loading procedure and ensure RFID labels or tags are aligned correctly for encoding. Power on the printer and connect via Wi‑Fi or Bluetooth to your POS, mobile device or host system. Use Zebra’s Print DNA utilities or your existing print drivers to configure print parameters such as darkness, speed and label size. Monitor status and battery level on the color display and replace or charge the battery when indicated.

Recommendations

For reliable RFID encoding and print quality, use media and RFID inlays recommended by Zebra. Keep firmware and Print DNA utilities up to date to ensure compatibility and security. Charge the 6600 mAh battery before long shifts and store the printer in a dry, dust-free environment when not in use.
