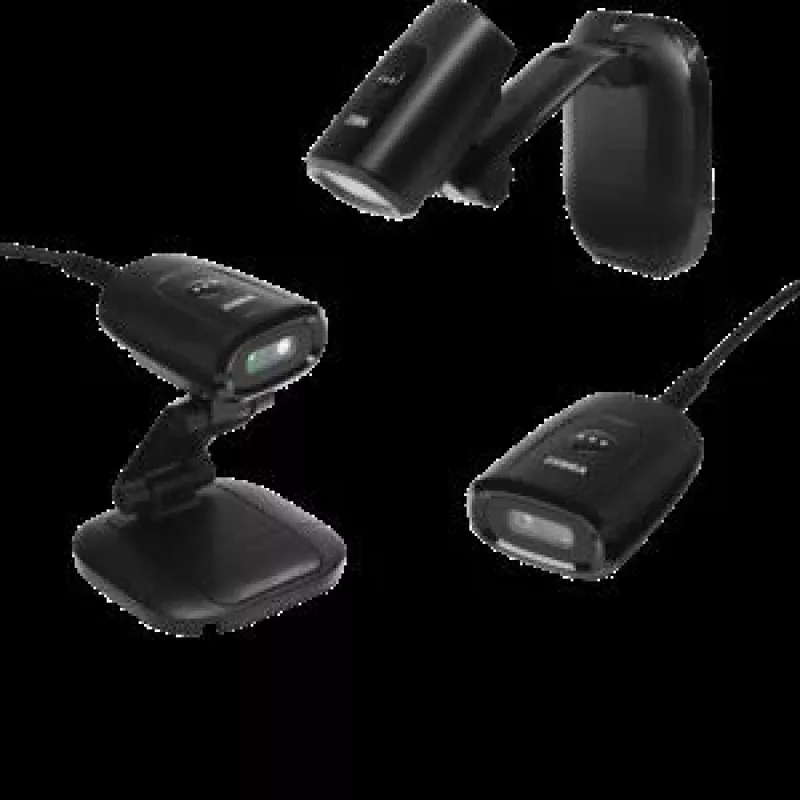

Zebra DS5502-SR Black with Multi-Mount USB KIT DS5502-SR40004ZZWW Scanner - Barcode-Scanner

With a 1280 x 800 pixel imager and a 48° horizontal field of view, the Zebra DS5502-SR captures 1D and 2D barcodes with exceptional speed and precision, even on curved or reflective surfaces. This fixed-mount scanner is built for high-throughput environments, combining rugged durability with flexible mounting options.

Overview

The DS5502-SR is a fixed-mount area imager designed for unattended scanning in kiosks, self-service stations, and assembly lines. Its standard range decoding engine handles a wide variety of symbologies, including QR Code, Data Matrix, PDF417, and Aztec. The scanner connects via USB and is powered directly from the host, simplifying installation. The included multi-mount allows for secure positioning at optimal angles, while the IP54-rated housing protects against dust and water splashes.

What stands out

• High-resolution 1280 x 800 imager for fast, accurate scanning
• Wide 48° horizontal field of view reduces the need for precise alignment
• Rugged design with IP54 sealing and 1.5 m drop resistance
• Versatile USB interface with HID Keyboard, COM Port Emulation, and SNAPI support
• Multi-mount included for easy integration into fixed installations

Technical details

• Scanner type: Fixed-mount area imager
• Scan capability: 1D, 2D, PDF417, QR Code, Data Matrix, Aztec
• Connectivity: USB
• Colour: Black
• Kit contents: DS5502-SR scanner, multi-mount, USB cable
• Imager resolution: 1280 x 800 pixels
• Light source: Red laser aiming pattern, red LED illumination (660 nm)
• Field of view: Horizontal 48°, vertical 30.7°
• Minimum print contrast: 25%
• IP rating: IP54
• Drop specification: Withstands multiple 1.5 m drops to concrete
• Operating temperature: -20°C to 50°C
• Storage temperature: -40°C to 70°C
• Humidity: 5% to 95% non-condensing
• Host interfaces: USB HID Keyboard, COM Port Emulation, SNAPI
• Power source: Host power via USB
• Indicators: Beeper, LED
• Mounting: Multi-mount (included)
• Decoding range: Standard Range (SR)

Our verdict

The Zebra DS5502-SR is a reliable fixed-mount scanner that excels in unattended applications. Its high-resolution imaging, wide field of view, and rugged construction make it a solid choice for self-service kiosks and industrial automation.
