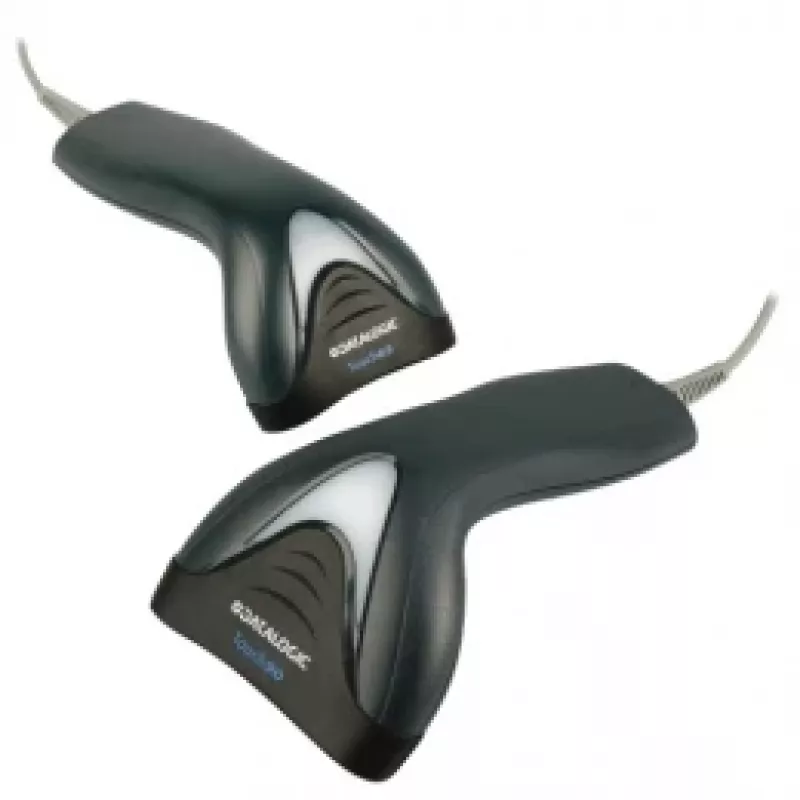

DATALOGIC Barcode Reader Touch 90 Pro Td1100 Contact Linear Imager Black

The Datalogic Touch 90 Pro Black is a compact fixed-position barcode scanner designed for reading wide bar codes. The device features a 9.0 cm (3.5 in) reading window, a working distance of 150 mm, and a 640 nm illumination wavelength. It supports common host interfaces — USB, RS-232 and Keyboard Wedge — and comes in a lightweight, IP30-rated housing weighing 153 g. Power requirements are 5 V with typical current consumption of 100 mA. The read-through holder is included to facilitate hands-free scanning; cables and power supplies are sold separately.

Advantages

The Touch 90 Pro combines a wide 9.0 cm reading window with multiple interface options for flexible integration into POS and fixed-station environments. Its compact size and low weight make it easy to install and position, while the read-through holder allows stable hands-free scanning. The device operates reliably in ambient light up to 20,000 lx and provides efficient power consumption at 5 V / 100 mA.

Suitable for

• Point-of-sale counters requiring wide barcode coverage
• Fixed scanning stations in retail or logistics
• Environments needing USB, RS-232 or Keyboard Wedge connectivity

Key specifications

• Reading window: 9.0 cm / 3.5 in (wide window)
• Working distance: 150 mm
• Wavelength: 640 nm
• Light tolerance: up to 20,000 lx
• Interfaces: USB, RS-232, Keyboard Wedge
• Ingress protection: IP30
• Power: 5 V, 100 mA
• Weight: 0.153 kg
• Colour: Black

How to use

Mount the scanner in the read-through holder and connect it to the host system using the appropriate cable and interface (USB, RS-232 or Keyboard Wedge). Position items so bar codes pass across the 9.0 cm reading window at about 150 mm working distance. For reliable reads, ensure bar codes are oriented within the scanner field and avoid extremely reflective surfaces. Configure host settings as required for your POS or data-collection application.

Recommendations

Use the read-through holder for hands-free operation in checkout or fixed-station setups. Select the interface that matches your host system and purchase required cables or power supplies separately. Keep the scanning window clean and avoid direct exposure to intense light sources beyond the specified tolerance.
