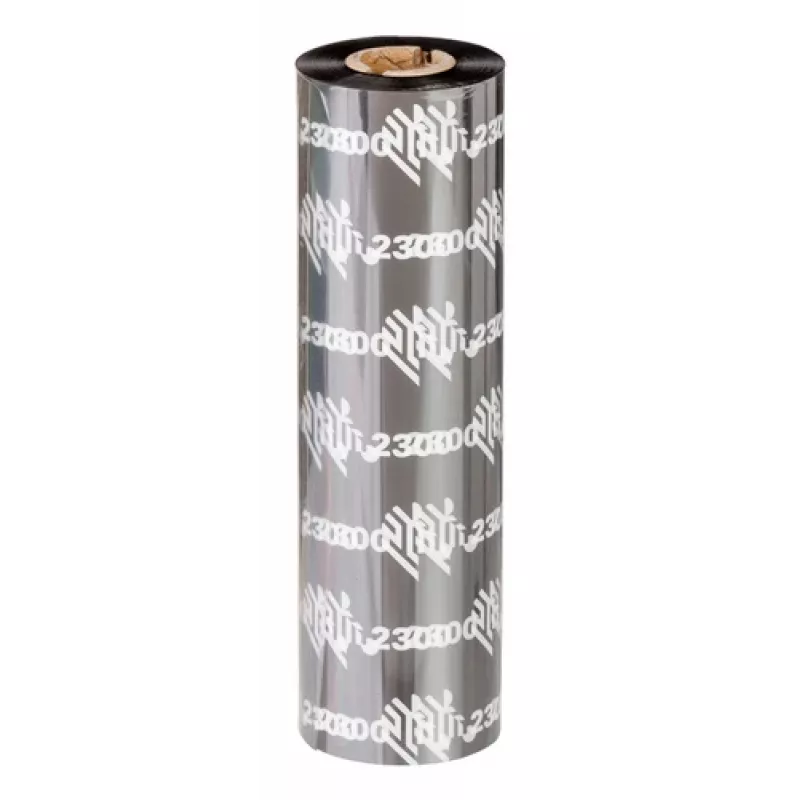

Zebra 2300 Performance Wax thermal ribbon 74 m Black

The Zebra 02300GS06407 Printer Ribbon is a thermal transfer wax ribbon formulated to deliver crisp black images and reliable barcode readability at high print speeds. Compatible with Zebra models TLP284x, TLP384x, TLP274x, TLP264x, T402, R402 and R-2844Z, this ribbon has a 6.4 cm width, 74 m length and a 2.5 cm core, making it suitable for a range of standard labeling tasks.

Advantages

This custom wax ink formulation provides clear normal and rotated barcodes with strong visible light and infrared scannability. The ribbon maintains print quality at speeds up to 203.2 mm/s, producing consistent black prints suitable for frequent label production. The 6.4 cm width and 74 m length offer a balance of roll capacity and compact size for common Zebra printers.

Suitable for

• Printing barcode labels on paper or semi-coated materials
• High-speed label runs requiring good scan performance
• Replacement ribbon for compatible Zebra desktop and industrial printers

Key specifications

• Brand: Zebra
• Model / MPN: 02300GS06407
• Color: Black
• Ribbon type: Wax thermal transfer
• Width: 6.4 cm
• Length: 74 m
• Core diameter: 2.5 cm
• Compatible printers: TLP284x, TLP384x, TLP274x, TLP264x, T402, R402, R-2844Z
• Maximum recommended print speed: up to 203.2 mm/s

How to use

Install the Zebra 02300GS06407 ribbon according to your printer’s ribbon loading instructions: place the ribbon roll on the supply spindle, thread the ribbon across the printhead and attach it to the take-up core. Configure the printer media and ribbon settings for wax ribbons and the 6.4 cm width. Perform a test print to verify barcode quality and alignment before starting full production.

Recommendations

For best results use with paper or semi-coated label stocks and ensure printhead pressure and speed settings match the ribbon type. Store unused ribbons in a cool, dry place away from direct sunlight to preserve print quality.
