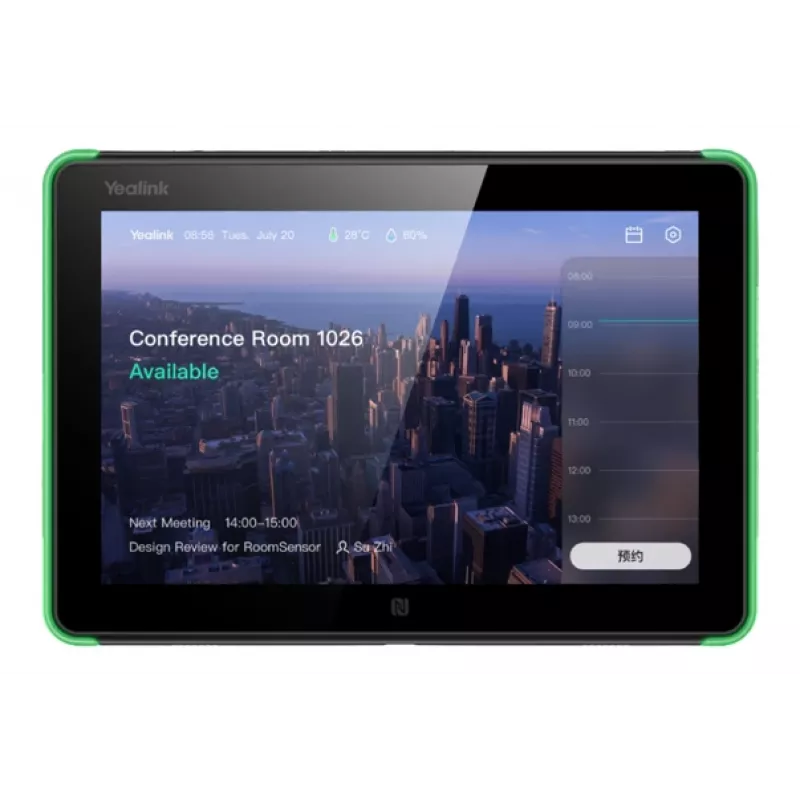

Yealink RoomPanel - Room Manager - Wireless, Wired

The Yealink RoomPanel is a dedicated room management touch panel designed to streamline meeting room scheduling and enhance workplace efficiency. With an 8-inch capacitive touch screen and Android 9.0 operating system, it offers intuitive control for booking rooms, checking availability, and managing meeting schedules. The device supports both wireless (Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.0) and wired (Ethernet, PoE) connectivity, making it versatile for various installation environments. Its sleek design and multiple mounting options (wall, glass, VESA) allow seamless integration into any modern office.

Advantages

• Easy room scheduling with real-time status display
• High-resolution 8-inch touch screen for clear visibility
• Dual connectivity: Wi-Fi and Ethernet for flexible deployment
• PoE support simplifies installation (no separate power cable needed)
• Built-in sensors (ambient light, proximity, PIR) for energy-saving automation
• Compatible with Microsoft Teams Rooms, Zoom Rooms, and third-party scheduling apps

Suitable for

• Meeting rooms of all sizes in corporate offices
• Conference centers and co-working spaces
• Hotels and event venues requiring room booking systems
• Educational institutions with shared spaces

Key specifications

• Display: 8-inch capacitive touch, 1280x800 pixels
• OS: Android 9.0
• Processor: Quad-core Cortex-A53
• RAM: 2 GB, Storage: 16 GB eMMC
• Connectivity: Wi-Fi 802.11a/b/g/n/ac (2.4G/5G), Bluetooth 5.0, Ethernet 10/100Mbps
• Ports: 1 x USB 2.0 Type-A, 1 x RJ45
• Power: PoE (IEEE 802.3af/at) or optional 12V/1A DC adapter
• Sensors: Ambient light, proximity, PIR motion
• Audio: Built-in speaker, dual microphones
• LED indicators: Side bars (Red/Green/Blue) for room status
• Mounting: Wall, glass, VESA
• Dimensions: 140 x 86 x 20 mm (approx.)
• Weight: 0.3 kg (approx.)

Recommendations

For optimal performance, use with a PoE-enabled network switch. The optional DC power supply (12V/1A) is available separately. Compatible with Yealink RoomCast and other room management solutions.
