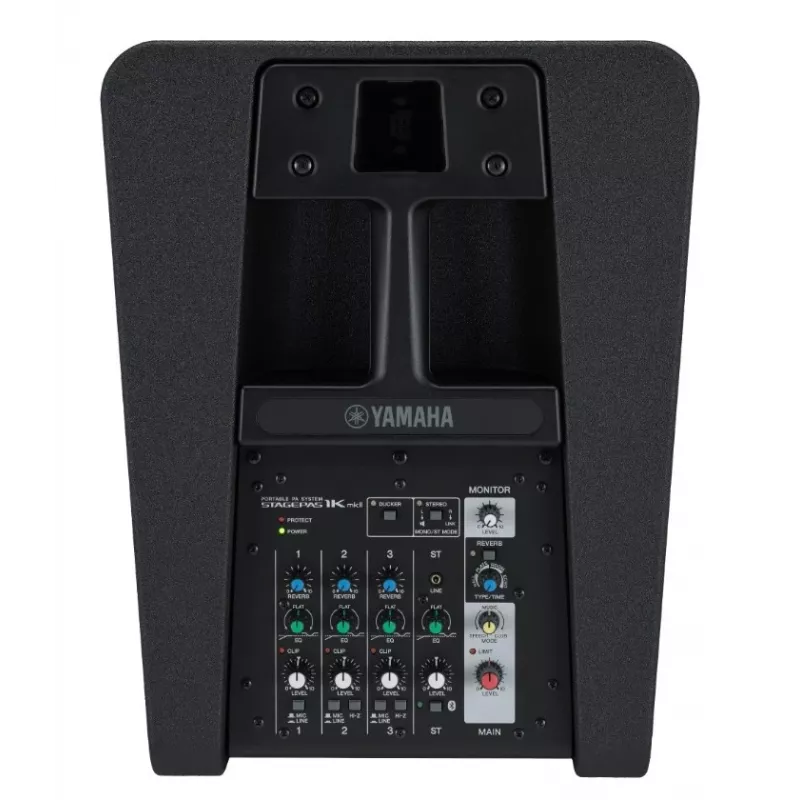

Yamaha STAGEPAS 1K MK2 Portable Column Array PA System with Subwoofer

The Yamaha STAGEPAS 1K MK2 is a powerful and portable column array PA system designed for professional sound reinforcement. Combining a 12-inch subwoofer with a slim line array column, this system delivers 1100W of dynamic power and exceptional audio clarity for live performances, presentations, and events. With a built-in 5-channel digital mixer, Bluetooth 5.0 streaming, and intuitive controls, the STAGEPAS 1K MK2 offers a complete all-in-one solution for musicians, DJs, and public speakers.

Advantages

Experience premium sound quality with Yamaha's renowned engineering. The compact and lightweight design makes setup and transport effortless, while the integrated mixer and effects eliminate the need for external equipment. The STAGEPAS Controller app provides wireless control via iOS/Android devices, allowing you to adjust settings from anywhere in the venue.

Suitable for

• Live music performances and gigs
• DJ sets and mobile parties
• Corporate events and conferences
• Public speaking and presentations
• Outdoor events and ceremonies

Key specifications

• System Type: Portable Column Array PA System
• Power Output (Dynamic): 1100 W (LF: 500 W, HF: 600 W)
• Frequency Response: 37 Hz - 20 kHz (-10 dB)
• Maximum SPL: 125 dB SPL
• Subwoofer Driver: 12-inch (30 cm) cone
• Line Array Drivers: 10x 1.5-inch (3.8 cm) cone
• Mixer Channels: 5-channel digital mixer (3 mono mic/line, 1 stereo line)
• Inputs: 3x XLR/TRS Combo, 2x TRS Phone, 2x RCA Pin, 1x Stereo Mini, Bluetooth
• Outputs: 1x MONITOR OUT (XLR/TRS Combo), 1x LINK OUT (XLR)
• Bluetooth Version: 5.0 (A2DP, SBC, AAC)
• Effects: SPX Digital Reverb (4 types), 1-Knob EQ, Mode (Speech/Music/Club)
• Amplifier Class: Class-D
• Coverage Angle (H x V): 170° x 30°
• Control App: STAGEPAS Controller (iOS/Android)
• Phantom Power: +48V (Channels 1 & 2)
• Subwoofer Enclosure Material: Plywood
• Pole Socket: M20 threaded

Recommendations

For optimal performance, pair the STAGEPAS 1K MK2 with Yamaha's optional speaker stands and cables. Use the STAGEPAS Controller app to fine-tune EQ and effects for your specific venue. Ideal for solo artists, duos, and small to medium-sized venues.
