XLR 3-pin connector Omnitronic 30200089 for microphone and audio equipment, male/female options

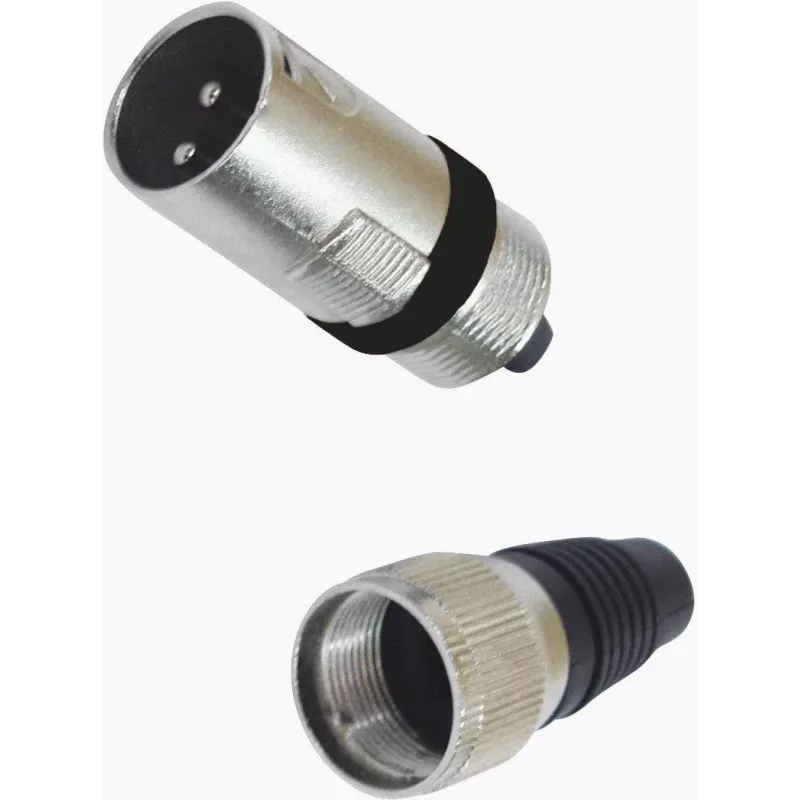

Omnitronic XLR 3-pin connector model 30200089 is a balanced audio connector intended for microphones and professional audio equipment. The design provides dependable signal and ground contacts for low-noise transmission and a secure locking mechanism for stable connections. Available in male and female variants, it is suitable for building or repairing microphone cables and completing stage or studio balanced audio lines.

Advantages

The Omnitronic 30200089 offers durable contacts and a locking latch to prevent accidental disconnection. Its standard 3-pin configuration ensures compatibility with common microphone and audio equipment, enabling consistent, low-noise signal transfer. The connector is suitable for both new cable assemblies and repairs, simplifying maintenance of audio setups.

Suitable for

Key specifications

How to use

Strip the cable jacket and separate conductors according to the chosen wiring standard (pin 1 = ground, pin 2 = hot, pin 3 = cold). Insert conductors into the connector contacts and secure them by soldering or screw terminals as provided by the connector version. Assemble the housing and ensure the locking latch engages when plugged into a mating XLR socket. Test continuity and polarity before final deployment.

Recommendations

Use the connector with compatible balanced microphone and audio cables. Verify wiring polarity and secure mechanical strain relief to avoid undue stress on the contacts; choose the male or female version according to the intended cable end and panel or device connections.
