XFP transceiver module BlueOptics PAN-XFP-SR-BO 10000 Mbit/s

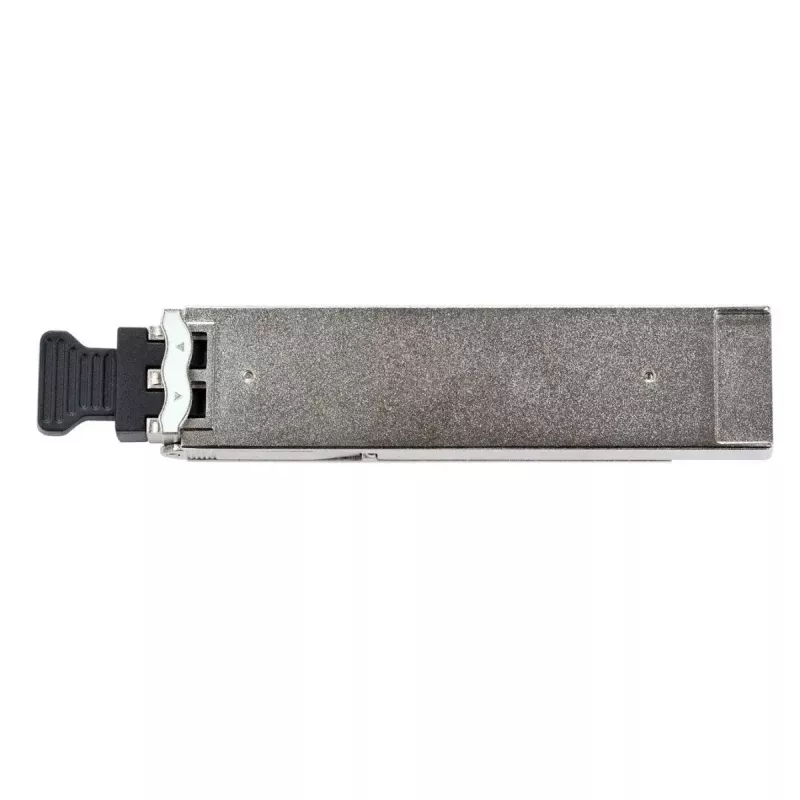

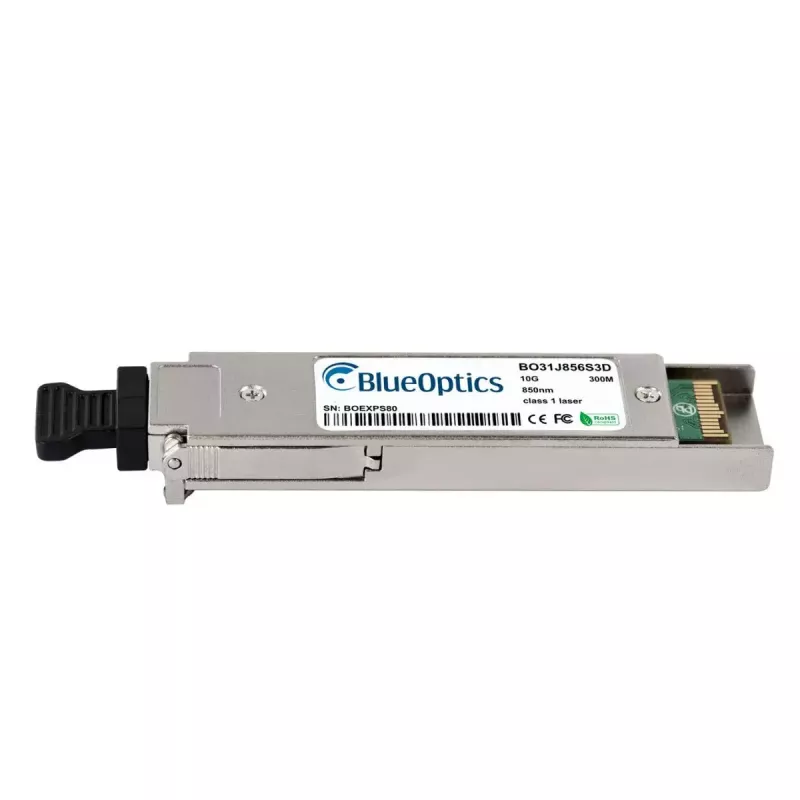

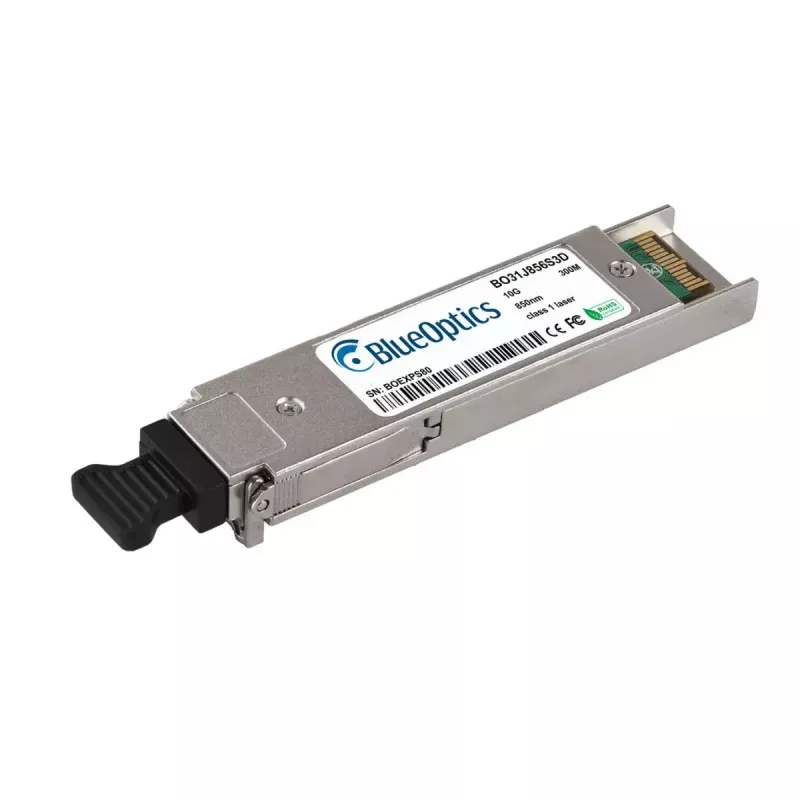

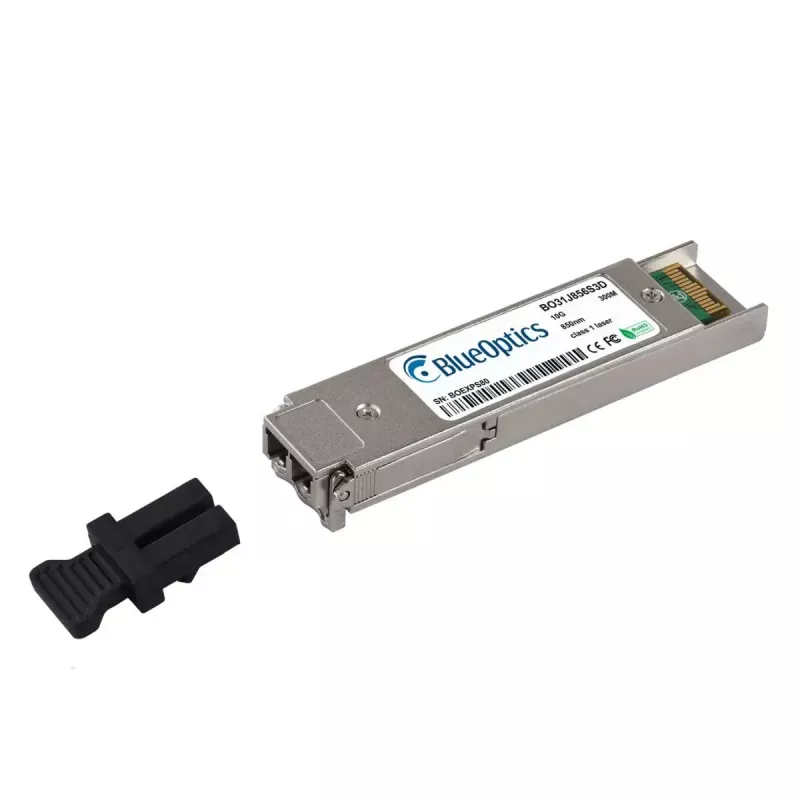

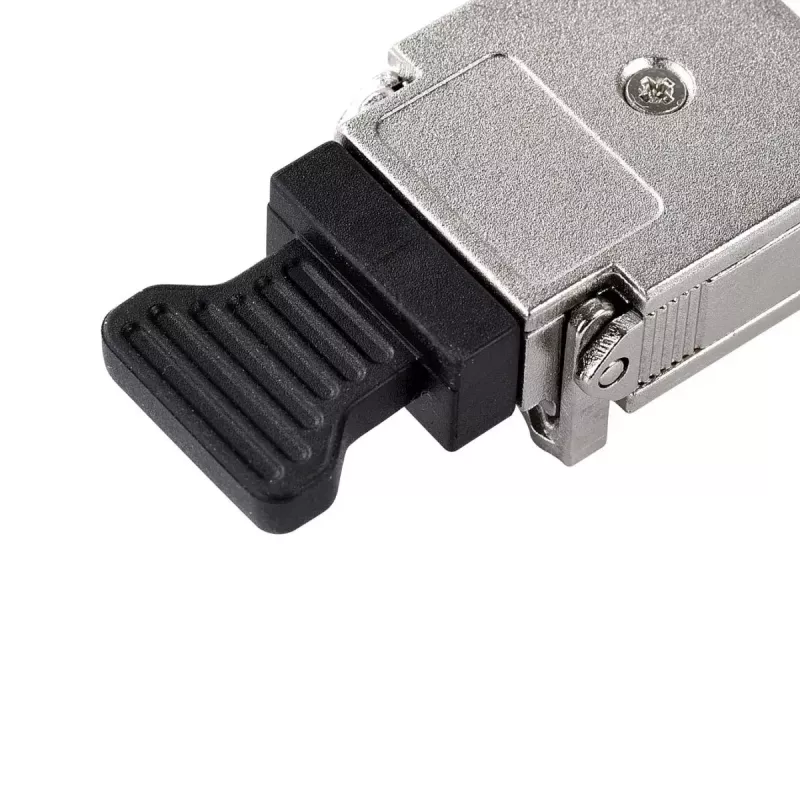

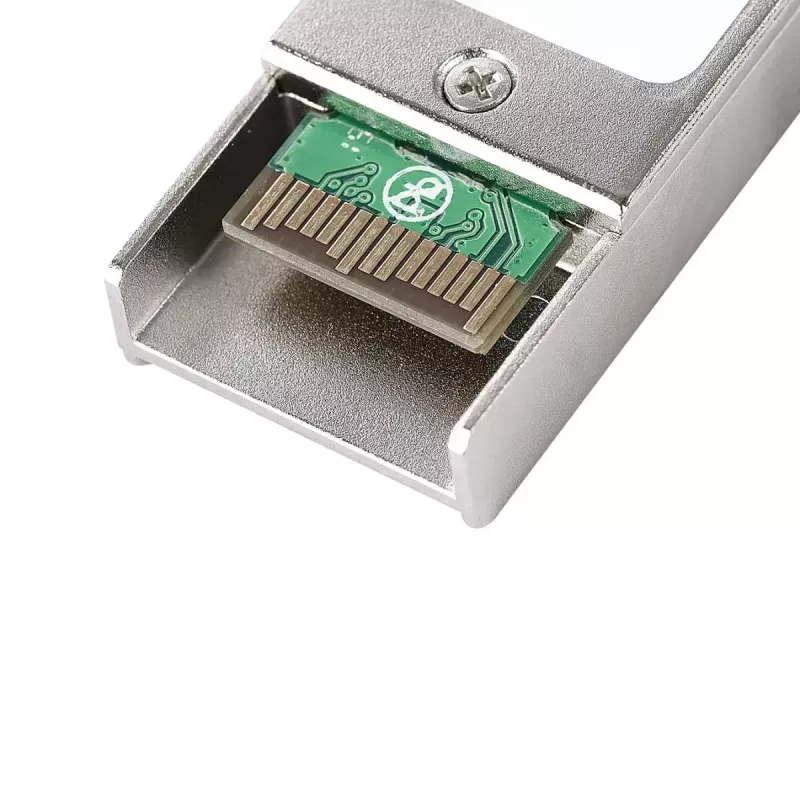

The BlueOptics PAN-XFP-SR-BO is a fiber optic XFP transceiver module designed for 10G data transmission over multimode fiber. It supports a maximum data transfer rate of 10000 Mbit/s and uses an XFP interface with an LC duplex optical connector. The module is RoHS, CE and FCC certified and weighs approximately 20 g. It is compatible with hardware platforms that support 10GBASE-SR XFP modules and is intended for short-range, high-speed network links.

Advantages

The module implements the 10GBASE-SR optical standard with 850 nm transmitter and receiver for multimode fiber, providing simultaneous transmit and receive capability over an LC duplex link. It is manufactured to Multi-Source Agreement (MSA) mechanical and electrical specifications for XFP transceivers to ensure interoperability with a wide range of switches, routers and storage systems. Built from components from established communications suppliers, the module offers diagnostic monitoring support (DDM/DOM) for real-time parameters such as voltage, temperature, optical output and received power, aiding remote troubleshooting and maintenance.

Suitable for

Key specifications

How to use

Install the XFP transceiver into any compatible XFP port in accordance with the host device manufacturer’s instructions and ensure the port supports 10GBASE-SR modules. Connect LC duplex multimode fiber patch cords to the transceiver, observing correct TX/RX orientation. Verify link status and, if available, read DDM/DOM parameters through the host system to confirm proper optical power levels, supply voltage and temperature. Follow static-safe handling procedures when inserting or removing the module.

Recommendations

For optimal performance, use multimode fiber and patch cords that meet the same OM class recommended by your network design (for example OM3/OM4 for 10GBASE-SR over extended distances), keep connectors clean, and use vendor-validated combinations of transceivers and host equipment. Confirm that the host device firmware supports third-party XFP modules and enable DDM/DOM monitoring if available to assist ongoing maintenance.
