Wireless Access Point UBIQUITI U7 Pro XGS – Wi‑Fi 6 tri‑band 2.4/5/6 GHz, 8600 Mbps, 8 spatial streams, PoE++

The Ubiquiti U7 Pro XGS is a ceiling-mounted, multi-band Wi‑Fi 7 access point designed for high-density environments. It operates on 2.4 GHz, 5 GHz and 6 GHz bands and provides a combined maximum data throughput of up to 8600 Mbit/s. The device supports PoE installation and includes an Ethernet port with multi-gig speeds (1/2.5/5/10 GbE). Its black housing and compact ceiling form factor are intended for discreet deployment in offices, hospitality venues and public spaces.

Advantages

The access point offers eight concurrent spatial streams and a dedicated spectral scanning radio for real-time RF analysis and interference detection. Multi-gig Ethernet support (1000/2500/5000/10000 Mbit/s) and Wi‑Fi 7/6 client compatibility deliver high throughput and reduced latency. Security features include support for advanced authentication algorithms such as PPSK. The unit has a maximum power consumption of 29 W and a single RJ‑45 port for network connectivity and PoE power delivery.

Suitable for

• High-density office environments and open-plan workspaces
• Hotels, conference centers and hospitality venues
• Public areas and campuses requiring robust wireless coverage
• Environments needing real-time RF monitoring and interference detection

Key specifications

• Model: Ubiquiti U7 Pro XGS (U7-PRO-XGS-B)
• Wireless bands: 2.4 GHz, 5 GHz, 6 GHz
• Maximum data transfer rate: 8600 Mbit/s

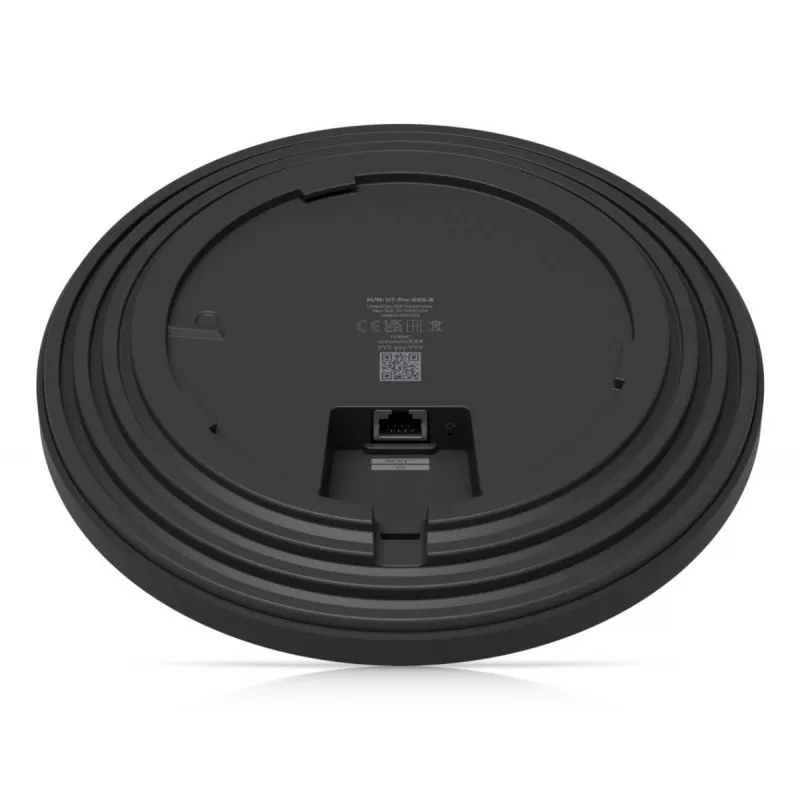

• Ethernet LAN: 1 × RJ‑45, multi‑gig (1/2.5/5/10 GbE)
• Spatial streams: 8-stream (Wi‑Fi 7)
• Networking standards: IEEE 802.11be, 802.11ax, 802.11ac, 802.11n, 802.11k/r/v
• Security: supports PPSK and common Wi‑Fi authentication methods
• Power: PoE support, max consumption 29 W
• Colour: Black
• Weight: 0.8 kg

How to use

Install the U7 Pro XGS on a ceiling mount following the manufacturer’s mounting instructions. Connect the unit to a PoE-capable switch or injector via the RJ‑45 port to provide both network connectivity and power. Use the Ubiquiti management platform or on-device interface to configure SSIDs, security settings (including PPSK), band steering and RF monitoring. Place the access point centrally in the coverage area for optimal performance and ensure firmware is kept up to date.

Recommendations

Deploy the U7 Pro XGS in areas with many simultaneous clients and where spectral scanning can aid interference troubleshooting. For best results, pair with multi-gig network infrastructure and follow site-survey guidelines to determine optimal mounting height and channel planning.
