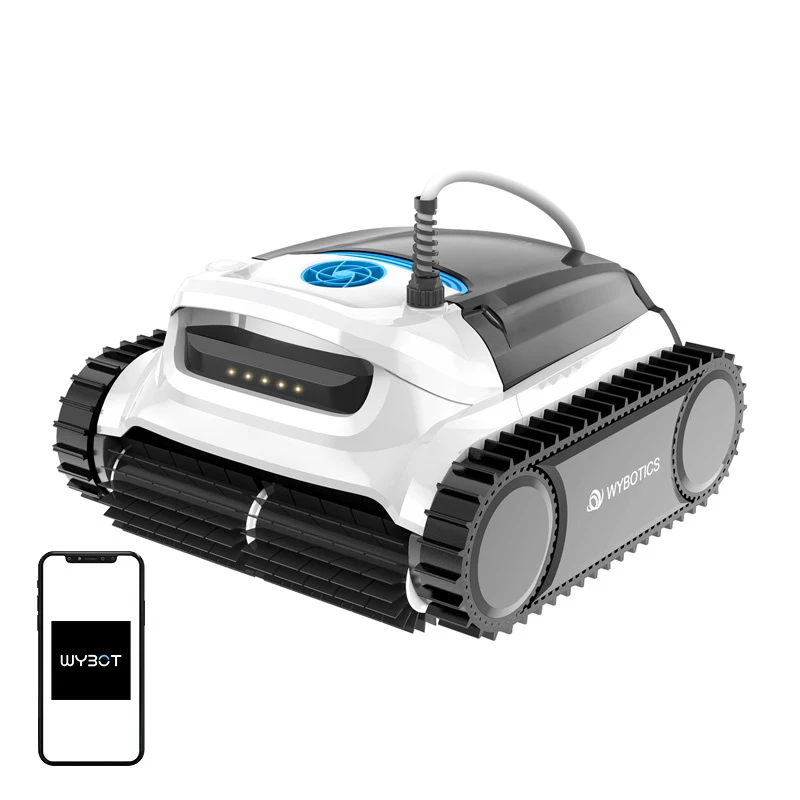

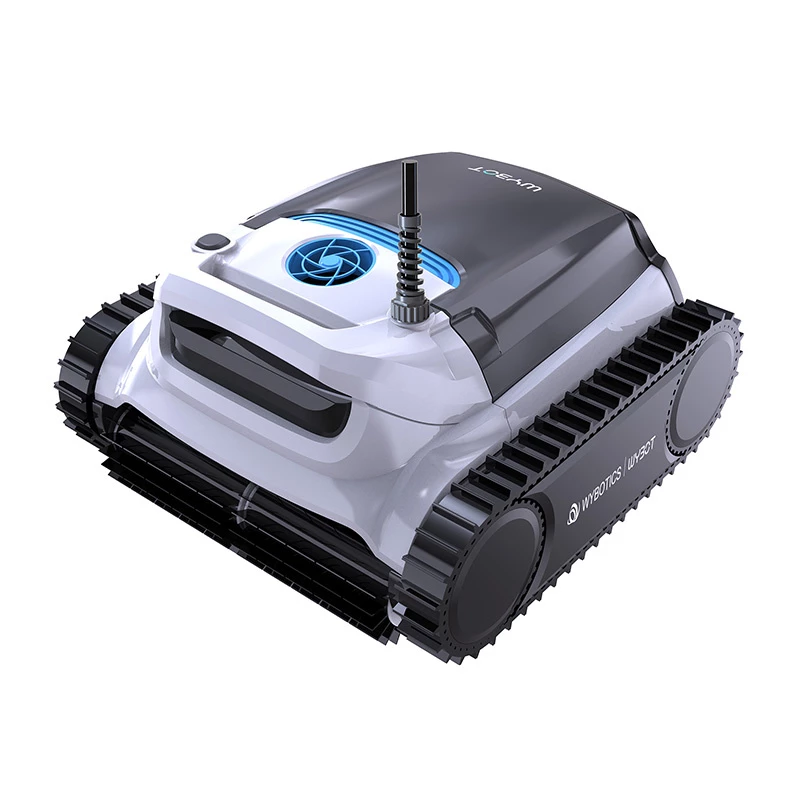

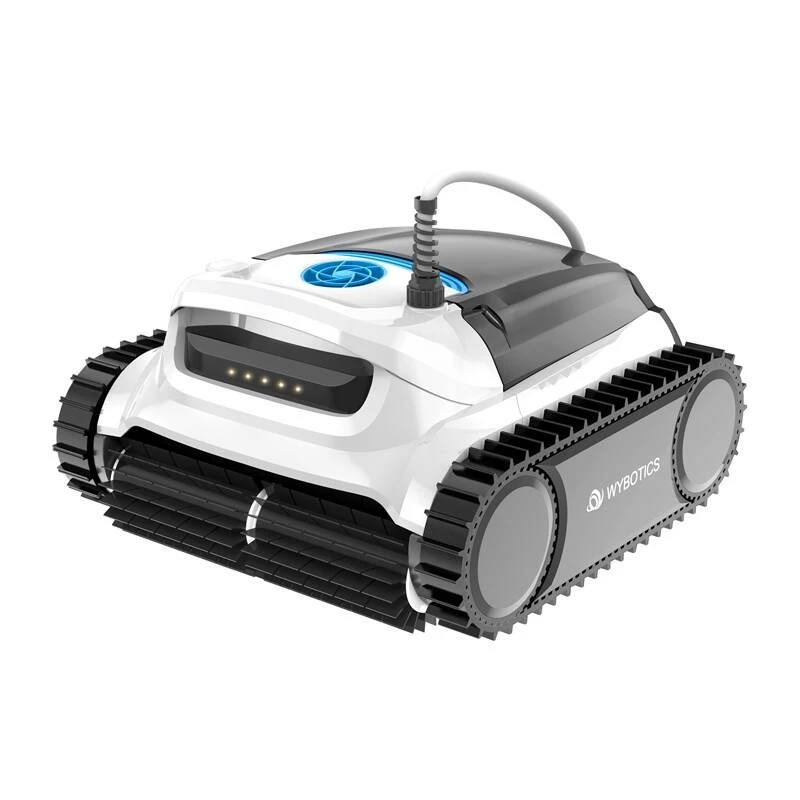

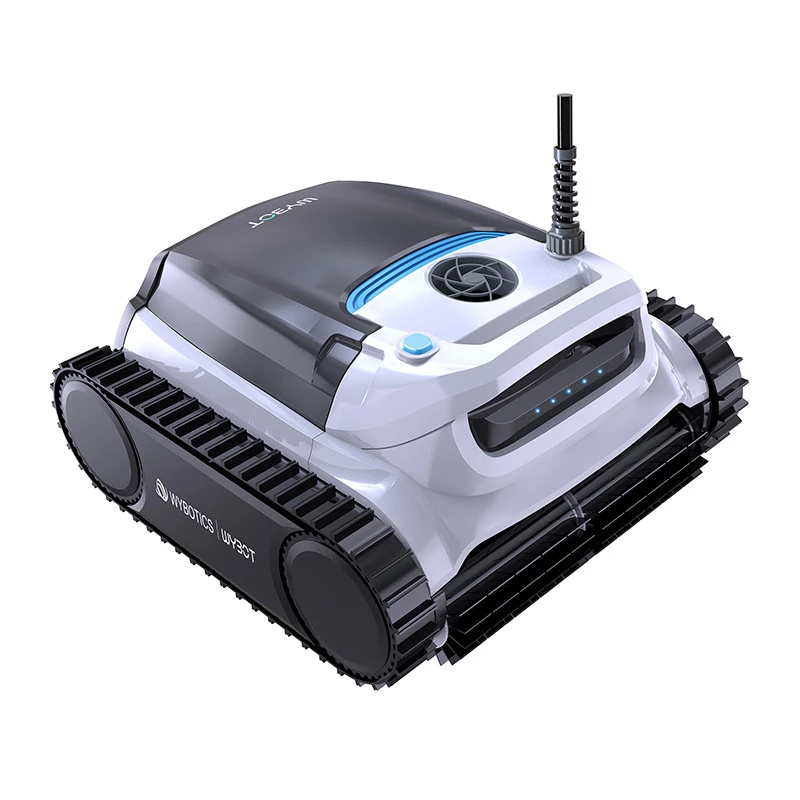

Wired pool cleaning robot Wybot M1C with efficient suction and easy navigation

Wybot M1C wired swimming pool cleaning robot combines efficient suction, precise navigation and plug-and-play operation for automated cleaning of pool floors, walls, steps and waterline. The robot operates while connected by cable and is suitable for round, polygonal and kidney-shaped pools. It features a brushless motor, multiple cleaning modes controlled via a mobile app, advanced route planning with a 6-axis gyroscope and infrared sensors, and weekly scheduling with selectable cycle durations.

Advantages

The Wybot M1C uses a 150W brushless motor for quieter operation, longer service life and improved energy efficiency compared with traditional motors. Intelligent navigation algorithms and sensors map the pool and select optimized routes (Star, S, Cross, Regular, H and N patterns) to ensure full coverage. The robot supports app control for manual steering, mode selection, temperature monitoring and one-button return to the waterline. Built-in multi-level protection guards against over-discharge, overcharge, overvoltage, overload and short circuit. The unit includes an 18 m cable, power box and safety rope for continuous operation.

Suitable for

• Private residential pools
• Small public or hotel pools
• Round, polygonal and kidney-shaped pools
• Pools up to 130 m² of cleaning area

Key specifications

• Manufacturer: Wybot
• Model: M1C
• Rated input voltage: 100–240 VAC, 50/60 Hz
• Rated output voltage: DC 28V
• Rated power: 100W (motor rating stated 150W brushless in text)
• Cable length: 18 m
• Filtration volume: ≈15 m³/h
• Filter: Multi-level filtration
• Max cleaning area: up to 130 m²
• Water resistance: Purifier IPX8, power box IPX5
• Recommended pool water temperature: 10–35 °C
• Movement speed: 11–16 m/min
• Product size: 460 × 440 × 245 mm
• Weight: main body 9.5 kg ± 0.1 kg
• Storage conditions: 5–35 °C, RH ≤75%

How to use

Connect the power box to a suitable mains supply (100–240 VAC) and attach the cable to the robot. Place the robot in the pool and use the plug & play function to start cleaning immediately or open the mobile app to select a specific cleaning mode and schedule. For targeted cleaning, control the robot manually via the app to guide it to areas that require extra attention. After the cycle ends, remove the robot from the water, empty and rinse the filter elements according to the user manual.

Recommendations

For reliable operation, use the robot within the recommended pool water temperature range (10–35 °C), keep the power box dry and protected (IPX5), and store the unit in a cool, dry place (5–35 °C, RH ≤75%). Regularly clean the filters and inspect the cable and safety rope for damage. Choose cycle duration (1, 2 or 3 hours) based on pool size and dirt level to ensure efficient cleaning.
