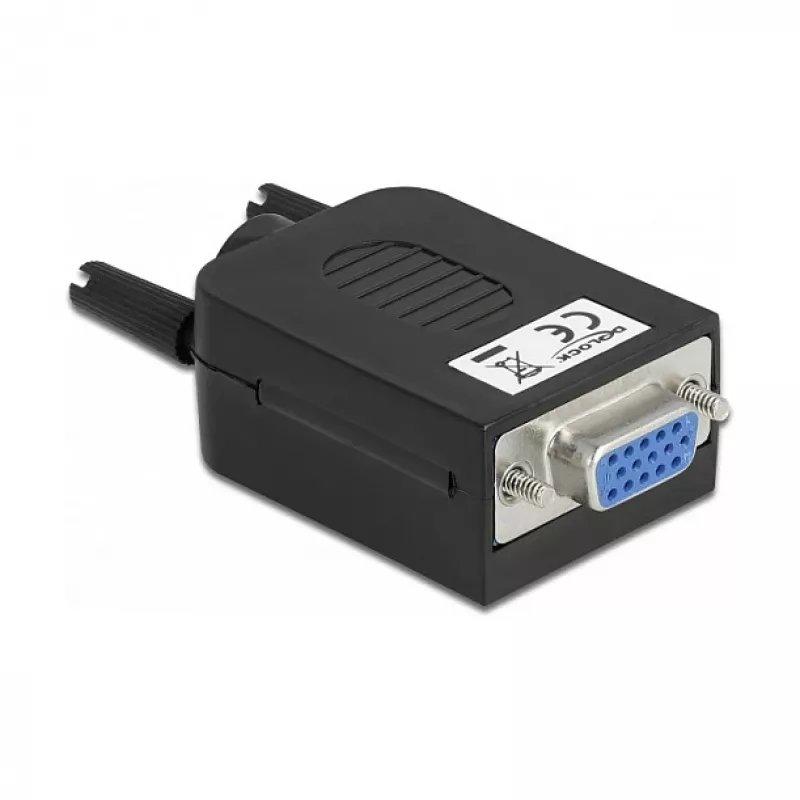

Wire Connector VGA DeLOCK 66259

This terminal block adapter by Delock allows connection of bare wires to a VGA interface. The compact wire connector (DeLOCK 66259) features a 10‑pin terminal block in a plastic enclosure that protects the PCB from dirt and damage. The connector is available in black and blue and is supplied as a single piece in a polybag. Dimensions: 34.4 × 51.8 × 21 mm.

Advantages

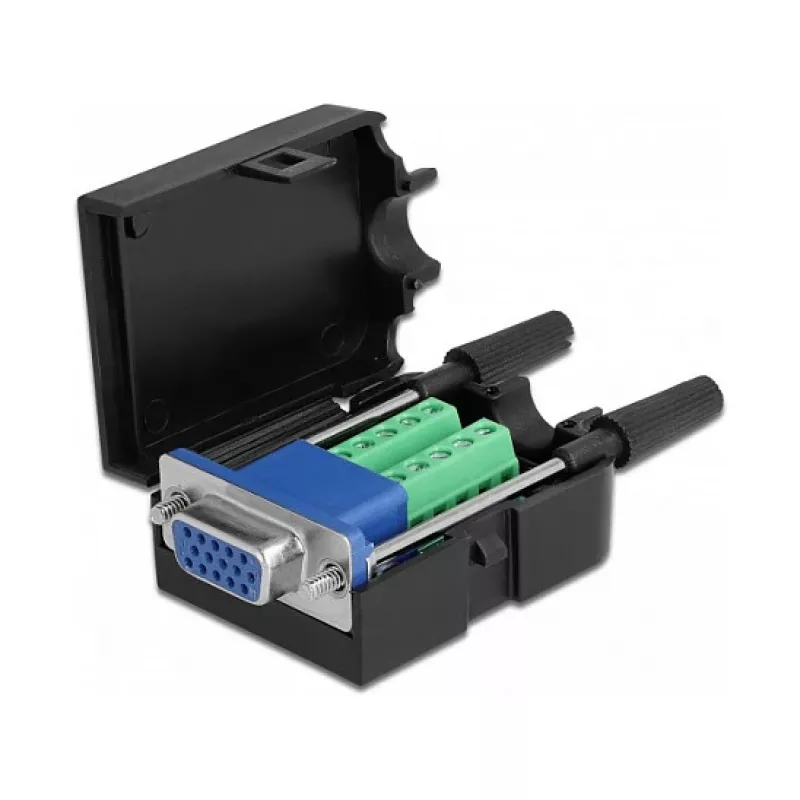

The plastic enclosure provides protection against dirt and mechanical damage while the integrated strain relief secures the cable inside the housing. The 10‑pin terminal block supports straightforward screw‑type wire connections, making the adapter suitable for both industrial and hobby use such as model railways.

Suitable for

• Connecting bare wires to VGA signals
• Industrial control and prototyping
• Hobby electronics and model railway installations

Key specifications

• Brand: DELOCK
• Model / MPN: 66259
• EAN: 4043619662593
• Connector type: 10‑pin terminal block for VGA
• Material / colour: Plastic enclosure, black and blue
• Dimensions (W × D × H): 34.4 × 51.8 × 21 mm
• Package: 1 piece in polybag

How to use

Strip the conductor ends to the appropriate length, open the screw terminals and insert the bare wires into the matching 10‑pin positions. Tighten the screws to secure the conductors. Route the cable through the enclosure and ensure the integrated strain relief holds the cable securely before final assembly or mounting.

Recommendations

Use appropriately sized stripped wire for the terminal screws and avoid overtightening to prevent conductor damage. For signal integrity and safe operation, observe correct VGA pin assignments and, where required, use shielding or grounding measures in noisy environments.
