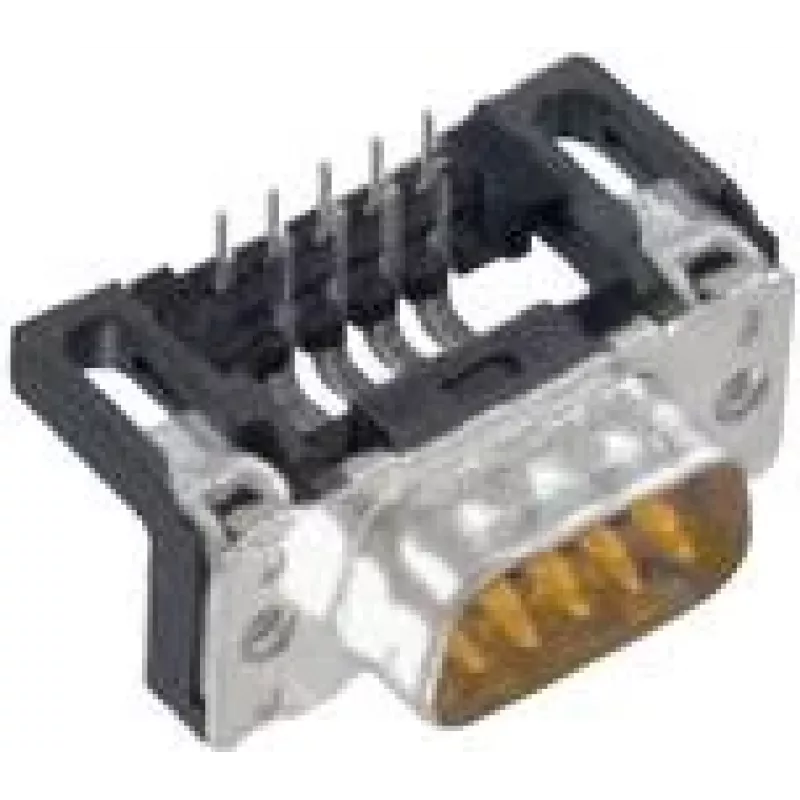

Wire Connector Harting 09 65 362 6812 Black Silver

The Harting wire connector 09 65 362 6812 Black Silver is a compact, metal connector designed for reliable electrical connections in industrial and electronic assemblies. Constructed from steel with a copper alloy shield, the connector provides mechanical strength and consistent conductivity. The product is RoHS compliant and supplied in bulk packaging suitable for production runs and repairs.

Advantages

The steel body offers high mechanical robustness while the copper alloy shielding improves electrical contact quality and corrosion resistance. Its compact form factor and metal construction make it suitable for environments where durability and repeated mating cycles are required. Supplied in multi-piece packs, it supports efficient inventory management for installers and manufacturers.

Suitable for

• Industrial control panels and machinery wiring
• Electronic device assembly and repair
• Signal and low-voltage power distribution
• Prototyping and small-batch production

Key specifications

• Material: steel housing with copper alloy shield
• Finish: black and silver
• Compliance: RoHS
• Weight per piece: approximately 11.42 g
• Packaging quantity: 100 pieces per pack

How to use

Prepare the cable or wire according to the required strip length for the mating connector or terminal. Insert the conductor into the connector until it seats fully, ensuring a secure metal-to-metal contact with the shielded contact area. When integrating into assemblies, follow standard mounting and strain-relief practices for metal connectors to avoid mechanical stress on the connection. Verify continuity and insulation resistance after installation.

Recommendations

Store connectors in a dry, dust-free environment to maintain contact quality and prevent corrosion. Use appropriate crimping or insertion tools recommended for metal connectors and avoid excessive torque on mating screws or fasteners. For critical installations, perform periodic inspections and electrical tests to confirm ongoing performance.
