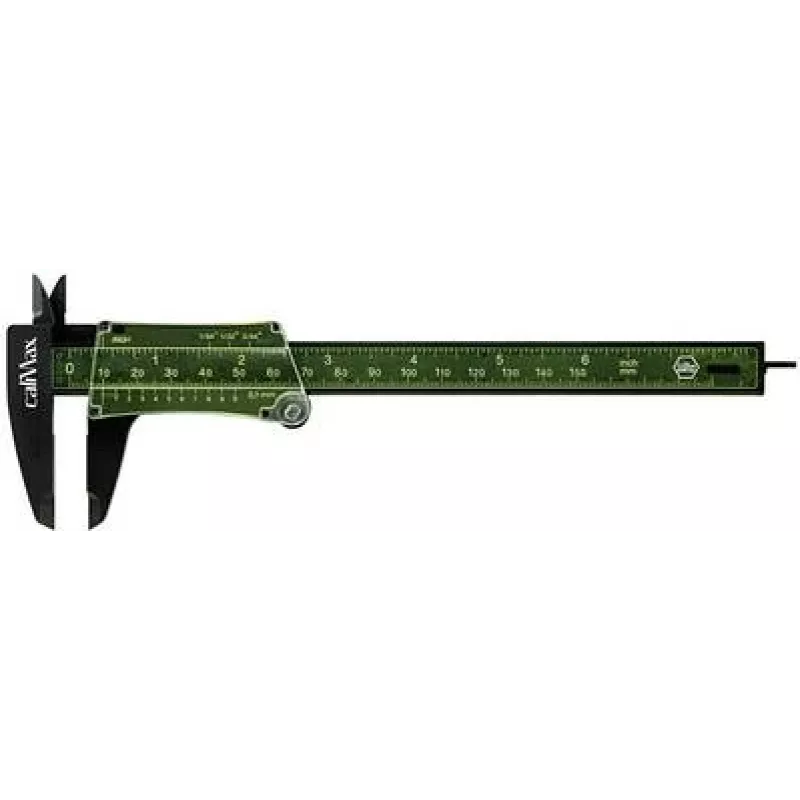

Wiha 27083 caliMax analogue vernier caliper

The Analogue Wiha caliMax 27083 is a compact vernier caliper made from a non-metallic high-tech material containing 50% glass fibre. It offers dual-scale reading in millimetres and inches and is designed for outside, inside and depth measurements with almost parallax-free indication and a green vernier for improved contrast.

Advantages

Lightweight construction (approx. 45 g) and non-metallic build reduce weight without compromising rigidity. Dual-scale vernier allows metric and imperial readings (0.1 mm and 1/64 inch). The green vernier scale and near parallax-free design improve legibility for reliable reading of measurement values.

Suitable for

• Outside measurements of components
• Inside diameter measurements
• Depth measurements of holes and slots
• General workshop and field use where a lightweight, durable caliper is required

Key specifications

• Material: Non-metallic high-tech material with 50% glass-fibre content
• Scale: Vernier for millimetre and inch display
• Reading resolution: 0.1 mm and 1/64 inch
• Application: Outside, inside and depth measurements
• Special features: Almost parallax-free reading; green vernier for better contrast
• Brand / Model: Wiha caliMax 27083

How to use

Place the caliper jaws on the object to be measured for outside measurements, insert the jaws into the bore for inside measurements, or use the depth blade for depth measurements. Read the measurement from the vernier scale: use the millimetre markings for metric readings (0.1 mm resolution) or the inch markings for imperial readings (1/64 inch). Ensure the jaws are clean and aligned with the measured surfaces for accurate results.

Recommendations

Store the caliper in a dry place away from direct sunlight. Clean the measuring faces after use and avoid applying excessive force to the jaws. For consistent accuracy, check the zero position before each measurement and handle the non-metallic body carefully to prevent impact damage.
