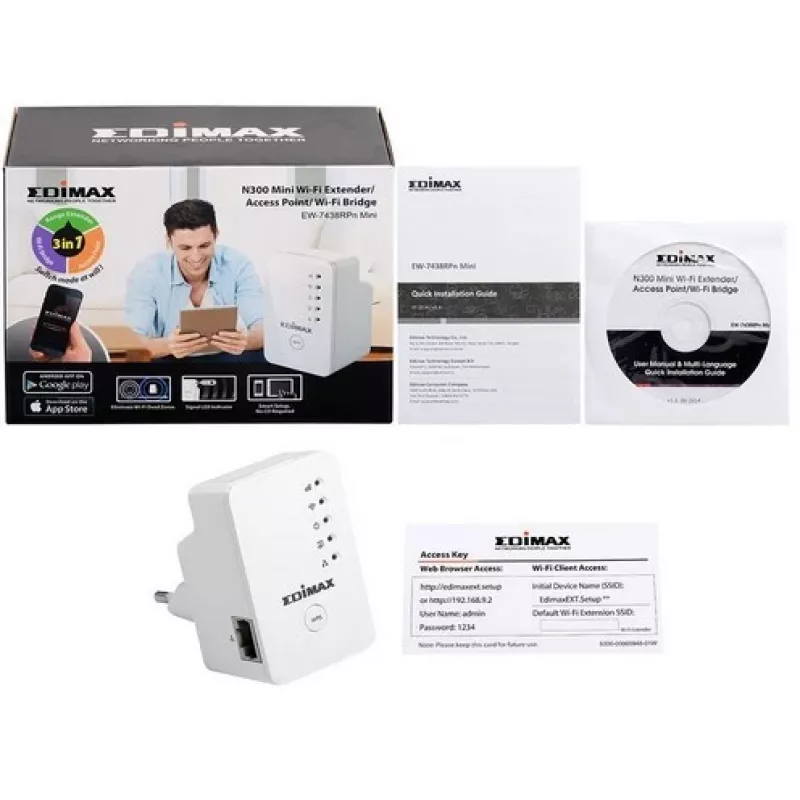

Wi-Fi Range Extender Edimax EW-7438RPN Mini

The Edimax EW-7438RPN Mini is a compact wall-plug Wi‑Fi range extender designed to increase wireless coverage and reduce dead zones in homes or small offices. Compliant with 802.11b/g/n standards, it supports data rates up to 300 Mbps, includes a built-in power adapter and integrated antenna, and offers three operating modes: Wi‑Fi Extender, Access Point and Wireless Bridge. The device provides a signal strength LED and a hardware WPS button for simple setup, and works with any wireless router.

Advantages

The EW-7438RPN Mini delivers extended Wi‑Fi coverage without additional cabling thanks to its slim wall‑plug design and integrated power adapter. Smart iQ Setup and a WPS button simplify installation, while the free EdiRange smartphone app provides local Wi‑Fi analytics, scheduling and guest network management. The unit is universally compatible with existing routers and supports security standards including 64/128‑bit WEP, WPA‑PSK and WPA2‑PSK.

Suitable for

• Extending home Wi‑Fi to eliminate dead zones
• Small office areas needing stronger wireless coverage
• Creating a guest Wi‑Fi network separate from the main network
• Converting a wired network point into a wireless access point

Key specifications

• Model: Edimax EW-7438RPN Mini
• Wireless standards: IEEE 802.11b/g/n
• Maximum data rate: up to 300 Mbps (802.11n)
• Operating modes: Wi‑Fi Extender, Access Point, Wireless Bridge
• Security: 64/128‑bit WEP, WPA‑PSK, WPA2‑PSK
• Ports: 1 × Ethernet LAN (RJ‑45)
• Power: AC input 100–240 V, 50–60 Hz (built‑in adapter)
• Antenna: integrated
• Colour: White
• Weight: 0.072 kg
• MPN: EW-7438RPN MINI, EAN: 4717964700438

How to use

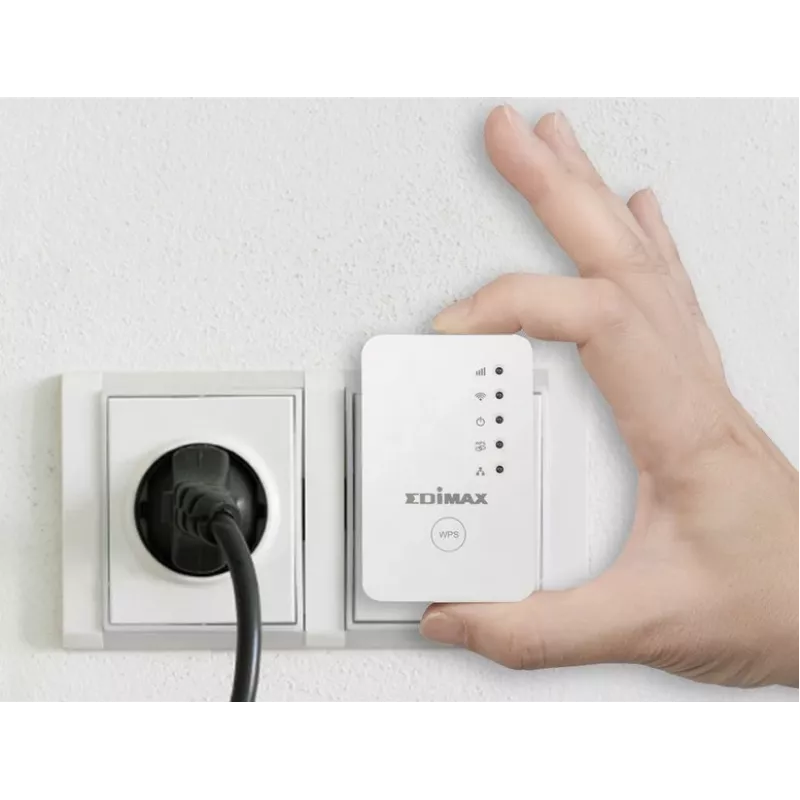

Plug the EW-7438RPN Mini directly into a mains outlet near the area where you want to improve coverage. Use the smart iQ Setup via a web browser or press the WPS button on both the extender and your router for quick pairing. Alternatively, use the EdiRange smartphone app (iOS/Android) to view local Wi‑Fi analytics, configure the device mode (Extender, Access Point or Bridge), set up a guest network and schedule Wi‑Fi availability. Place the unit in a location indicated by the signal strength LED for optimal coverage.

Recommendations

For best results, position the extender midway between your router and the dead zone with uninterrupted line of sight where possible. Use the signal strength LED to find the optimal placement, and enable the guest network or schedule to manage access and power usage as needed.
