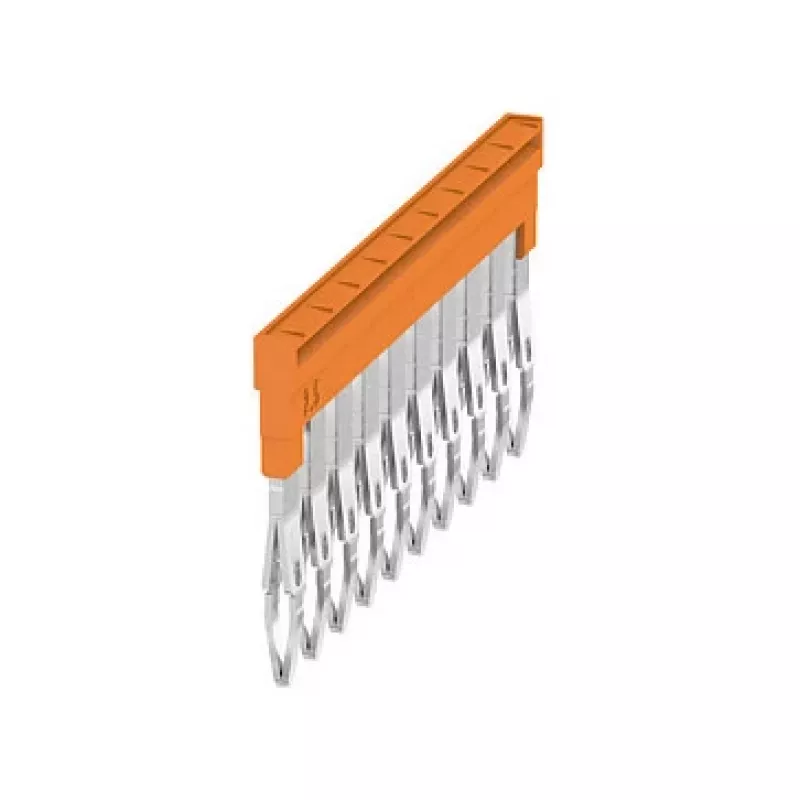

Weidmüller ZQV 2.5N/10 Cross-Connector, 10-Pole, 2.5 mm², Orange, Wemid, V0, 48.7 mm, 20 Pieces

The Weidmüller ZQV 2.5N/10 is a high-quality cross-connector designed for use with Z-Series terminal blocks. It enables efficient and reliable electrical connections in control cabinets and industrial applications. With 10 poles and a nominal cross-section of 2.5 mm², this connector ensures optimal current distribution. The orange Wemid insulation material provides excellent thermal and mechanical resistance, while the UL 94 V-0 flammability rating guarantees safety. Each pack contains 20 pieces, making it ideal for bulk installations.

Advantages

• Time-saving plug-in mounting without tools
• Compact design saves space in the cabinet
• High rated voltage of 800 V and current of 24 A
• Wide operating temperature range from -50 °C to +100 °C
• RoHS compliant and cULus/VDE approved

Suitable for

• Industrial control panels
• Power distribution systems
• Automation and machinery
• Building infrastructure

Key specifications

• Product Type: Cross-Connector
• Number of Poles: 10
• Nominal Cross-Section: 2.5 mm²
• Rated Voltage: 800 V
• Rated Current: 24 A
• Insulation Material: Wemid (Polyamide)
• Flammability Rating: UL 94 V-0
• Color: Orange
• Pitch: 5.1 mm
• Operating Temperature: -50 °C to +100 °C
• Mounting Type: Plug-in
• Compatible Terminal Block Series: Z-Series
• Packaging Quantity: 20 pieces
• Length: 48.7 mm
• Width: 2.8 mm
• Height: 2.9 mm

Recommendations

For optimal performance, pair with Weidmüller Z-Series terminal blocks. Ensure proper installation according to manufacturer guidelines. This cross-connector is a reliable choice for demanding industrial environments.
