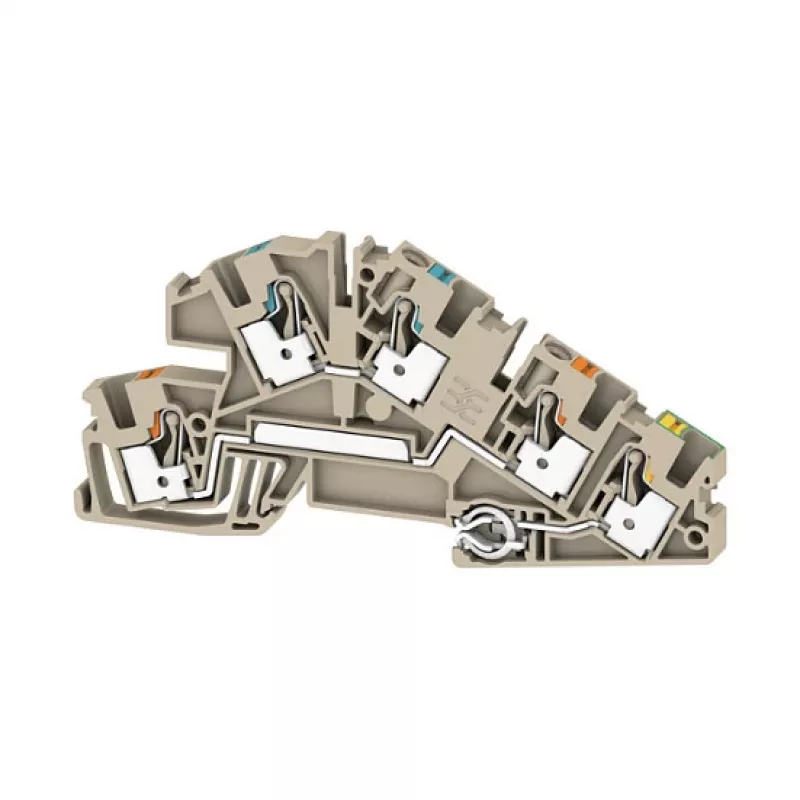

Weidmüller AITB 4 BB N-L-PE Installation Terminal Block 2669090000

The Weidmüller AITB 4 BB N-L-PE is a high-quality installation terminal block designed for reliable and safe electrical connections in industrial and building installations. This terminal block integrates three potentials (N, L, PE) with a total of 12 connection points, making it ideal for distributing power and signals in control cabinets and junction boxes.

Advantages

Robust screw connection technology ensures secure and durable wiring. The Wemid (PA 66) insulating material provides excellent thermal and mechanical resistance, while the compact design saves space on DIN rails. Rated for voltages up to 400 V and currents up to 32 A, it meets the demands of modern electrical systems.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution in junction boxes
• Lighting and HVAC installations

Key specifications

• Product Type: Installation Terminal Block
• Number of Potentials: 3 (N, L, PE)
• Number of Connections: 12 (4x N, 4x L, 4x PE)
• Rated Cross-Section: 4 mm²
• Connection Technology: Screw Connection
• Rated Voltage (IEC): 400 V
• Rated Current (IEC): 32 A
• Mounting Type: DIN Rail (TS 35)
• Insulating Material: Wemid (PA 66)
• Colour: Grey/Blue/Green-yellow
• Wire Size (Solid): 0.5 - 6 mm²
• Wire Size (Flexible): 0.5 - 4 mm²
• Wire Size (AWG): 20 - 10 AWG
• Stripping Length: 10 mm
• Tightening Torque: 0.8 - 1.2 Nm
• Operating Temperature: -50 °C to 120 °C
• Pollution Degree: 3
• Approvals: VDE

Recommendations

For optimal performance, use with copper conductors and ensure proper tightening torque. Suitable for use in environments with pollution degree 3. Always follow local electrical codes and regulations.
