Water Pump Gardena 19106-20

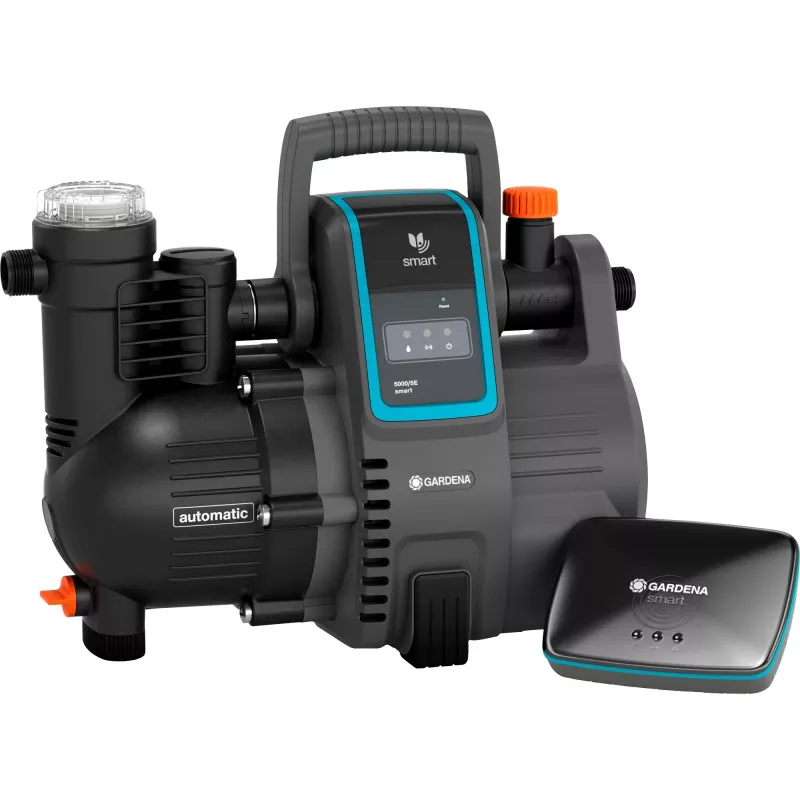

The GARDENA smart Pressure Pump (Water Pump Gardena 19106-20) is a compact, network-capable pump for house and garden use. Designed for domestic service water supply, toilet flushing, washing machines and time-controlled garden irrigation, the pump is part of the GARDENA smart system and works together with the included smart Gateway and the GARDENA smart App. It is driven by a 1,300 W jet motor and delivers up to 5,000 litres per hour with a maximum operating pressure of 5 bar and delivery height up to 50 m. The unit features an innovative non-return valve, an integrated low-quantity programme and a foldable carrying handle for transport and space-saving storage. IPX4 water resistance and compact dimensions make it suitable for outdoor and utility-room installation.

Advantages

The pump provides reliable, quiet pumping with a high flow rate of up to 5,000 l/h and a robust 1,300 W motor. Built-in non-return valve ensures fast suction while the low-quantity programme enables stable operation at low delivery rates. Integration into the GARDENA smart system via the included smart Gateway and app offers remote status monitoring, pressure and delivery volume readouts, and fault information on a smartphone or tablet. A foldable handle simplifies transport and storage, and the IPX4 protection class provides basic water resistance for garden and utility-room environments.

Suitable for

• Domestic service water supply
• Toilet flushing and washing machine supply
• Time-controlled garden irrigation
• Small-scale water transfer and pressure boosting

Key specifications

• Brand: GARDENA
• Model / MPN: 19106-20
• Power: 1,300 W
• Max flow rate: 5,000 l/h
• Max operating pressure: 5 bar
• Max delivery height: up to 50 m
• Protection class: IPX4
• Dimensions (W x H x D): 340 x 470 x 340 mm

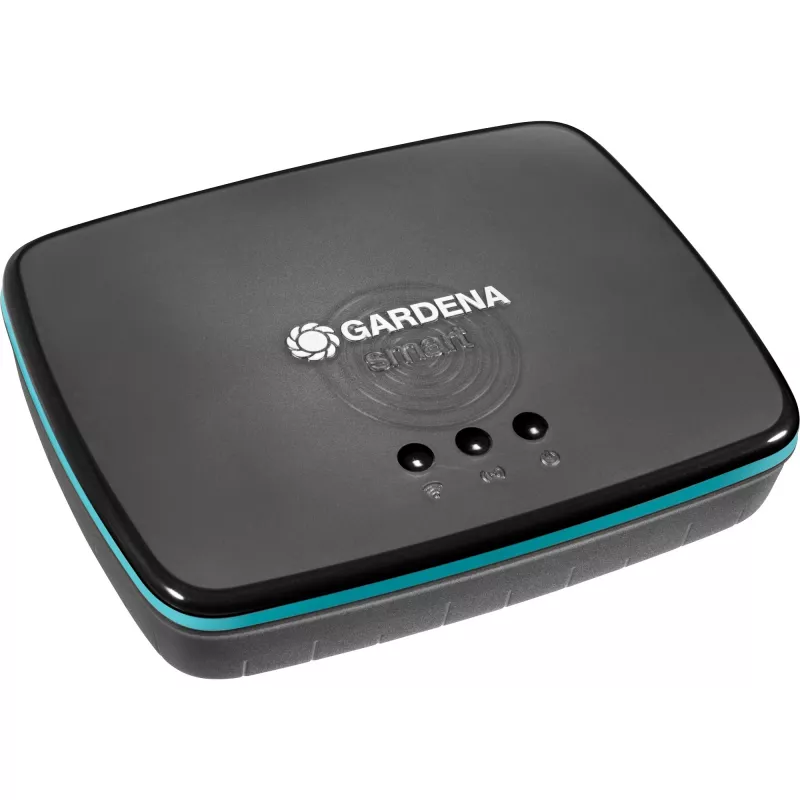

• Includes: smart Gateway (for GARDENA smart system integration)

How to use

Install the pump on a stable, level surface close to the water source and connect inlet and outlet hoses according to the manufacturer’s instructions. Ensure correct electrical connection and grounding following local regulations. Use the GARDENA smart App to register the device through the included smart Gateway; the app provides live data on pressure, delivery volume and device status and allows time-controlled irrigation scheduling. For suction from wells or tanks, prime the pump if required and check the non-return valve and fittings for tightness before starting. Observe the integrated low-quantity programme when operating at low flow rates.

Recommendations

For reliable long-term operation, protect the pump from frost, avoid running dry, perform regular checks of hoses and fittings, and follow the maintenance instructions in the GARDENA manual. Use the smart App to monitor performance and schedule irrigation to match seasonal needs.
