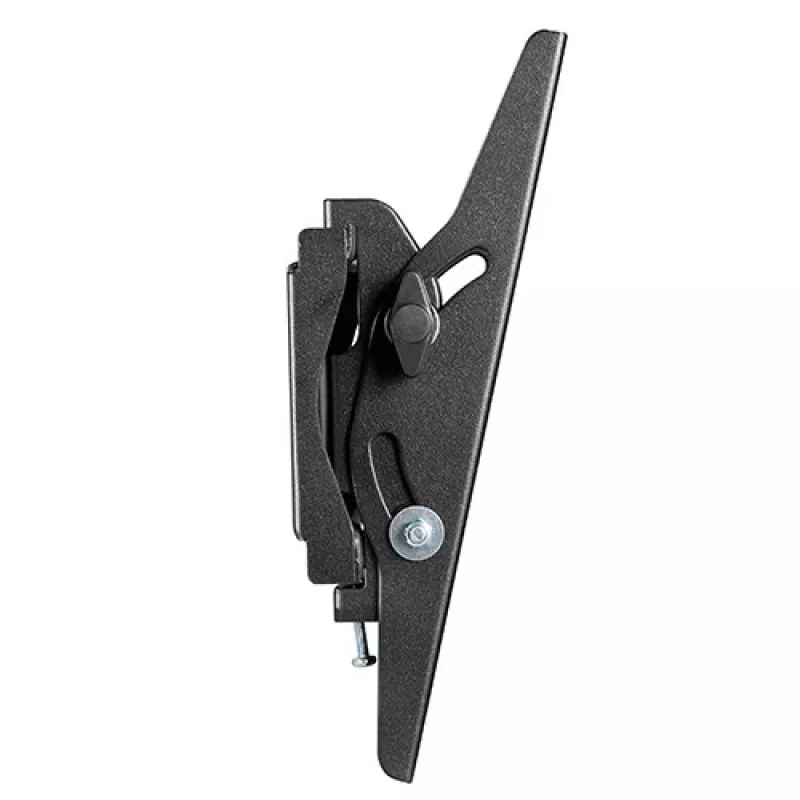

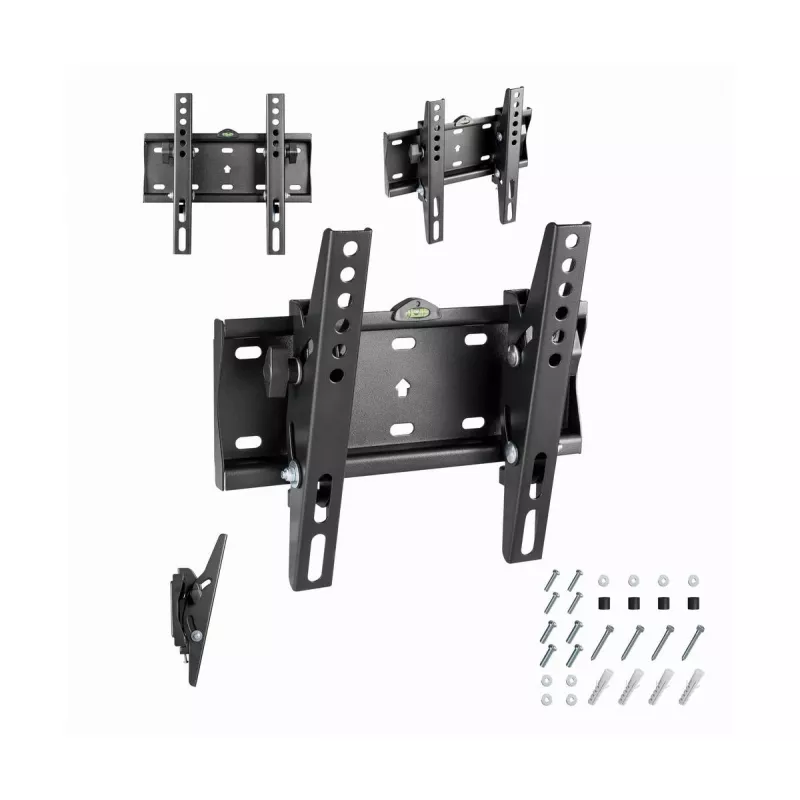

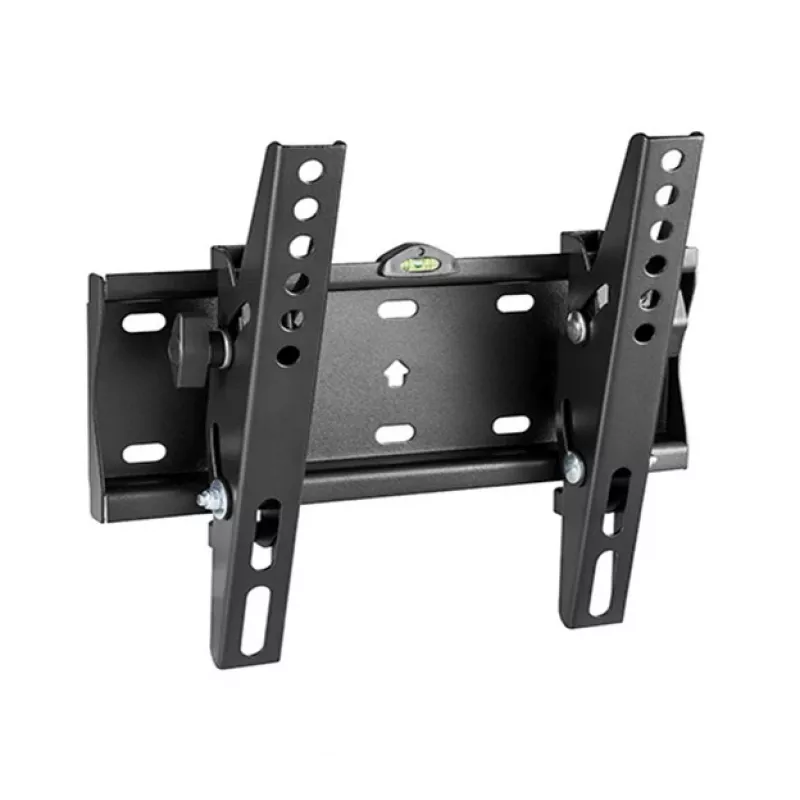

Wall TV mount Gembird WM-42T-02 for 23 inch–42 inch TVs, tilt -12°/+12°, VESA 75x75–200x200, 30 kg, black, 5.3 cm

The Gembird WM-42T-02 is a black TV mount designed for flat-panel screens from 23" to 42". It supports a maximum load of 30 kg and fits VESA patterns from 75x75 mm up to 200x200 mm. The bracket allows a tilt adjustment between -12° and 12° and holds the display at a distance of 5.3 cm from the wall.

Advantages

The mount offers a compact low-profile design with a fixed short distance to the wall, a tilt range for better viewing angle adjustment, and compatibility with common VESA standards for easy installation. It is constructed to carry screens up to 30 kg while keeping installation straightforward.

Suitable for

• Mounting LED/LCD TVs sized 23"–42"
• Rooms where a low-profile wall mount is preferred
• Displays with VESA patterns from 75x75 mm to 200x200 mm

Key specifications

• Maximum screen size: 42"
• Maximum load capacity: 30 kg
• Supported VESA: 75x75 mm to 200x200 mm
• Tilt range: -12° to 12°
• Distance to wall: 5.3 cm
• Colour: Black
• Product weight: 1 kg

How to use

Attach the mount to a suitable wall using appropriate anchors and screws for the wall material, then fix the TV to the bracket following the VESA hole pattern that matches the display. Adjust the tilt within the -12° to 12° range to obtain the desired viewing angle. Ensure all fasteners are tightened and the total weight does not exceed the 30 kg capacity.

Recommendations

Check the TV’s VESA pattern and weight before installation, use wall anchors rated for the wall type, and tighten all mounting hardware. For safety, have two people lift and secure screens above shoulder height.
