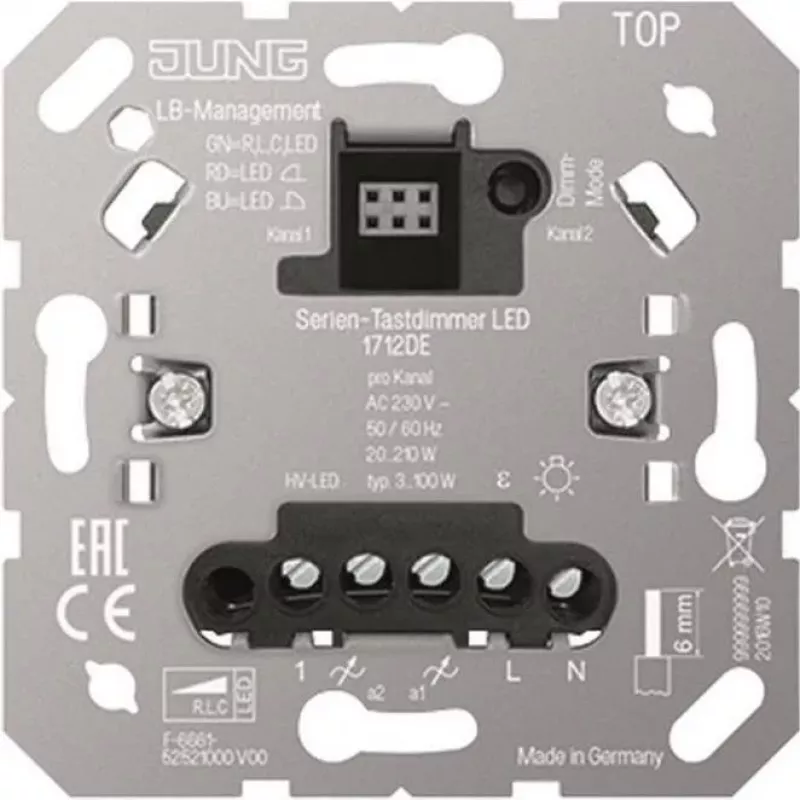

Wall-mounted series push-button dimmer jung 1712DE — series dimmer for lighting control (model 1712DE)

jung 1712DE is a wall-mounted series push-button dimmer designed for integration into series wiring to control lighting levels. Intended for installation in electrical switch systems, this series dimmer enables push-button operation for switching and stepless dimming of compatible lamps. The compact design fits standard wall boxes and is suitable for centralized or local lighting control in residential and commercial interiors.

Advantages

The device offers reliable push-button control for switching and dimming, compatible with common lamp types supported by the system. Its series-wiring capability allows multiple control points to be combined in a single circuit, enabling flexible placement of controls without additional wiring runs. The product's form factor and mounting method make it suitable for retrofit and new installations where a wall-mounted series dimmer is required.

Suitable for

Key specifications

How to use

Install the series dimmer in accordance with electrical installation standards and the wiring layout of the series control circuit. Connect the unit to the series wiring and to the load (lighting) as per the system requirements, ensuring power is isolated during installation. Operate the dimmer via the push-button: short presses generally toggle the load on and off, while press-and-hold or repeated actuations provide stepless dimming where supported by the connected lamps and control system. Commissioning and behavior may depend on the overall series wiring configuration and the other devices in the circuit.

Recommendations

Use compatible lamp types and follow the manufacturer's guidance for series wiring to ensure reliable dimming performance. Verify system compatibility before installation and ensure any existing switchgear or control modules in the series circuit are intended to work with a push-button dimmer. For safety and compliance, perform installation and commissioning by a qualified electrician.
