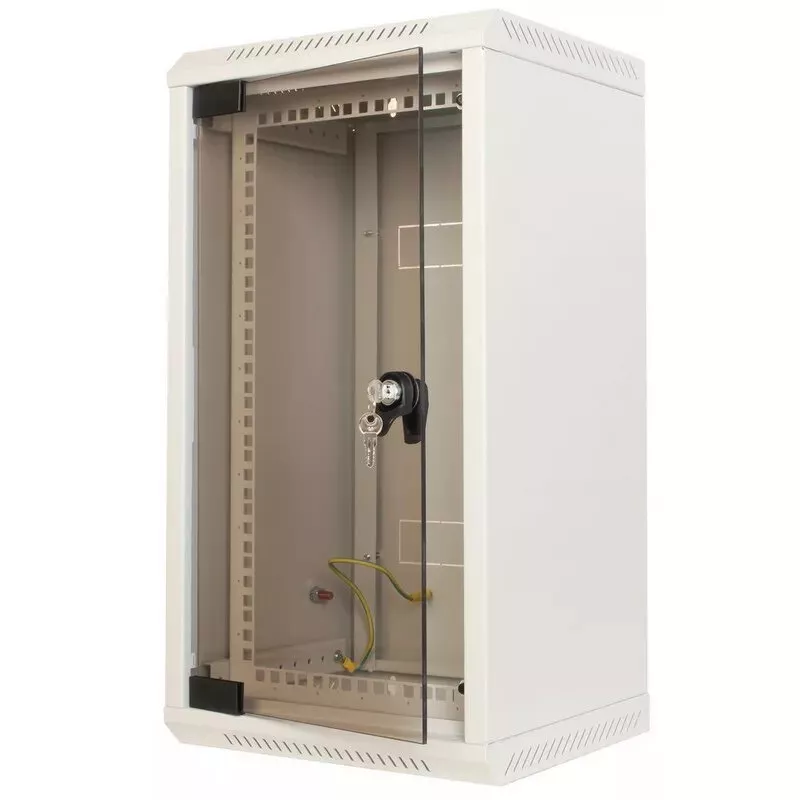

Wall mounted rack Triton RKA-10-AS4-CAX-X1 — 570×310×360 mm, 20 kg capacity, stainless steel

Triton RKA-10-AS4-CAX-X1 is a compact wall mounted rack designed for small network and server installations. The cabinet measures 570×310×360 mm, has an actual product weight of 13 kg and a maximum supported equipment load of 20 kg. Finished in stainless steel, it combines a welded, stable construction with a hybrid mounting concept that supports both 10" and 19" equipment — up to 10U when used as a 10" rack or up to 5U for vertically mounted 19" devices. Perforation in the top and bottom of the enclosure and adjustable mounting frame positions enable effective cooling and flexible equipment placement in confined spaces.

Advantages

The welded stainless steel body provides durable, vibration-resistant support for compact IT devices while keeping overall dimensions small for installation in furniture or on walls. The hybrid design allows a smooth transition from 10" to 19" installations without replacing the cabinet, and the adjustable mounting frame offers eight depth positions to fit different device sizes. Breakout-type blanking panels at the top, bottom and rear provide covered cable openings for tidy cable entry and strain relief. Standard glass door offers visual access to status indicators; alternative sheet or perforated doors are available.

Suitable for

• Small office/home office (SOHO) network equipment such as switches and patch panels
• Compact server or appliance installations where floor space is limited
• Installation inside furniture, utility rooms or on walls in commercial and residential sites
• Environments requiring a transition between 10" and 19" device formats

Key specifications

• External dimensions: 570 mm (H) × 310 mm (W) × 360 mm (D)
• Maximum supported equipment load: 20 kg
• Product weight: 13 kg
• Material and finish: stainless steel construction
• Mounting options: supports 10" equipment up to 10U or vertically mounted 19" devices up to 5U
• Adjustable mounting frame: 8 pre-prepared depth positions within the cabinet
• Ventilation: perforation in top and bottom for passive cooling
• Cable access: breakout-type blanking panels at top, bottom and rear
• Door type: standard glass door; sheet or perforated doors available

How to use

Mount the cabinet securely to a suitable wall surface using appropriate anchors and fasteners for the wall material and load. Choose the mounting frame configuration (10" or 19") and set the frame depth in one of the eight pre-prepared positions to match equipment depth. Install devices such as switches, patch panels or compact appliances into the selected rack format, and route cables through the breakout-type blanking panels to maintain tidy cable management. Ensure ventilation openings are not obstructed and that the total equipment weight does not exceed 20 kg.

Recommendations

For reliable operation, place the rack where ambient airflow is adequate and avoid enclosing it in fully sealed cabinets. Distribute equipment weight evenly across mounting points, use proper wall anchors and check door type compatibility with installed devices. For installations transitioning from 10" to 19" devices, verify mounting orientation and clearance for vertically mounted 19" units.
