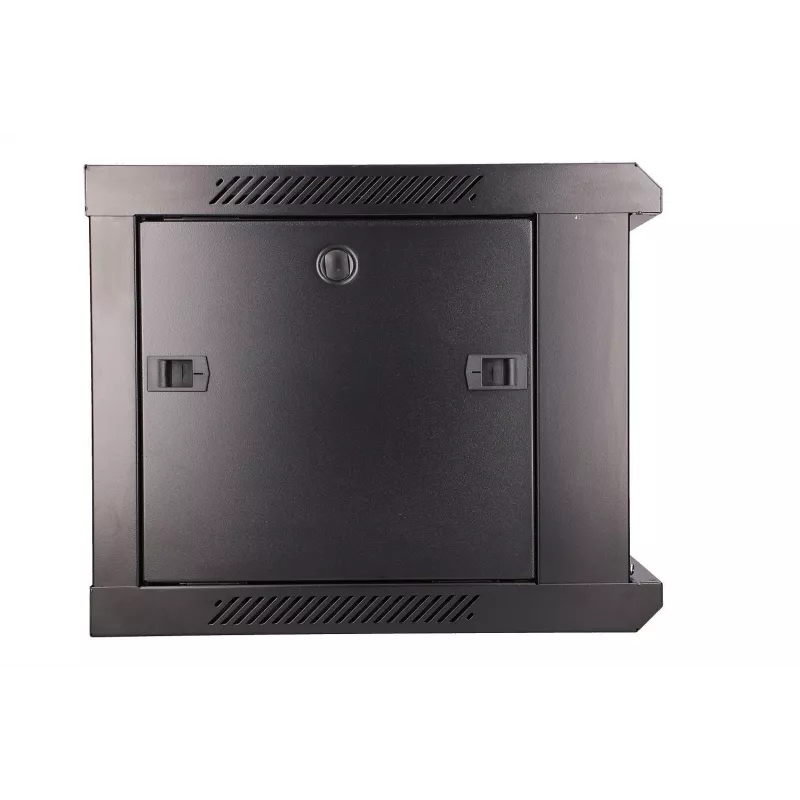

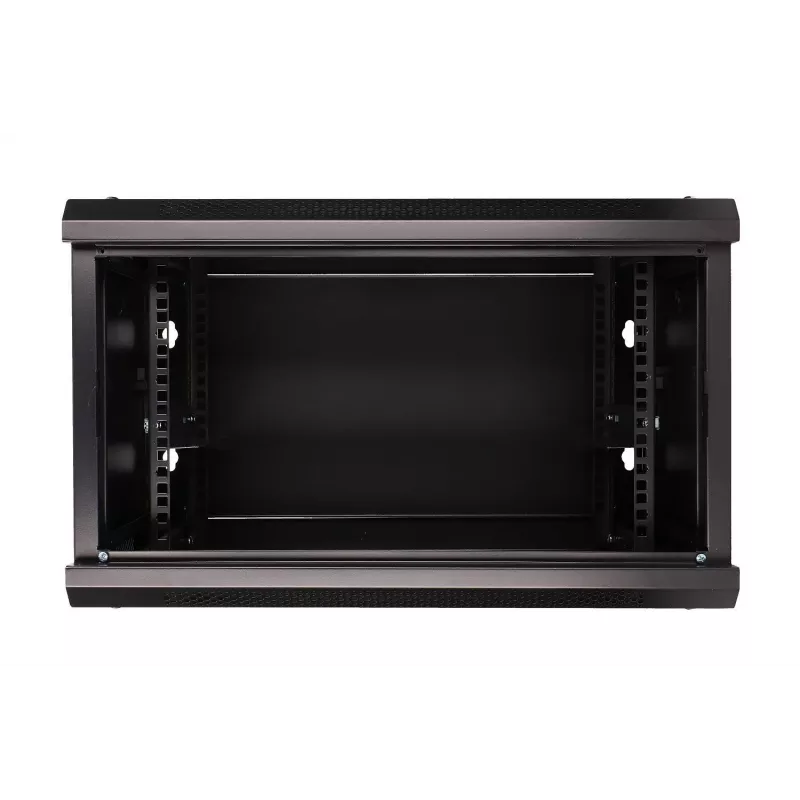

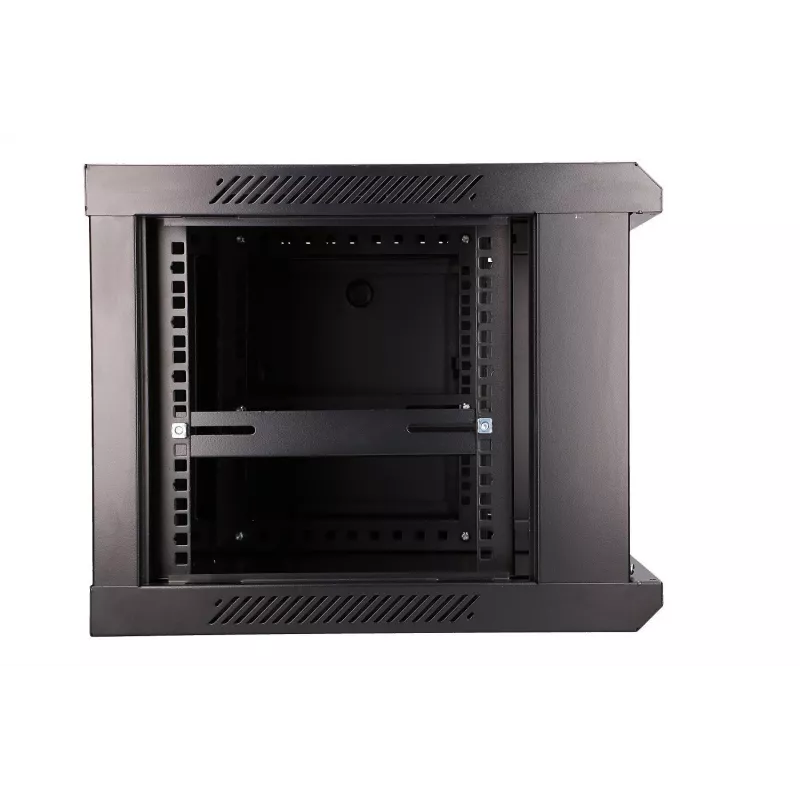

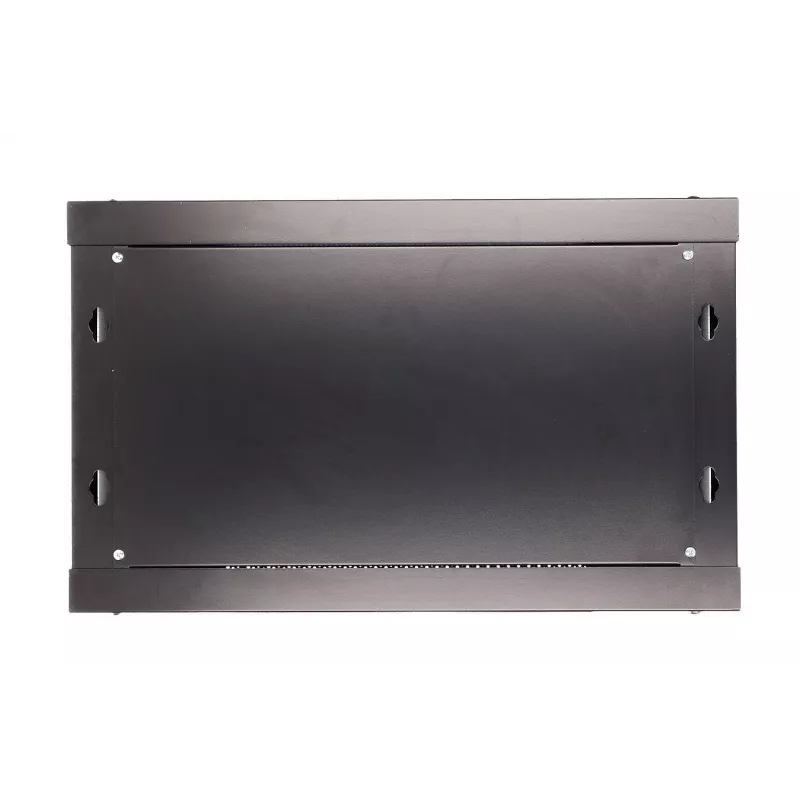

EXTRALINK 6U rack, 600 × 450 Black - Home Networking Under Control
Cable clutter can hinder the daily operation and servicing of equipment, as well as detract from the aesthetics of the room. The Extralink 6U 600x450 rack cabinet in black allows you to easily organize cables and equipment, enclosing them in a safe and neat space. The wall-mounted design saves space while providing easy access to the entire network installation or CCTV system.
Versatile Use In Various Spaces
The Extralink 6U 600x450 black rack cabinet will work well in the office as well as in a server room, workshop or home network installation. Thanks to its wall-mounted design, it can be placed in places where space saving and cable order are important. Solid workmanship and a lockable front door guarantee the safety of the equipment regardless of the environment in which it is used.
Secure Access And Device Protection

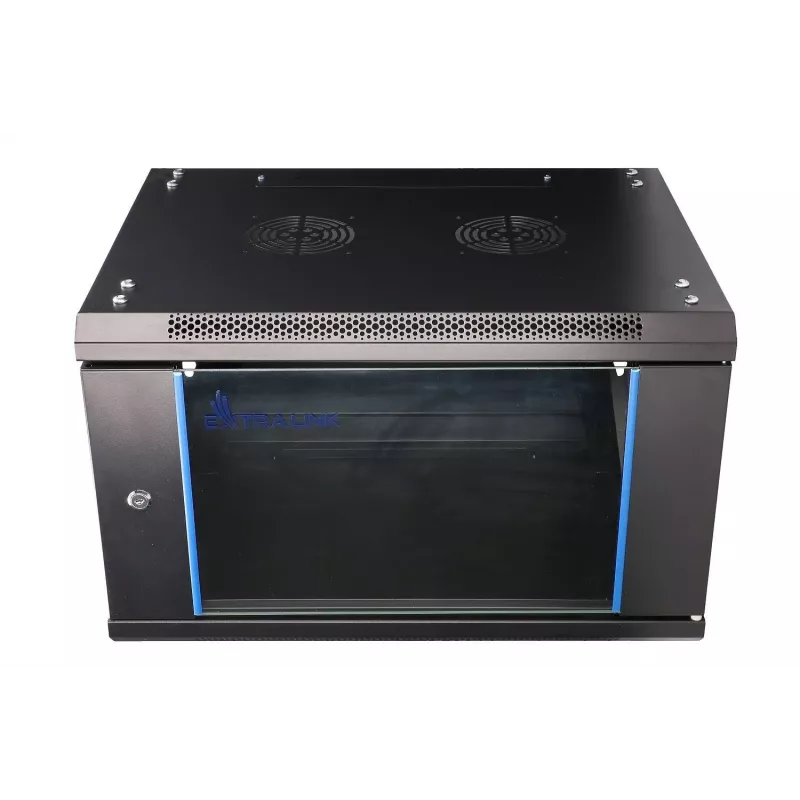

The Extralink 6U 600x450 rack cabinet has a tempered glass front door that can be opened for servicing equipment or completely removed for installation. A keyed lock protects the contents from unauthorized access, which is important in offices and server rooms. This keeps network equipment, CCTV devices and cabling safe and organized.
Easy Assembly In A Few Minutes
The Extralink 6U 600x450 rack is designed for wall mounting and comes with a full set of screws and clear instructions. The installation process is simple and does not require specialized tools or the help of a professional - you can do it yourself. Such a solution saves time and allows you to quickly prepare the rack for use in your home, office or server room.
Cabinet construction - drawing
Main features
- Removable side panels
- Standard 19'' mounting, welded frame, reliable construction
- Wall or upright mounting
- Self-assembly frame design - easy to carry and transport, reducing shipping costs
- Tempered glass front door with a rotation angle of more than 180 degrees
- Easy installation (patent)
- Cable entry holes on both top cover and bottom panel
Solid Construction And Thoughtful Design

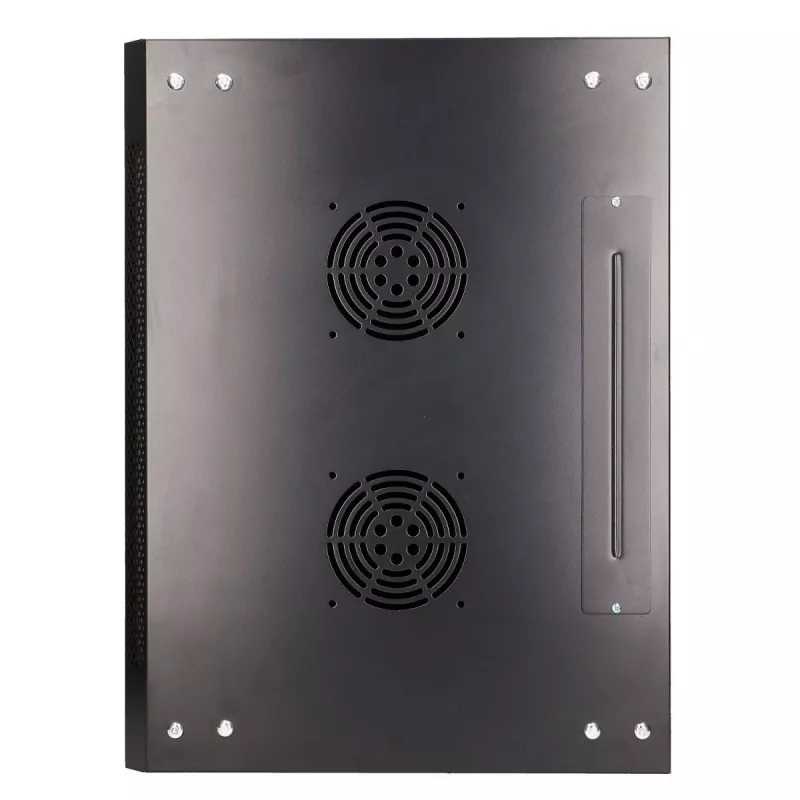

The Extralink 6U 600x450 rack cabinet is made of cold-rolled sheet steel for high strength and durability. The welded frame increases stability, and removable side panels allow easy access to the interior during installation and servicing. There are two built-in cooling holes in the ceiling of the cabinet, which can be used to mount a fan to improve air circulation.
Wide Selection of Extralink Rack Cabinet Models
The Extralink 6U 600x450 model is part of a series of rack cabinets available in 4U to 18U variants, allowing you to select the capacity of the structure to suit your individual needs. All models maintain consistent aesthetics and robust construction, regardless of size. This allows you to create a unified system for mounting equipment in a variety of spaces - from small offices to expansive server rooms.
Compact Dimensions And Functionality
The Extralink 6U 600x450 rack cabinet has an overall cabinet height of 365 mm, a width of 600 mm and a depth of 450 mm. With these dimensions, it will fit into space-constrained areas, while providing adequate capacity for network equipment and accessories. It's a practical choice for small offices, home server rooms and spaces where ergonomic wall space is important.
| Key lock | Tak |
| Rack rails | Tak |
| Frame type | Closed |
| Size (imperial) | 19,0000 |
| Height | 370,0000 |
| Width | 600,0000 |
| Depth | 450,0000 |
| Product colour | black |
| Maximum weight capacity | 60,0000 |
| Soundproof | Nie |
| Rack capacity | 6u |
| Type | Wall mounted rack |
| Removable back door | Nie |
| Removable front door | Tak |
| Back door construction | metal |
| Front door construction | glass_steel |
| Side panel construction | metal |
| Side panel key lock | Tak |
| Back door key lock | Nie |
| Front door key lock | Tak |
| Side panels included | Tak |
| Cooling type | active |
| Material | glass, metal |
| Removable side panels | Tak |
How to use
Mount the cabinet securely to a suitable wall surface using appropriate anchors and fixings rated for the combined weight of the cabinet and installed equipment. Install networking or CCTV equipment on the pre-marked 19" vertical rails to the required 6U positions, secure panels with snap fasteners and use the supplied locks for physical protection. Use the top fan positions for active cooling if needed and route cables through the top cable entry or through panel openings for organised management.
Recommendations
For safe operation, ensure the wall and fixings support the cabinet plus installed devices (recommended maximum load 60 kg). Leave adequate ventilation clearance around the cabinet, fit fans if ambient temperatures are high, and secure cables to avoid strain on connectors.
