Freestanding rack Extralink EX.14398 22U Black Key lock

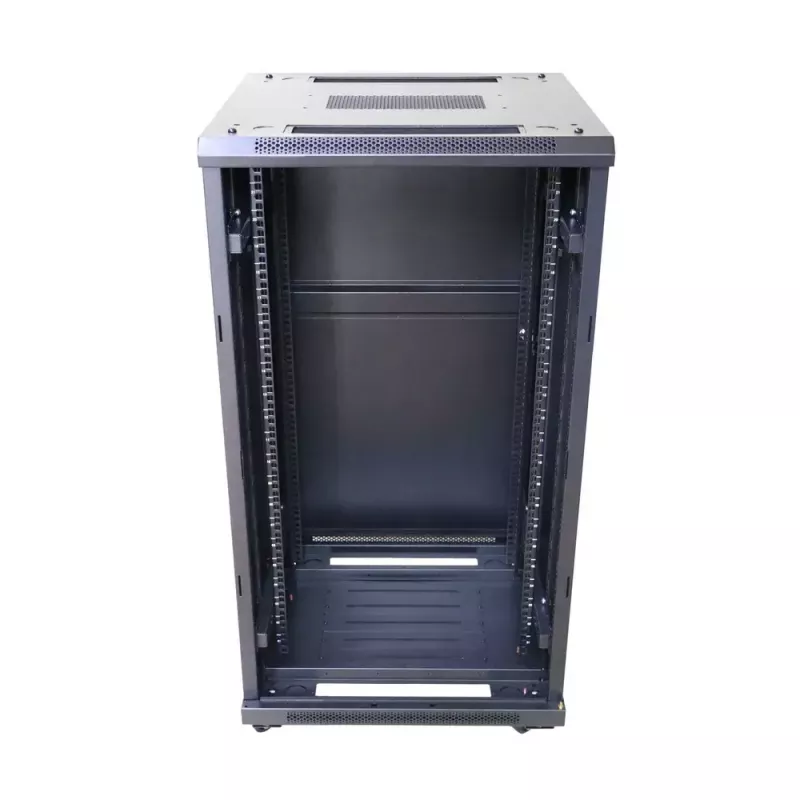

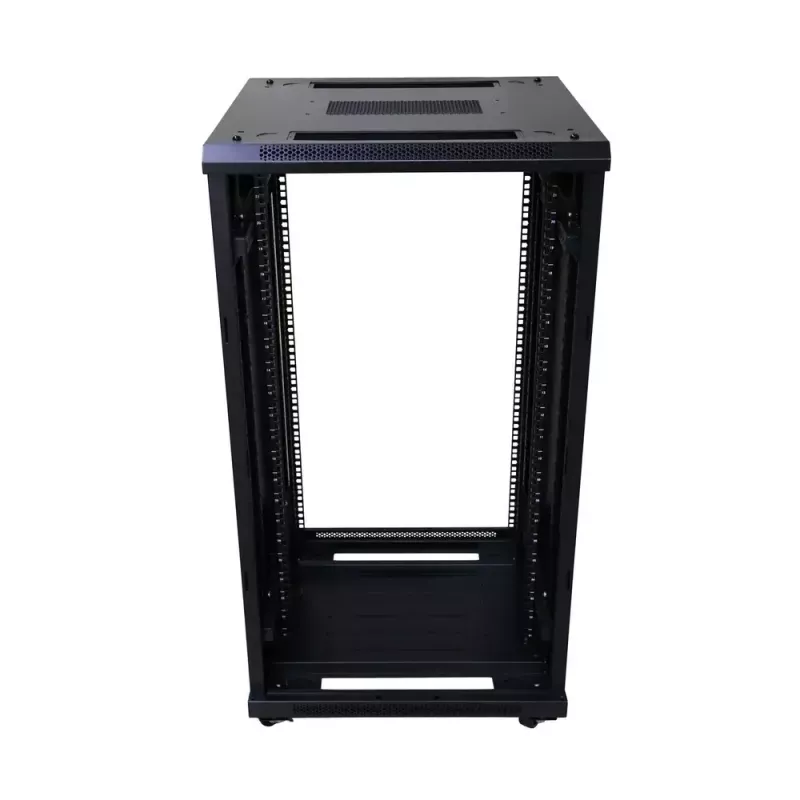

The Extralink EX.14398 freestanding rack cabinet is a 22U black network cabinet designed for offices, server rooms and CCTV control rooms. Constructed from cold-rolled steel with a tempered glass front door that can be hinged to open left or right, the cabinet provides organised space for networking and server equipment. Its external dimensions are 1100 mm height, 600 mm width and 800 mm depth, and it includes a keyed lock for physical security.

Advantages

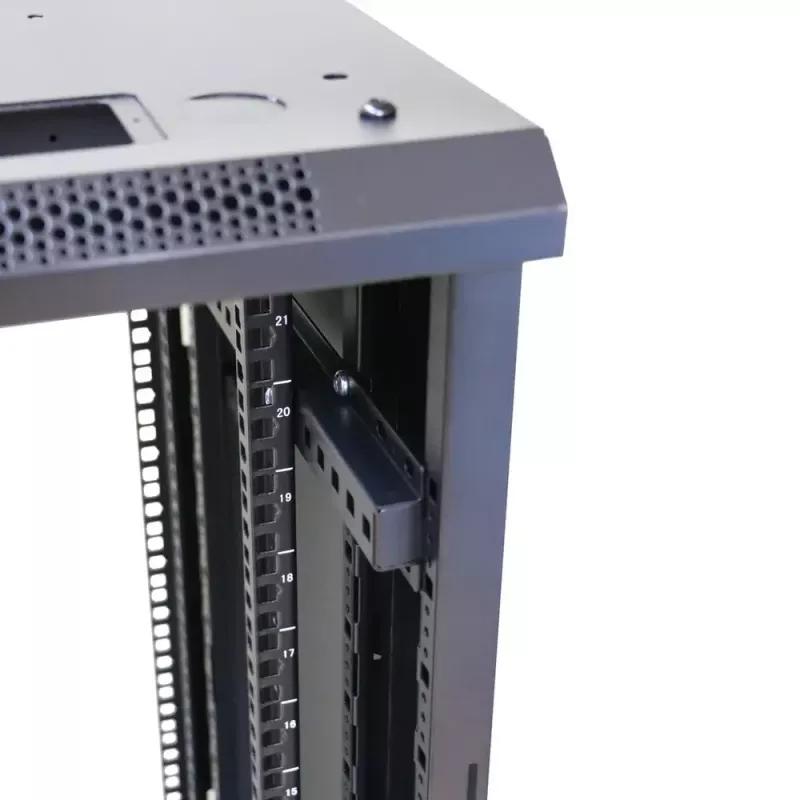

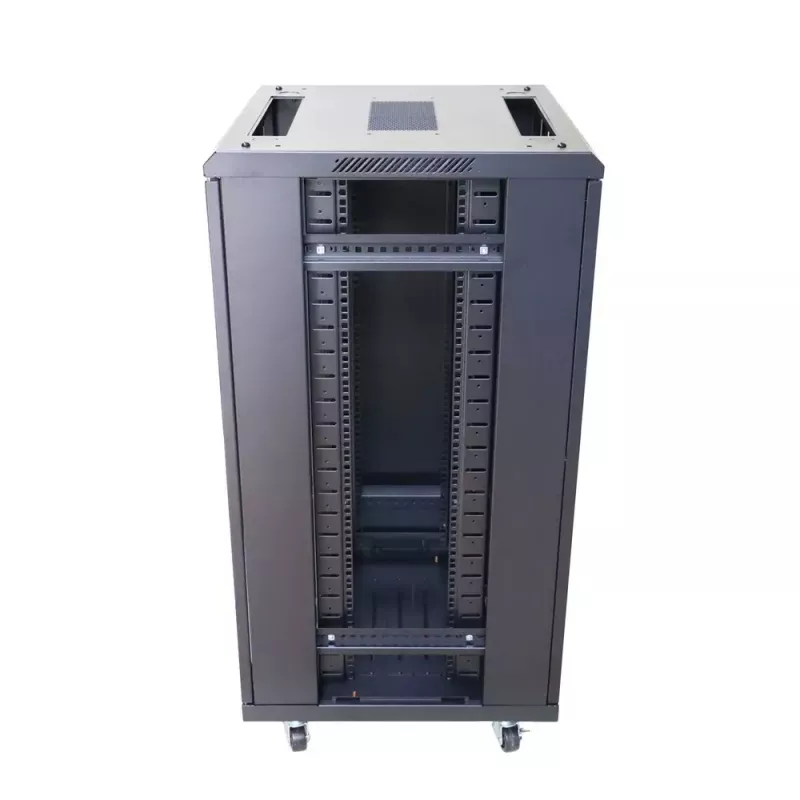

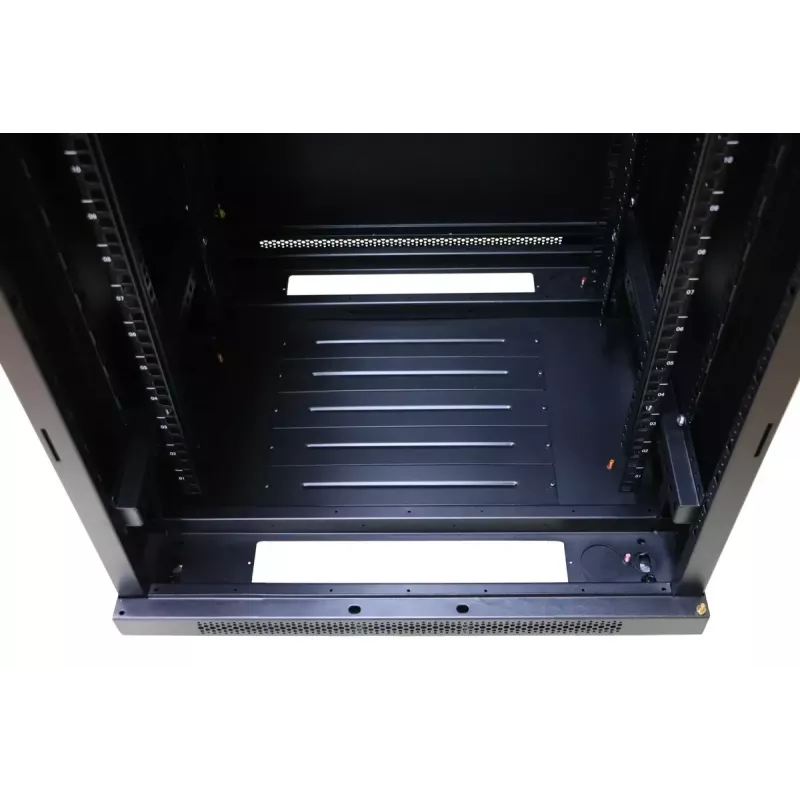

The cabinet offers clearly marked vertical rails up to 22U for straightforward device mounting, snap fasteners on removable side panels for easy access and maintenance, multiple cable entry points on the lower panel to reduce cable strain and tangling, and a ventilation outlet in the ceiling along with two additional cable passages. The steel construction and tempered glass door provide durability and visibility of installed equipment.

Suitable for

• Small and medium office network racks
• Server rooms and IT closets with 19" equipment
• CCTV and control room equipment housing
• Environments requiring keyed physical access control

Key specifications

• Rack capacity: 22U
• Height: 1100 mm
• Width: 600 mm
• Depth: 800 mm
• Colour: Black
• Front door: Tempered glass, reversible hinge (left/right)
• Lock: Keyed lock included

How to use

Place the freestanding rack cabinet on a level surface and position it where ventilation and cable routing are appropriate. Remove the side panels using the snap fasteners to install 19" equipment on the marked vertical rails up to 22U. Route cables through the lower panel culverts and the two ceiling passages to minimise strain and maintain order. Close and lock the front door after installation to secure equipment.

Recommendations

For safe operation, distribute mounted equipment to maintain balanced weight, allow clearance for ventilation around the cabinet, and ensure cables are organised to avoid blocking air passages; follow manufacturer instructions for maximum load and grounding requirements.
