Wall mounted rack EFB Elektronik 691709FGR.2

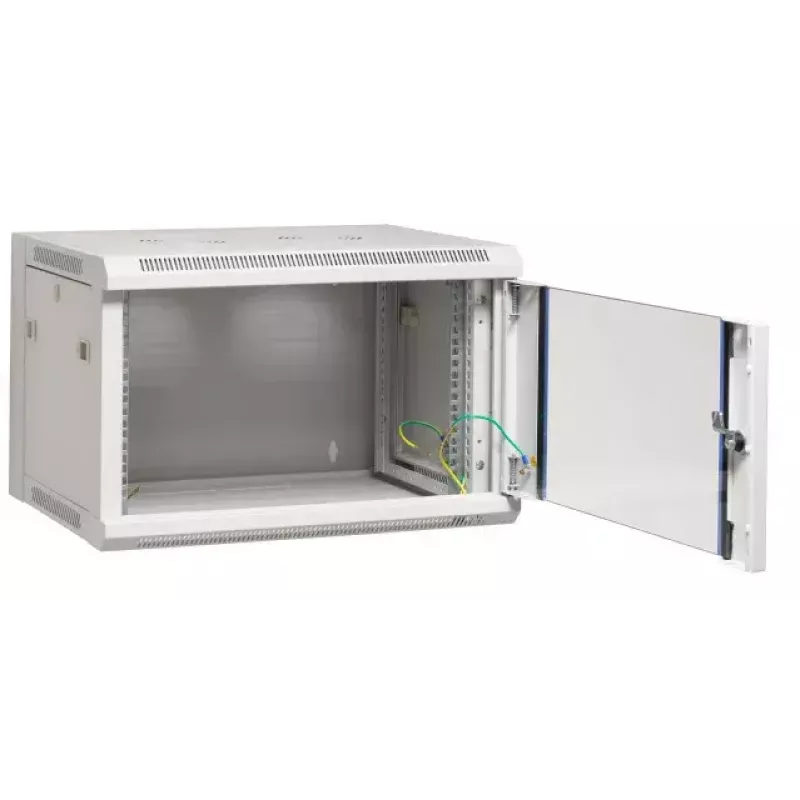

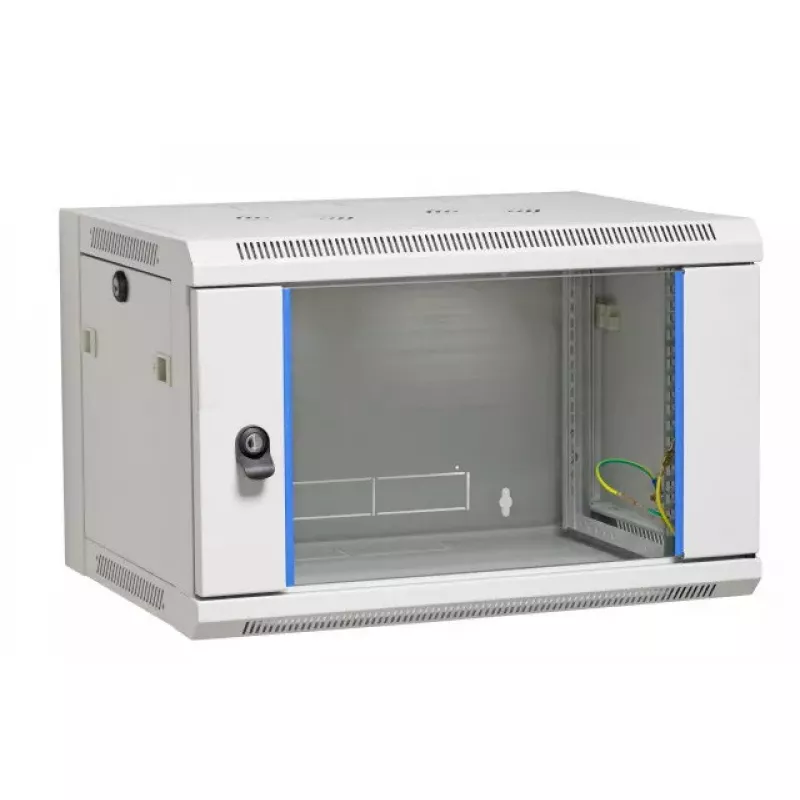

Wall mounted rack EFB Elektronik 691709FGR.2 is a steel-sheet housing with a screwed frame, delivered unassembled and self-ventilated. The unit includes a removable side wall with quick fastener, a roof, bottom and rear wall with pre-punched openings for cable entry (230 x 41 mm) and roof preparation for mounting 2 x single fans. Inside are 2 x 19" rails on the front side with adjustable depth. The front door has a window of certified safety glass (4 mm) and a lock. Cabinet parts are completely earthed and the rack has a maximum load of 60 kg and protection degree IP20. The paint finish is RAL7035 (light grey). Included accessories: 2 x key. Delivery: unassembled in transport packaging (1 carton).

Advantages

The wall mounted rack offers a compact steel construction with depth-adjustable front rails for flexible equipment mounting and a front windowed door for convenient visual inspection. Pre-punched cable entry openings and roof provisions for two fans simplify installation of cabling and active cooling. Complete earthing of cabinet parts and a lockable safety-glass door provide secure, standard-compliant housing for network components.

Suitable for

• Mounting and organizing 19" network equipment in offices and small server rooms
• Indoor network installations requiring IP20 protection
• Rack-mounting switches, patch panels and compact servers with limited weight (up to 60 kg)

Key specifications

• Brand: EFB Elektronik
• Model: 691709FGR.2
• Dimensions (W×D×H): 570 × 600 × 500 mm
• Material: Steel sheet housing with screwed frame
• Rack rails: 2 × 19" front-sided, depth-adjustable
• Cable entry: Pre-punched openings 230 × 41 mm (roof, bottom, rear)
• Fan provision: Roof prepared for 2 × single fan (Art.-No. 691664)
• Front door: Safety glass window (4 mm) with lock
• Earthing: Cabinet parts completely earthed
• Max. load: 60 kg
• Protection degree: IP20
• Finish: RAL7035 (light grey)
• Included accessories: 2 × key
• Delivery: Unassembled in transport packaging (1 carton)

How to use

Unpack the carton and assemble the rack following the supplied assembly instructions. Attach the removable side wall with the quick fastener and mount the depth-adjustable 19" rails to fit your equipment. Route cables through the pre-punched openings in the roof, bottom or rear. If active cooling is required, mount up to two single fans on the prepared roof positions (use compatible fans, Art.-No. 691664). Install equipment on the front-sided rails, secure the door and connect earthing as part of the installation process.

Recommendations

Place the wall mounted rack on a suitable load-bearing wall and ensure secure anchoring. Do not exceed the maximum load of 60 kg. Use appropriate cable glands or brush strips for the pre-punched openings to maintain tidy cable entry and comply with workplace safety. For improved ventilation, consider installing the recommended fans and maintain clearance for air circulation.
