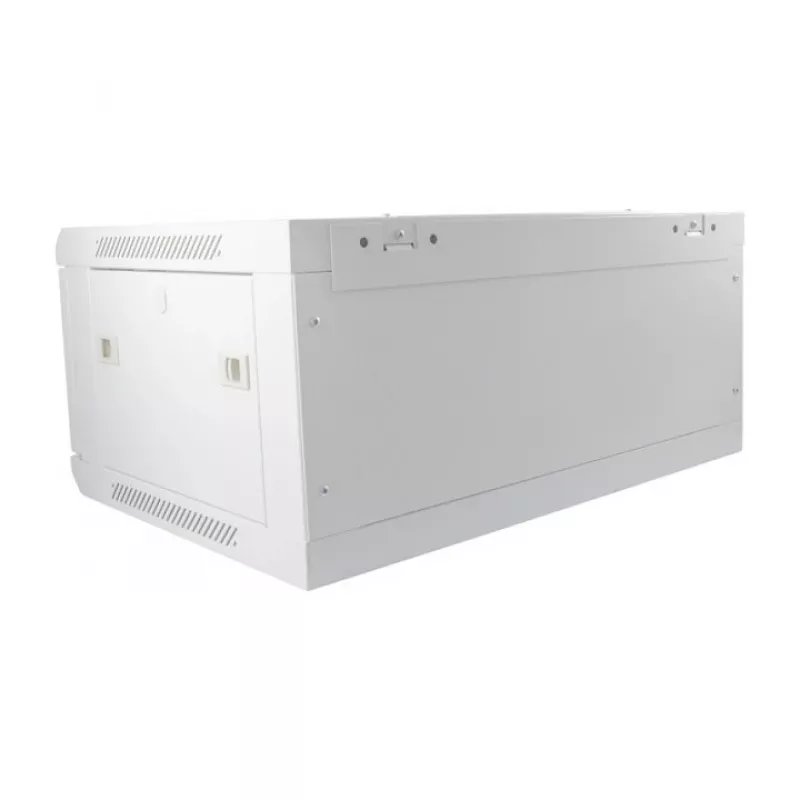

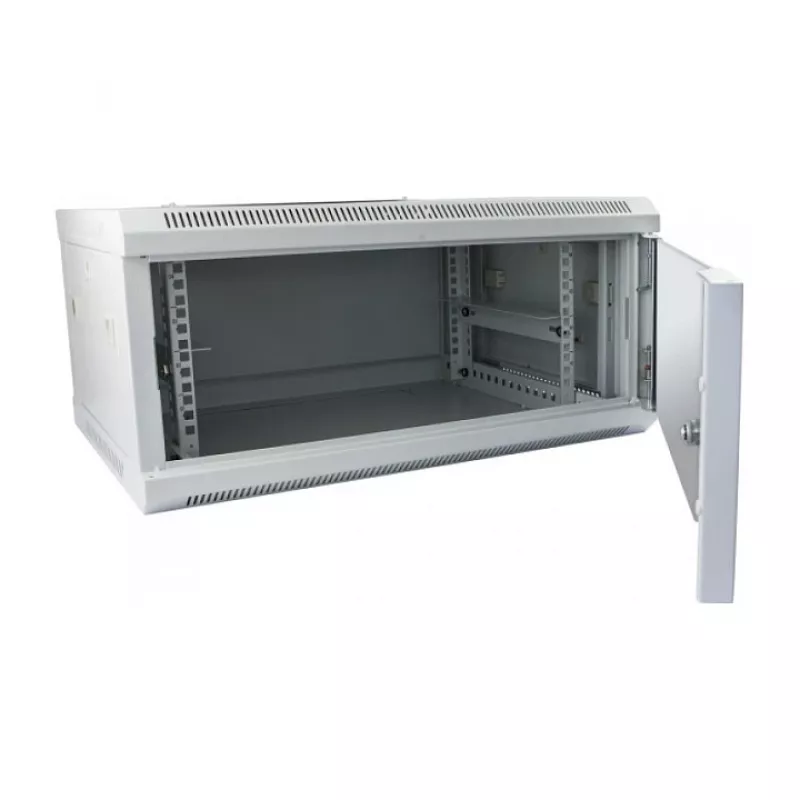

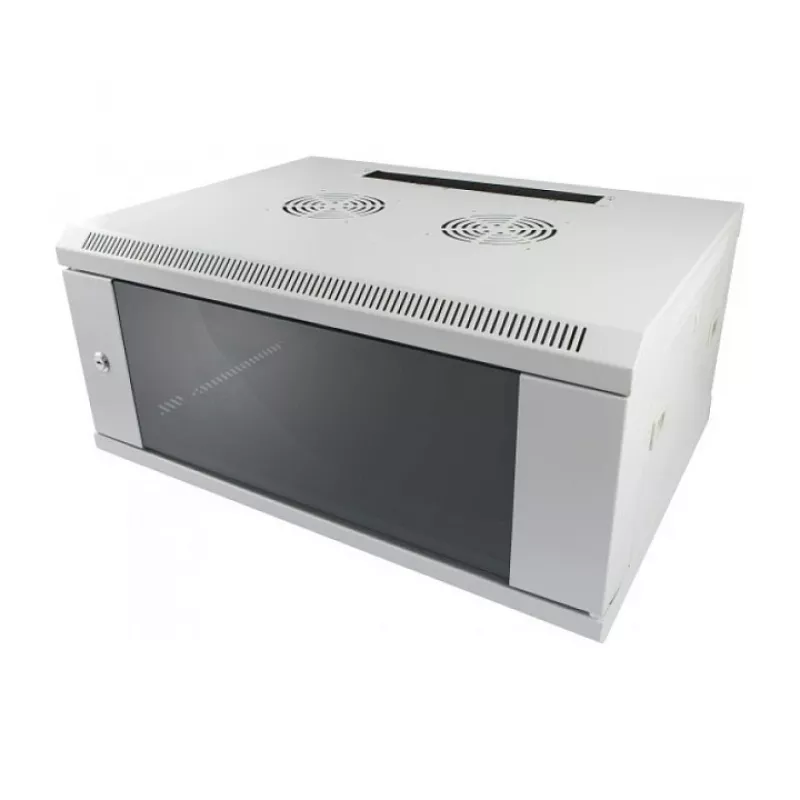

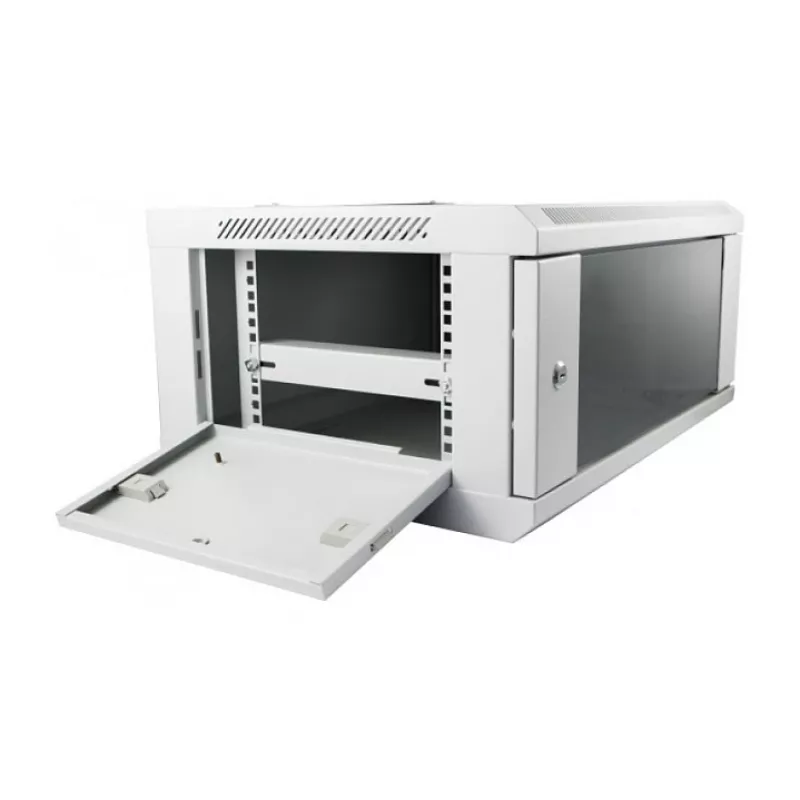

Wall-mounted rack cabinet ALLNET ALL-SMC6604GRAU 4U, grey, 50 kg capacity, key lock

ALLNET ALL-SMC6604GRAU is a wall-mounted 4U rack cabinet engineered for compact network and server installations. Constructed from steel and finished in grey, the enclosure provides secure mounting for switches, patch panels, small servers and other 19-inch compatible devices. The cabinet supports a maximum load of 50 kg and features a keyed lock for controlled access. With a net weight of 15 kg and a space-saving wall-mount design, it is intended for use in small server rooms, network closets and office IT cabinets where footprint and physical security are important.

Advantages

The steel construction offers structural rigidity while keeping the overall unit lightweight for wall mounting. Its 4U height accommodates standard 19-inch networking components in a compact vertical footprint. The keyed lock provides basic physical security to restrict unauthorized access. The cabinet’s neutral grey finish integrates with office or technical environments and simplifies device organization and cable routing.

Suitable for

• Patch panels and network switches in small network closets
• Compact server and appliance mounting in office environments
• Edge networking equipment for branch offices and retail sites
• Secure installation of power supplies and small UPS units

Key specifications

• Mounting type: wall-mounted, 19-inch compatible
• Rack height: 4U
• Material: steel enclosure
• Maximum load capacity: 50 kg
• Net weight: 15 kg
• Front access: keyed lock for controlled access
• Finish: grey

How to use

Install the cabinet on a suitable load-bearing wall using appropriate anchors and fixings rated for the combined weight of the cabinet and installed equipment. Mount 19-inch devices to the internal mounting rails, ensuring even weight distribution and secure fastening. Route network and power cables through available cable entry points, and use cable management accessories as needed to avoid strain on connectors. Close and lock the front door after maintenance or installation to maintain access control.

Recommendations

Ensure the wall surface and mounting hardware are rated for at least the cabinet’s maximum load plus a safety margin. Do not exceed the 50 kg load capacity; position heavier items lower in the cabinet to preserve stability. Keep ventilation clear and avoid installing high-heat equipment without additional cooling. Retain keys in a secure location and consider complementary security or monitoring measures for higher-risk installations.
