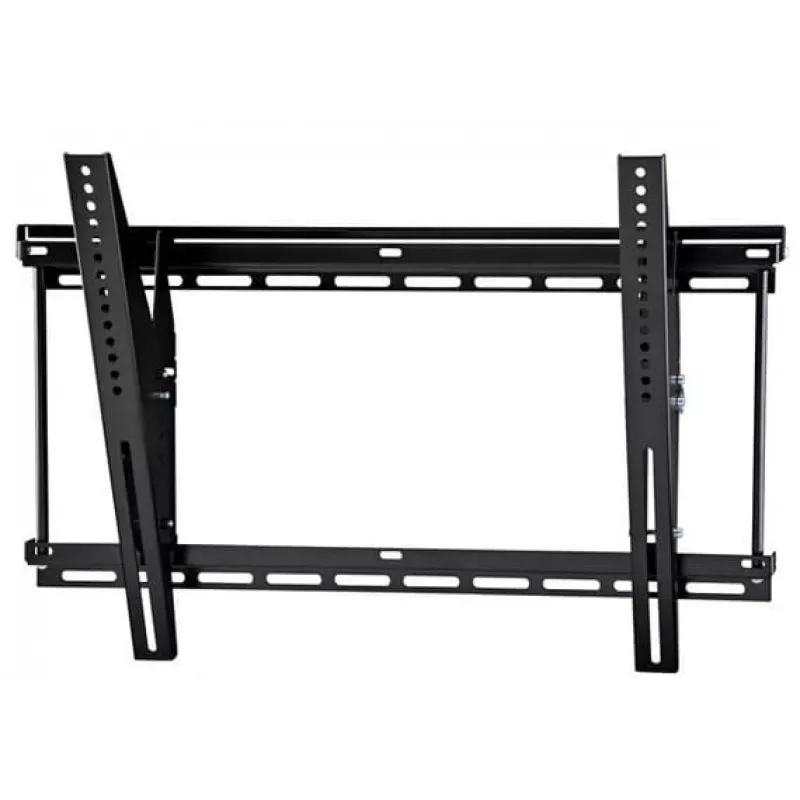

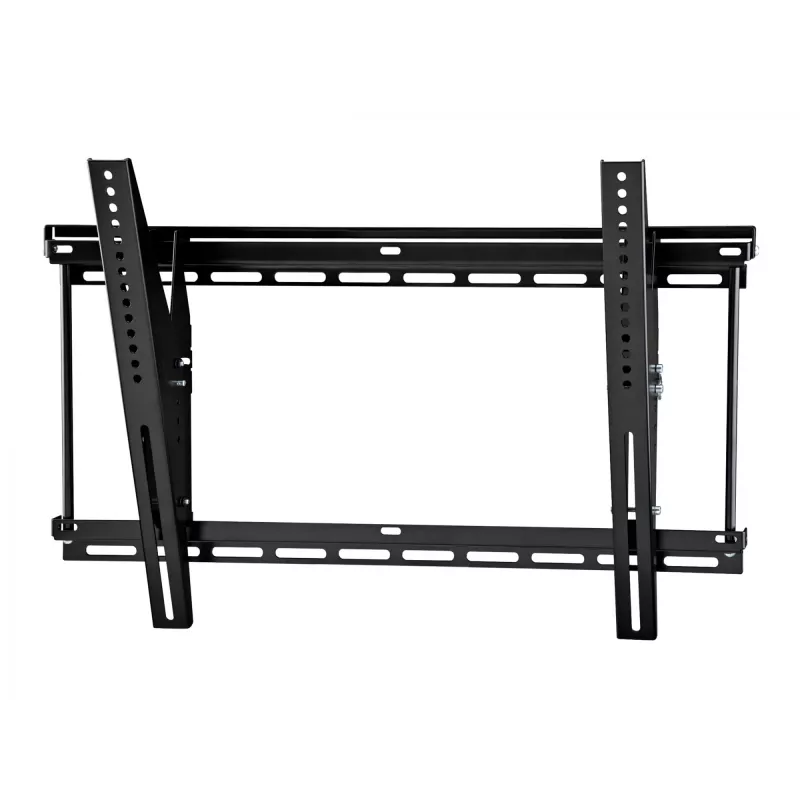

Wall Mount Ergotron Neo-Flex Tilting UHD 160 cm (63 inch) Black

The Ergotron Neo-Flex Tilting Wall Mount supports flat panels from 37" to 63" (94–160 cm) with a maximum load of 175 lbs (79 kg). The mount offers a tilt range up to 15° to reduce glare, universal rails for broad panel compatibility and an adjustable distance from the wall to suit different installation needs. Designed with Lift n’ Lock™ for easy attachment and a locking bar to secure the display, this black mount also provides open access to in-wall wiring and ships with a complete hardware kit.

Advantages

This tilting UHD wall mount provides a simple, reliable solution for mounting large flat panels. Adjustable tilt and tension control allow you to fine-tune viewing angle, while sliding lateral on-wall adjustment helps align the screen after installation. Universal rails and wide VESA support improve compatibility, and the Lift n’ Lock™ system speeds up attachment. The open architecture eases cable routing and the included locking bar enhances safety.

Suitable for

• Home living rooms and media rooms
• Conference rooms and meeting spaces
• Reception areas and public displays
• Classrooms and training rooms

Key specifications

• Screen size compatibility: 37"–63" (94–160 cm)
• Maximum weight capacity: 79 kg (175 lbs)
• Tilt range: 0° to 15° with tension adjustment
• Wall distance (adjustable): 6.9 cm to 17.8 cm
• VESA compatibility: 100 x 100 mm up to 600 x 400 mm
• Product colour: Black
• Product weight: 4.717 kg
• Manufacturer part number (MPN): 60-612
• EAN: 0698833017663

How to use

Choose a suitable mounting position on a solid wall and mark the fixing points according to the included template. Secure the wall plate using the supplied hardware, attach the universal rails to the back of the flat panel matching the VESA pattern, then use the Lift n’ Lock™ feature to hang the display on the wall plate. Adjust the tilt and tension to the desired viewing angle and use the sliding lateral adjustment to centre the screen. Fasten the locking bar to secure the panel.

Recommendations

For safe and reliable installation, mount on a stud or suitable masonry surface and follow the supplied instructions. Ensure the screen weight does not exceed 79 kg and check all fastenings periodically. If unsure about structural suitability, use a professional installer.
