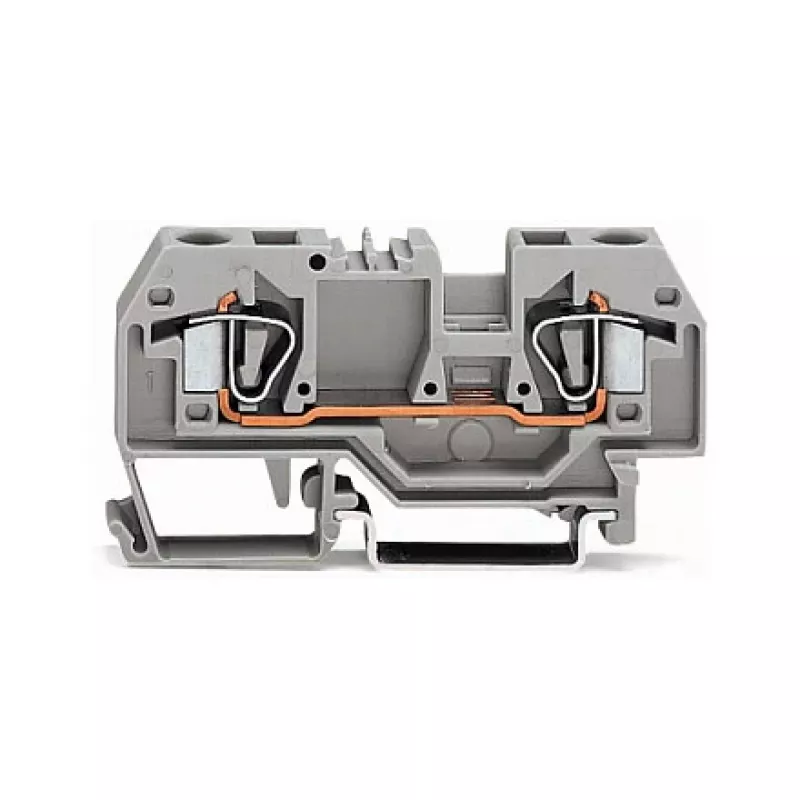

WAGO 282-901 3-Conductor CAGE CLAMP Terminal Block, 10 mm², Gray, DIN-rail 35

The WAGO 282-901 is a high-quality 3-conductor terminal block featuring the innovative CAGE CLAMP® connection technology. Designed for reliable and maintenance-free wiring, this terminal block is ideal for industrial and building automation applications. With a nominal cross-section of 10 mm² (AWG 8) and a rated voltage of 1000 V, it ensures safe and efficient power distribution.

Advantages

Tool-free operation with CAGE CLAMP® technology ensures fast and secure connections. The compact design saves space on the DIN-rail, while the polyamide housing provides excellent insulation and durability. Rated for up to 57 A and 1000 V, it meets high safety standards with approvals from VDE, UL, CSA, EAC, and KEMA-KEUR.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution and junction boxes
• Machine wiring and switchgear

Key specifications

• Connection Technology: CAGE CLAMP®
• Number of Conductors: 3
• Number of Potentials: 1
• Nominal Cross-Section: 10 mm² (AWG 8)
• Solid Conductor Range: 0.5 - 16 mm² (20 - 6 AWG)
• Fine-Stranded Conductor Range: 0.5 - 10 mm² (20 - 8 AWG)
• Nominal Voltage (EN): 1000 V
• Nominal Current (EN): 57 A
• Rated Impulse Voltage: 8 kV
• Insulation Material: Polyamide (PA)
• Color: Gray
• Mounting Type: DIN-rail 35
• Stripping Length: 25 mm (0.98 inch)
• Wiring Type: Side-entry
• Pollution Degree: 3
• Operating Temperature: -35 to +85 °C
• Flammability Rating: UL 94 V-0

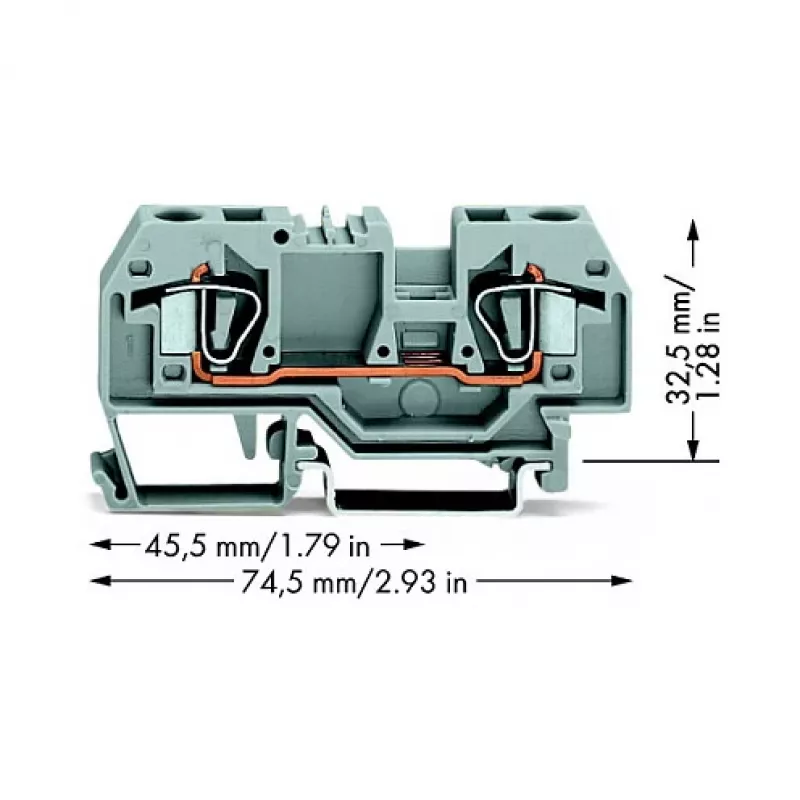

• Dimensions: 8 mm (width) x 74.5 mm (height) x 32.5 mm (depth)

Recommendations

For optimal performance, use with WAGO marking strips and end brackets. Ensure proper stripping length of 25 mm for secure connections. Suitable for use in environments with pollution degree 3.
