WAGO 2010-1207 Through Terminal Block, 10 mm², Gray, CAGE CLAMP®

The WAGO 2010-1207 is a high-quality through terminal block designed for reliable and maintenance-free electrical connections. Featuring the innovative CAGE CLAMP® connection technology, it ensures a secure, vibration-proof, and gas-tight connection for solid, stranded, and fine-stranded conductors. This terminal block is ideal for use in industrial control cabinets, building automation, and electrical installations where space-saving and efficient wiring is required.

Advantages

With a rated voltage of 800 V and a rated current of 57 A, the WAGO 2010-1207 offers excellent electrical performance. The compact design (10 mm width) allows for high-density wiring on DIN-rail 35 x 15 mm or 35 x 7.5 mm. The side-entry wiring simplifies installation and maintenance. The gray polyamide housing with UL 94 V-0 flammability rating ensures safety and durability in demanding environments.

Suitable for

• Industrial control panels and switchgear
• Building automation systems
• Electrical distribution and junction boxes
• Machine and plant engineering

Key specifications

• Connection Technology: CAGE CLAMP®
• Number of Conductors: 1
• Nominal Cross Section: 10 mm² (AWG 8)
• Rated Voltage (EN): 800 V
• Rated Current (EN): 57 A
• Mounting Type: DIN-rail 35 x 15 mm / 35 x 7.5 mm
• Color: Gray
• Insulating Material: Polyamide (PA)
• Flammability Rating: UL 94 V-0
• Wire Stripping Length: 18 - 20 mm
• Solid Conductor Size Range: 0.5 - 16 mm² (AWG 20 - 6)
• Stranded Conductor Size Range: 0.5 - 10 mm² (AWG 20 - 8)
• Fine-Stranded Conductor Size Range: 0.5 - 10 mm² (AWG 20 - 8)
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Operating Temperature: -35 °C to +105 °C
• Number of Potentials: 1
• Type of Wiring: Side-entry wiring

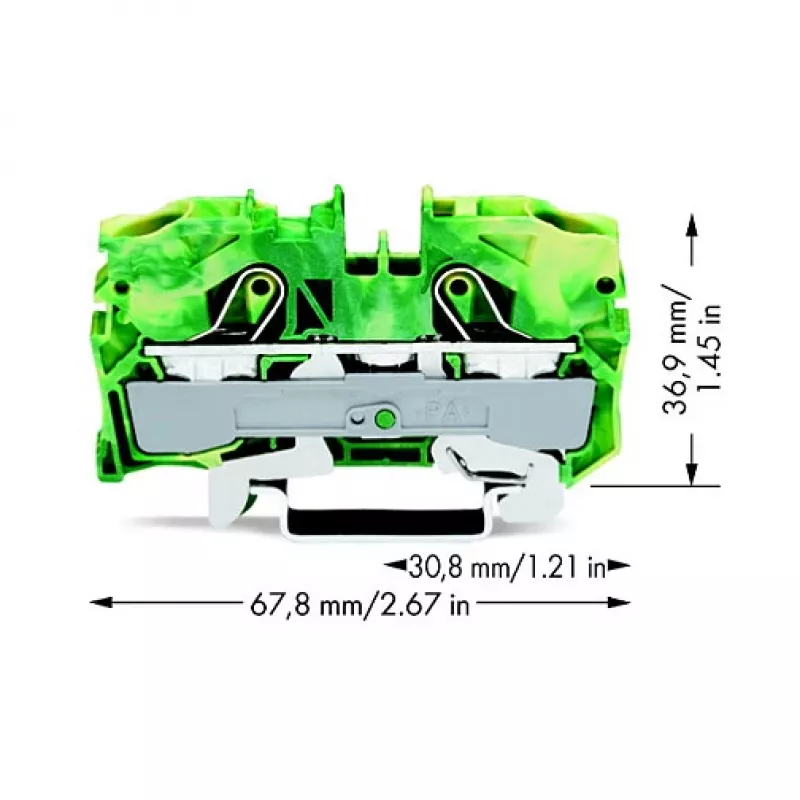

• Dimensions (W x H x D): 10 mm x 67.8 mm x 36.9 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper wire stripping length (18-20 mm) for secure connection. Suitable for use in environments with pollution degree 3.
