WAGO 2002-1301 Push-in CAGE CLAMP Terminal Block, 2-Conductor, 2.5 mm², 800 V, Gray

The WAGO 2002-1301 is a high-quality 2-conductor terminal block from the 2002 Series, featuring the innovative Push-in CAGE CLAMP® connection technology. Designed for reliable and maintenance-free wiring, this terminal block is ideal for industrial control cabinets, building automation, and electrical installations. With a rated voltage of 800 V and a rated current of 24 A, it ensures safe and efficient power distribution. The compact dimensions (5.2 mm width, 59.2 mm height, 32.9 mm depth) save valuable space on DIN-rail 35 mm.

Advantages

Push-in CAGE CLAMP® technology allows for fast, tool-free connection of solid conductors. The maintenance-free spring pressure connection ensures vibration-proof and corrosion-resistant contacts. The gray insulation housing made of polyamide (PA) provides high mechanical strength and electrical insulation. Rated for pollution degree 3 and overvoltage category III, it meets stringent safety standards.

Suitable for

• Industrial control panels and switchgear
• Building automation systems (HVAC, lighting, security)
• Power distribution and junction boxes
• Machine building and plant engineering

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Number of Potentials: 1
• Number of Connections: 2
• Nominal Cross-section: 2.5 mm² (12 AWG)
• Rated Voltage (EN): 800 V
• Rated Current (EN): 24 A
• Rated Impulse Voltage: 8 kV
• Mounting Type: DIN-rail 35 mm
• Color: Gray
• Insulation Material: Polyamide (PA)
• Solid Conductor Size: 0.25 - 4 mm² (22 - 12 AWG)
• Fine-Stranded Conductor Size: 0.25 - 2.5 mm² (22 - 14 AWG)
• Stripping Length: 9 - 11 mm (0.35 - 0.43 inch)
• Pollution Degree: 3
• Overvoltage Category: III
• Flammability Rating: UL94 V-0
• Operating Temperature: -35 to +85 °C

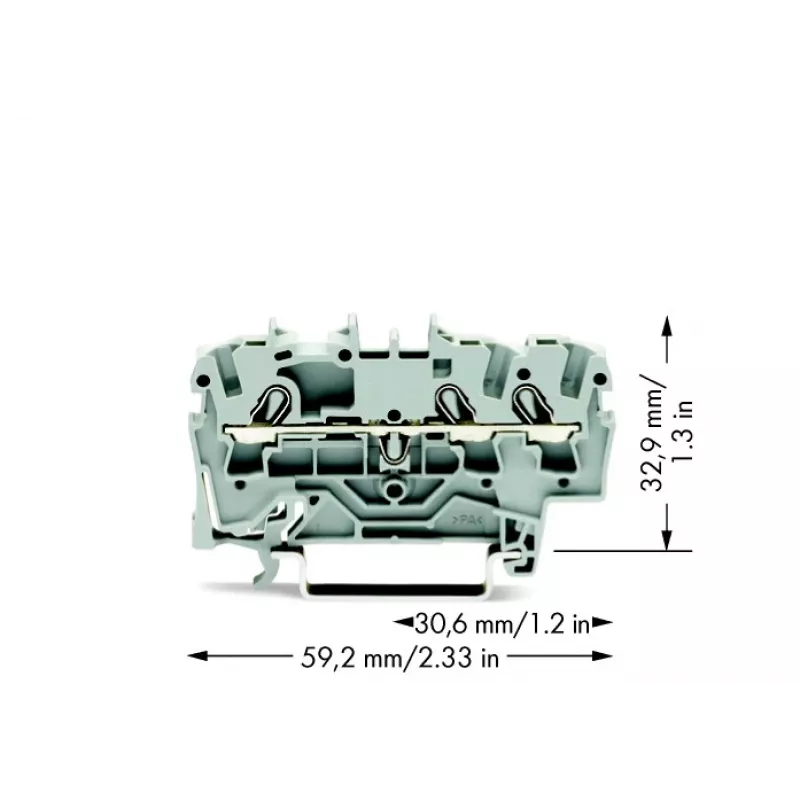

• Dimensions (WxHxD): 5.2 x 59.2 x 32.9 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length for reliable connections. Suitable for use in environments with pollution degree 3.
