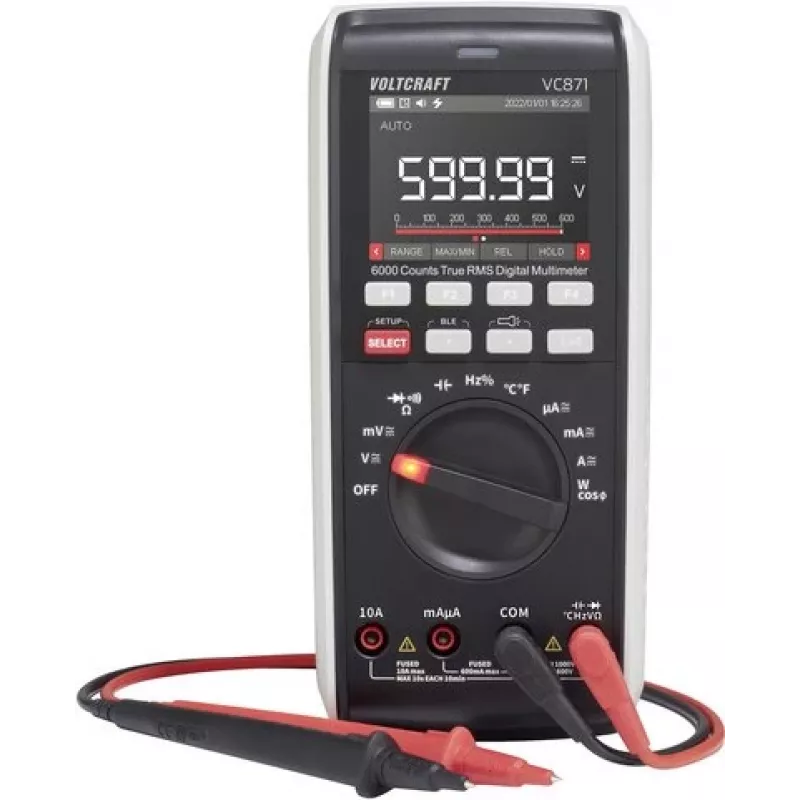

VOLTCRAFT VC871 True RMS Digital Multimeter with Data Logger, ISO Calibrated, CAT III 1000V / CAT IV 600V, 60000 Counts VC-13948590

In industrial and laboratory environments, accurate measurement and documentation of electrical parameters are critical. The VOLTCRAFT VC871 addresses this need by combining a high-resolution 60,000-count true RMS multimeter with an integrated data logger and ISO calibration certificate, ensuring reliable and traceable measurements.

Who is it for

This multimeter is ideal for professional electricians, maintenance technicians, and engineers who require precise measurements in demanding CAT III and CAT IV environments. It is also suitable for quality assurance and calibration laboratories that need documented measurement data.

Main features

• 60,000-count backlit LCD display with true RMS for accurate AC measurements
• Integrated data logger with memory for 20,000 measured values and USB interface for PC transfer
• ISO calibration certificate included for documented accuracy
• Wide measurement ranges: DC/AC voltage up to 1000 V, DC/AC current up to 10 A, resistance up to 60 MΩ, capacitance up to 60 mF, frequency up to 10 MHz, temperature from -40 to +1000 °C
• Safety rated CAT III 1000 V and CAT IV 600 V for high-energy circuits
• Additional functions: Min/Max/Avg, Peak Hold, Data Hold, Relative Measurement, Auto-Range, Auto Power Off

Specifications

• Display: 60,000 counts, backlit LCD
• DC voltage range: 0.1 mV to 1000 V, basic accuracy 0.05%
• AC voltage range: 0.1 mV to 1000 V, true RMS
• DC current range: 0.1 µA to 10 A
• AC current range: 0.1 µA to 10 A, true RMS
• Resistance range: 0.1 Ω to 60 MΩ
• Capacitance range: 0.01 nF to 60 mF
• Frequency range: 0.001 Hz to 10 MHz
• Temperature range: -40 to +1000 °C (with K-type sensor)
• Power supply: 1x 9V block battery
• Interfaces: USB (optical) for data transfer
• Safety: CAT III 1000 V, CAT IV 600 V
• Calibration: ISO calibrated

Tips

For temperature measurements, use a K-type thermocouple (not included). To extend battery life, the auto power-off function can be disabled if continuous logging is required. Regularly check the calibration validity and recalibrate as needed to maintain measurement accuracy.
