Handheld multimeter Unit UT107 — AC/DC voltage measurement handheld tester

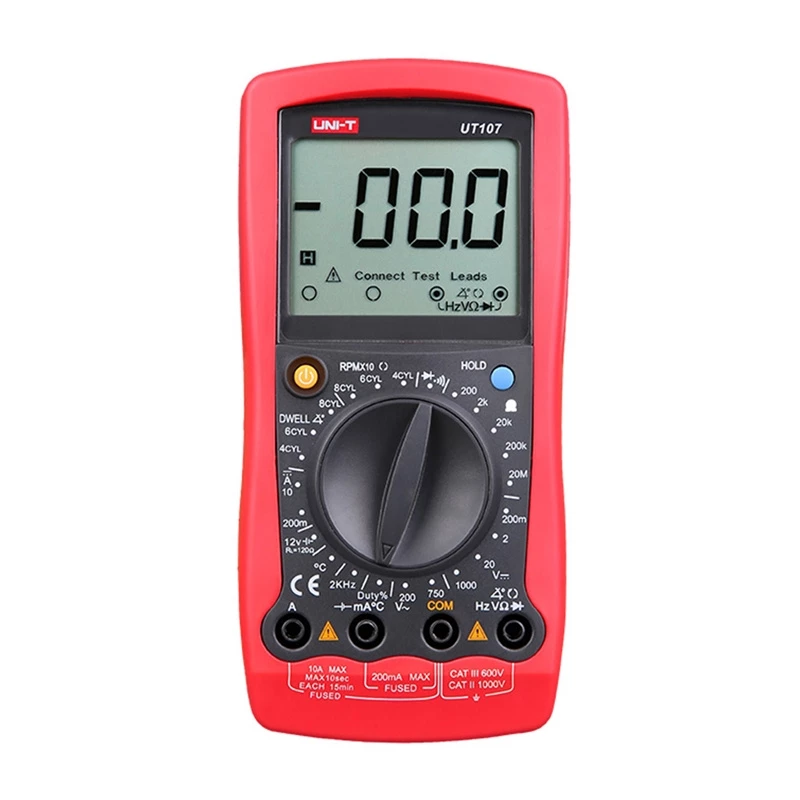

UNI-T UT107 handheld automotive multimeter

The UNI-T UT107 is a handheld digital multimeter that is designed specifically for use in automotive workshops and by mechanics involved in vehicle electrical diagnostics. It offers a wide range of measurement functions to check the condition of ignition systems, power supplies, batteries and many other system components. It is a reliable tool for field and garage work - durable, accurate and easy to use.

Wide range of measurements

The UT107 provides precise measurements of direct current (DC) voltage from 200 mV to 1000 V and alternating voltage (AC) up to 750 V. In addition, the meter supports DC current measurement of up to 10 A, which makes it possible to control the current consumption of various car components. Resistance measurement is possible from 200 Ω all the way up to 20 MΩ, which works well for diagnosing sensors, wires and connections.

Features dedicated to automotive diagnostics

The UT107 multimeter offers more than just classic measurements - the device is equipped with a number of functions designed with vehicles in mind. It allowsamong others. for testing a 12-volt battery, as well as measuring the duty cycle from 1% to 90%, which is useful for evaluating the operation of control systems. It also supports the Dwell/Tach function for 4-, 6- and 8-cylinder engines, so you can precisely control the operation of the ignition system.

Temperature and frequency measurement

The UT107 can also measure temperature over a wide range from -40°C to as much as 1000°C, thanks to an attached temperature probe. This allows you to quickly diagnose overheating components or check the operating temperature of sensors and cooling systems. The tester also supports frequency measurement up to 2 kHz, which works well for analyzing signals in electronic and ignition systems.

Included

• multimeter
• test leads
• holster
• temperature probe with point contact

How to use

Connect the test leads and select the required measurement function and range on the rotary switch. Use the DC/AC voltage and current ranges to measure vehicle circuits and component consumption; use resistance and continuity checks for wiring and sensor diagnostics. Attach the temperature probe to measure component or sensor temperatures. For ignition system checks use the Dwell/Tach and frequency functions and select the appropriate cylinder setting for engines with 4, 6 or 8 cylinders. Observe safety precautions and disconnect power where required before making some measurements.

Recommendations

Store the multimeter in its holster when not in use, replace the 9 V battery as needed, and verify test leads and probe condition before diagnostics. For accurate measurements follow the specified ranges and ensure proper probe contact with test points.
