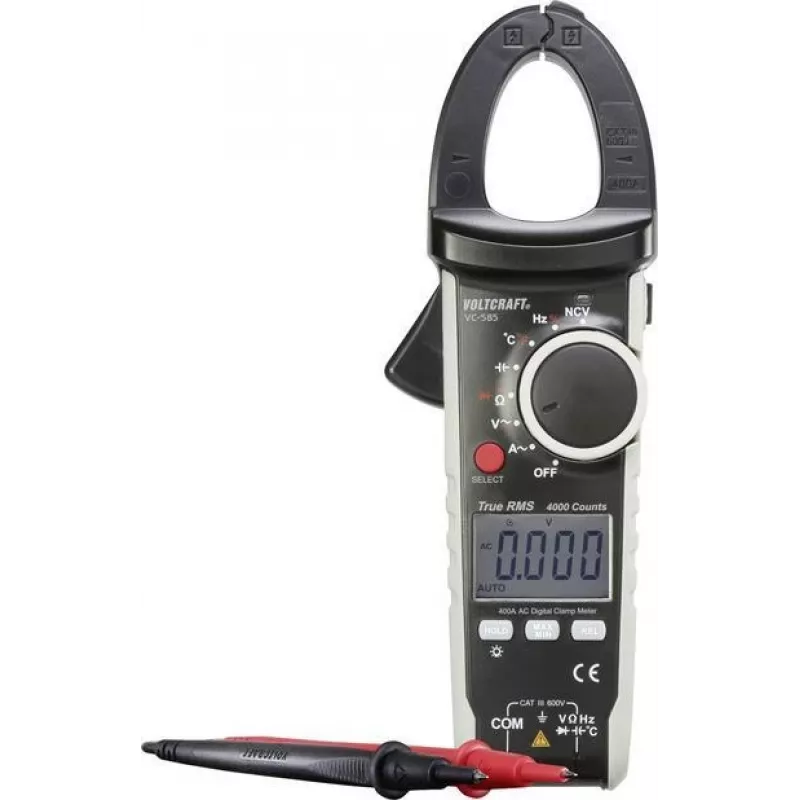

VOLTCRAFT VC585-ISO Digital Clamp Meter, True RMS, CAT III 600V, 4000 Counts, ISO Calibrated

True RMS measurement across AC/DC current up to 600 A, CAT III 600 V safety, and ISO calibration make the VC585-ISO a dependable tool for professional electrical diagnostics. The 4000-count LCD with backlight ensures clear readings even in dim distribution panels, while the 30 mm jaw opening accommodates conductors in tight spaces.

Overview

The VOLTCRAFT VC585-ISO is a digital clamp meter engineered for electricians and technicians who require precise, safe, and documented measurements. It measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and temperature. The meter is ISO calibrated, providing traceable accuracy for quality assurance and compliance. It is powered by three AAA batteries and features auto power off to conserve energy.

What stands out

• True RMS for accurate readings on non-sinusoidal waveforms
• ISO calibration certificate included for verified accuracy
• CAT III 600 V safety rating for industrial environments
• Wide jaw opening of 30 mm for large conductors
• Backlit 4000-count display for low-light visibility
• Measures temperature from -40 °C to +1000 °C with optional probe
• Continuity and diode test with acoustic signal

Technical details

• AC/DC current: 0.1 A to 600 A
• AC/DC voltage: 0.1 mV to 600 V
• Resistance: 0.1 Ω to 40 MΩ
• Capacitance: 1 nF to 4000 µF
• Frequency: 1 Hz to 400 kHz
• Temperature: -40 °C to +1000 °C
• Display: LCD, 4000 counts, backlit
• Safety: CAT III 600 V
• Jaw opening: 30 mm
• Power: 3x 1.5 V AAA batteries
• Features: data hold, auto range, low battery indicator, auto power off
• Calibration: ISO

Our verdict

The VC585-ISO combines robust safety, comprehensive measurement functions, and ISO-certified accuracy, making it an excellent choice for professionals who need reliable performance and documentation.
