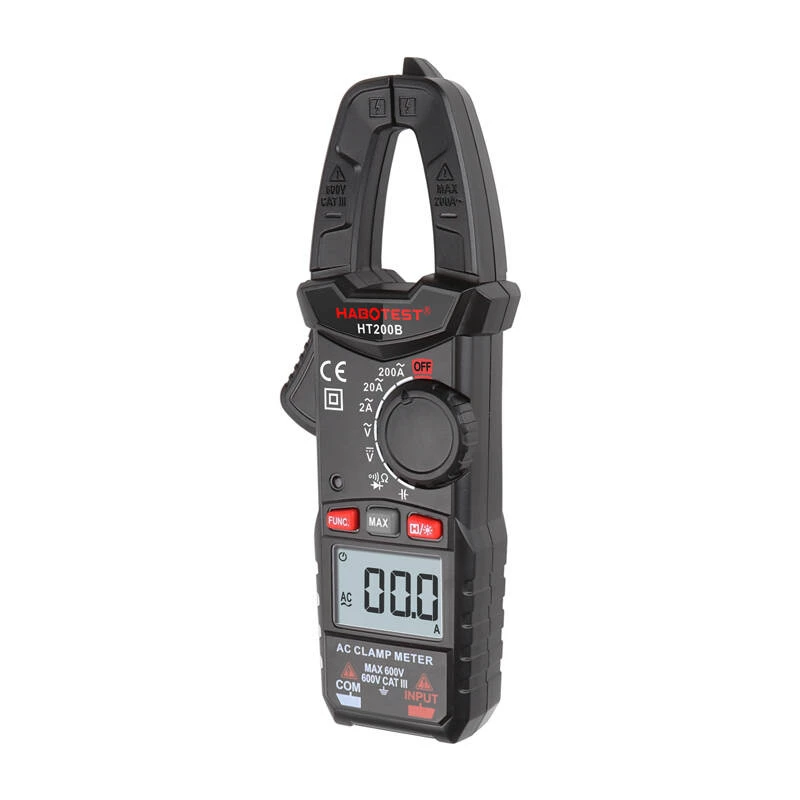

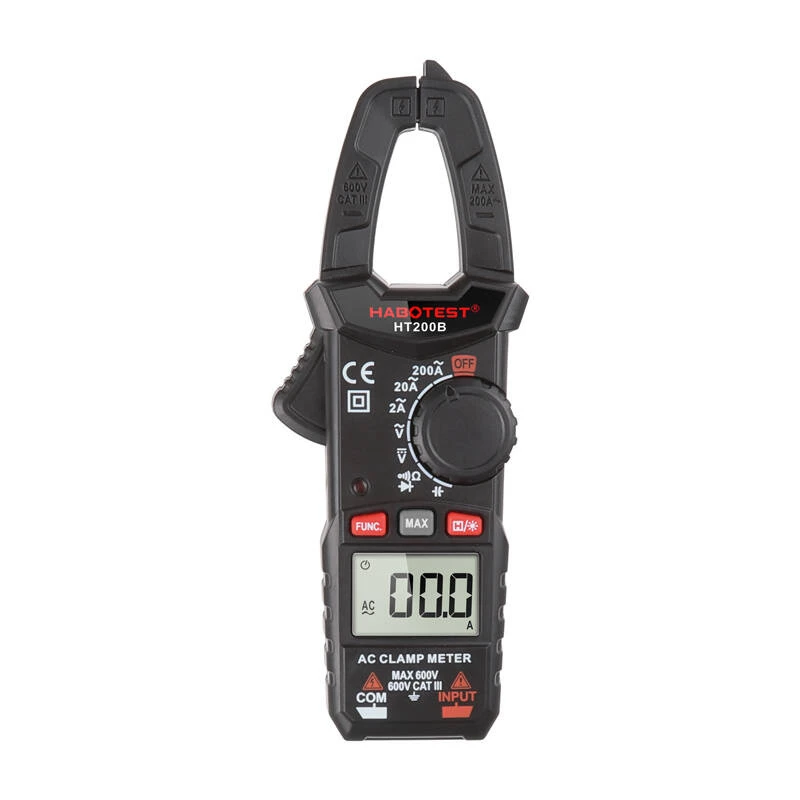

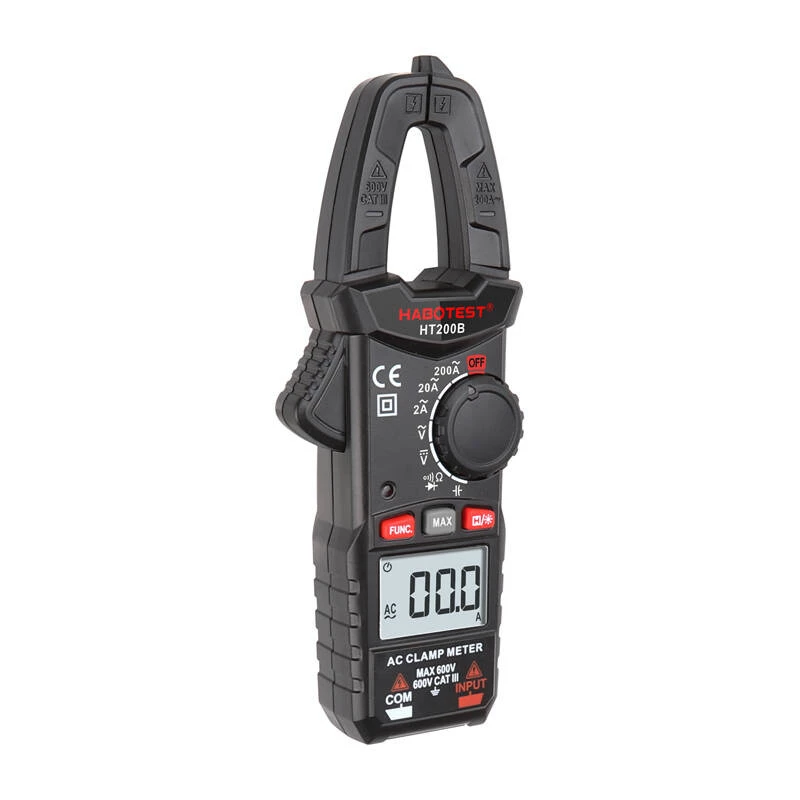

Habotest HT200B Digital Clamp Meter, True RMS 6000 Counts, NCV, AC/DC Voltage, AC Current up to 600A, Capacitance, Frequency and Temperature Measurement

The Habotest HT200B digital clamp meter brings True RMS measurement and a 6000-count display to your toolkit, making it a step above typical entry-level clamps. It reliably measures AC current without breaking the circuit, and its non-contact voltage detection adds a valuable layer of safety.

Highlights

• True RMS for accurate readings on non-linear loads
• AC current measurement up to 600A with 26mm jaw opening
• AC/DC voltage, resistance, capacitance, frequency and temperature measurement
• Non-contact voltage (NCV) detection with audible and visual alerts
• Diode and continuity testing with buzzer
• Backlit display, data hold and auto-ranging for convenience

In daily use

Throughout the day, the HT200B proves its worth in electrical panels, machinery, and household wiring. The 26mm jaw easily clamps around cables up to 1 inch in diameter for current checks, while NCV lets you quickly confirm live wires without contact. The backlit screen ensures readability in dimly lit spaces, and the data hold button freezes measurements for careful reading. The device is powered by two AAA batteries and meets stringent safety standards, giving you confidence during routine maintenance or fault-finding.

Full specifications

• Display: 6000 counts LCD
• AC Current: 6A/60A/600A
• AC Voltage: 6V/60V/600V
• DC Voltage: 6V/60V/600V
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Capacitance: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF
• Frequency: 10Hz~10MHz
• Temperature: -20°C~1000°C (-4°F~1832°F)
• Jaw Opening: 26mm (1.0 inch)
• True RMS: Yes
• NCV Detection: Yes
• Diode Test: Yes
• Continuity Test: Yes (with buzzer)
• Backlight: Yes
• Auto Ranging: Yes
• Data Hold: Yes
• Power Supply: 2 x 1.5V AAA batteries
• Safety Rating: EN61010-1, -2-030, EN61010-2-032, CAT III 600V, CAT II 1000V

Final note

The Habotest HT200B is a comprehensive, budget-friendly clamp meter that does not compromise on essential features. Its blend of True RMS accuracy, broad measurement ranges, and safety certifications makes it a reliable companion for both professionals and advanced hobbyists.
