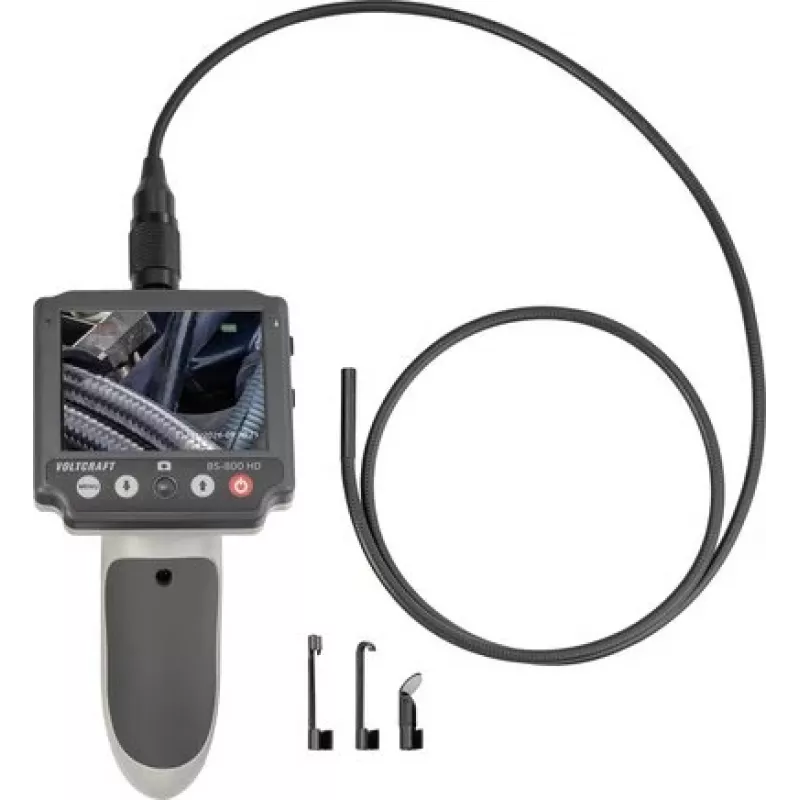

VOLTCRAFT BS-800 HD Endoscope Camera with 5.5 mm Probe, 1 m Semi-Rigid Cable, 3.5 inch TFT LCD, 720p HD, IP67 Waterproof, 6 Dimmable LEDs, MicroSD Recording

Capture crisp 1280 x 720 HD video and still images in tight, dark spaces with the VOLTCRAFT BS-800 HD inspection camera. Its 5.5 mm semi-rigid probe reaches deep into engines, walls, and conduits, while six dimmable LEDs illuminate the target for clear viewing on the 3.5-inch TFT display.

Overview

The BS-800 HD is a professional-grade endoscope built for automotive, HVAC, plumbing, and electrical diagnostics. The 1-metre probe is waterproof to IP67 and features a 60° field of view, letting you inspect pipes, cylinders, and behind panels without disassembly. Images and videos are stored on a MicroSD card (up to 32 GB, not included) for later review, and the device can output live video via AV or USB for documentation or sharing.

What stands out

• HD 720p camera sensor delivers sharp, detailed visuals
• Ultra-slim 5.5 mm probe fits into narrow openings
• Six adjustable LEDs provide optimal lighting in dark cavities
• IP67 waterproof probe withstands wet and dusty environments
• 2x digital zoom and 180° image rotation for flexible viewing
• Runs on four AA batteries for portability and long field use

Technical details

• Display: 3.5" TFT LCD, 320 x 240 pixels
• Camera resolution: 1280 x 720 pixels (HD)
• Probe diameter: 5.5 mm; length: 1 m
• Field of view: 60°; depth of field: 30–60 mm
• Light source: 6 dimmable LEDs
• Waterproof rating: IP67 (probe only)
• Image format: JPEG; video format: AVI
• Storage: MicroSD card up to 32 GB (not included)
• Power: 4x AA batteries (not included)
• Operating temperature: 0–45 °C
• Outputs: USB, AV out
• Cable type: semi-rigid

Our verdict

The VOLTCRAFT BS-800 HD combines a rugged, waterproof probe with a bright, clear display and straightforward operation. It is an excellent choice for technicians and serious DIYers who need reliable visual inspection in hard-to-reach areas.
