USB endoscope MEDIA-TECH ENDOSCOPE 66° CMOS, 640x480 30fps, IP67, 6 LEDs, magnet & hook

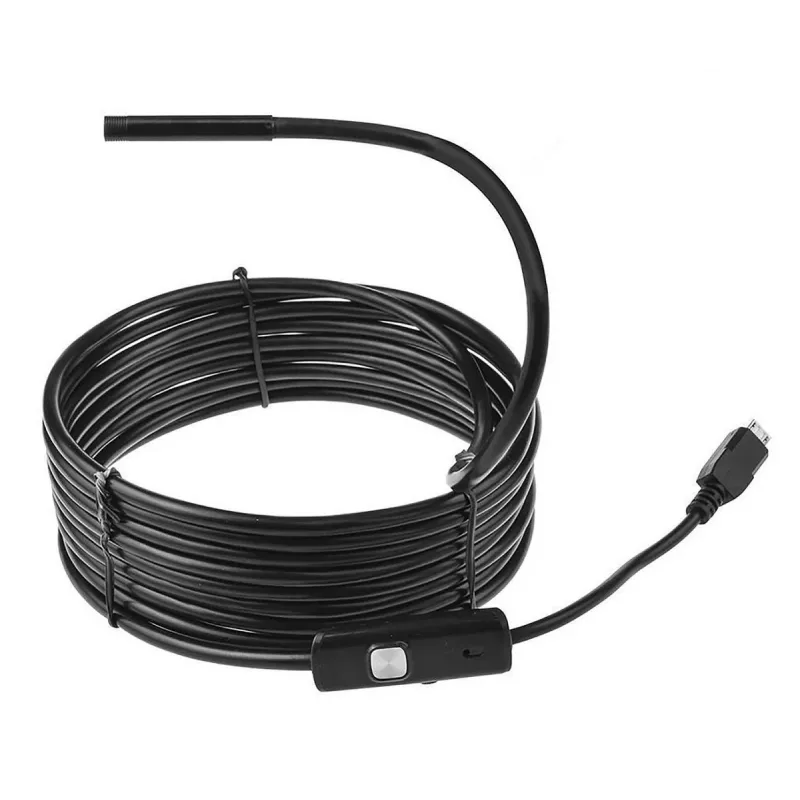

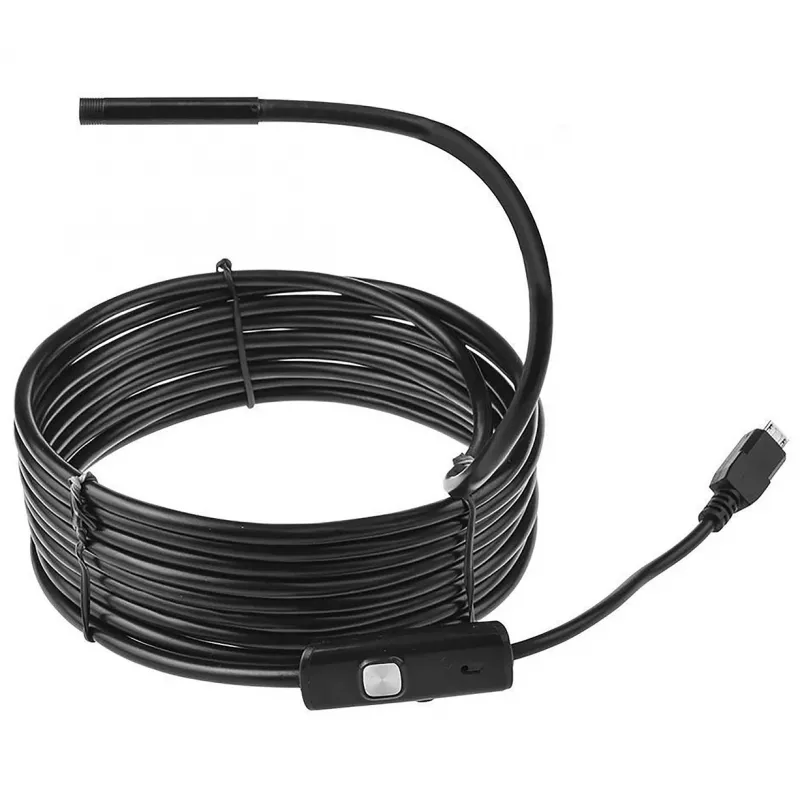

MT4095 is a universal USB inspection endoscope designed for visual inspection in hard-to-reach places such as sewer pipes, ventilation ducts, and the interiors of machines and motors. The device features a slim 5.5 mm inspection camera on a flexible 5 m cable, transmits images to a computer or compatible Android smartphone via USB, and uses a 66° CMOS sensor with a 640 x 480 video resolution. The endoscope is USB powered, weighs 0.15 kg and is available in black.

Advantages

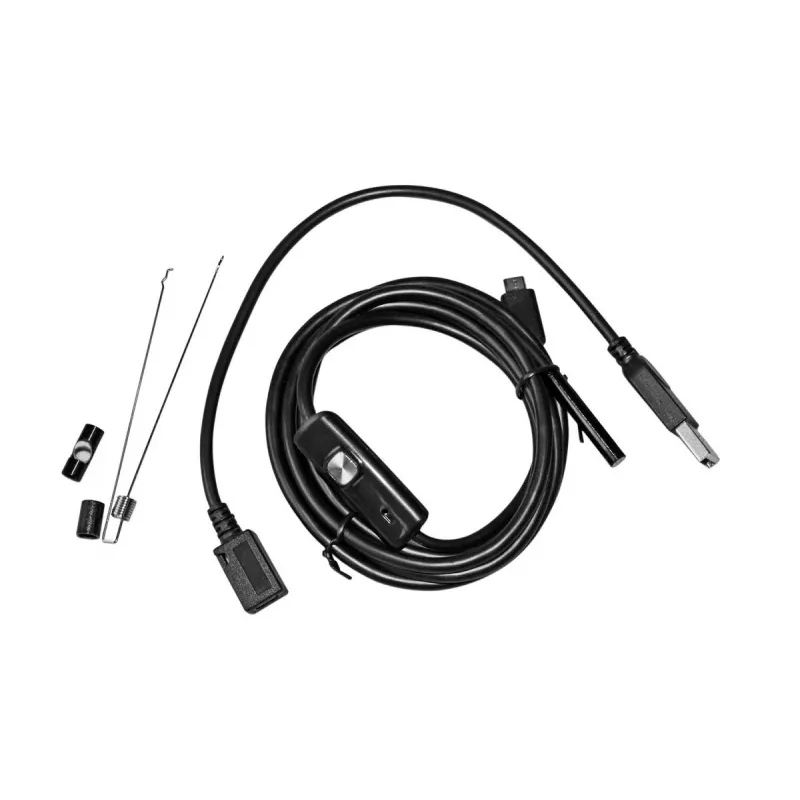

The Media‑Tech USB Endoscope offers a long 5 m flexible cable that enables inspection of deep or confined spaces. A 5.5 mm camera tip with a 66° CMOS sensor provides a clear field of view with 640 x 480 resolution. Six adjustable LEDs on the camera improve visibility in dark environments, and an OTG adapter (micro USB to USB‑A) allows connection to many Android smartphones as well as to PCs. The unit is lightweight (150 g) and USB powered, requiring no separate battery.

Suitable for

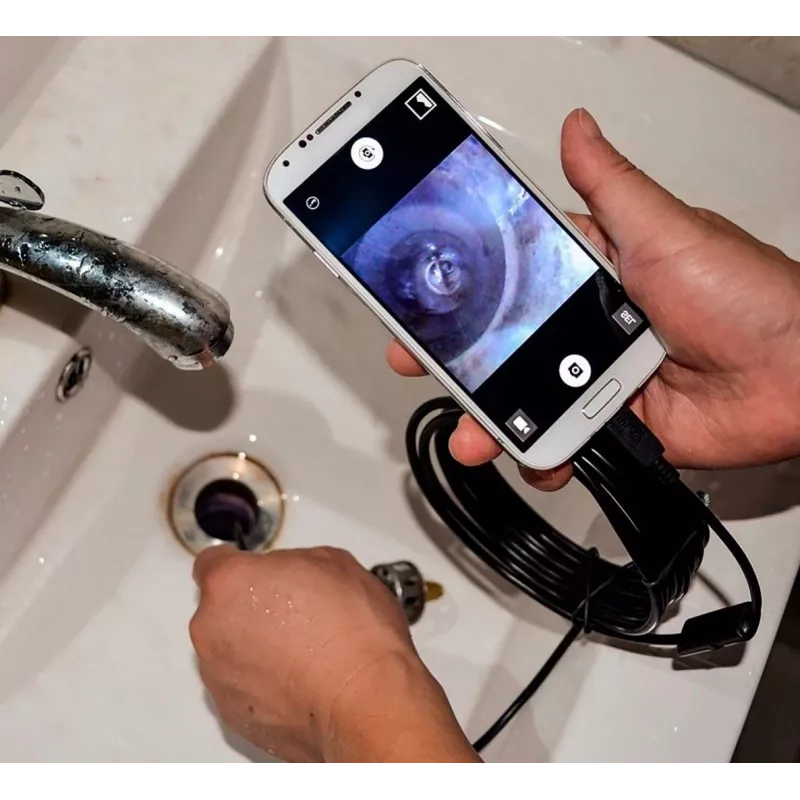

• Inspection of sewer pipes and drains
• Checking ventilation ducts and HVAC systems

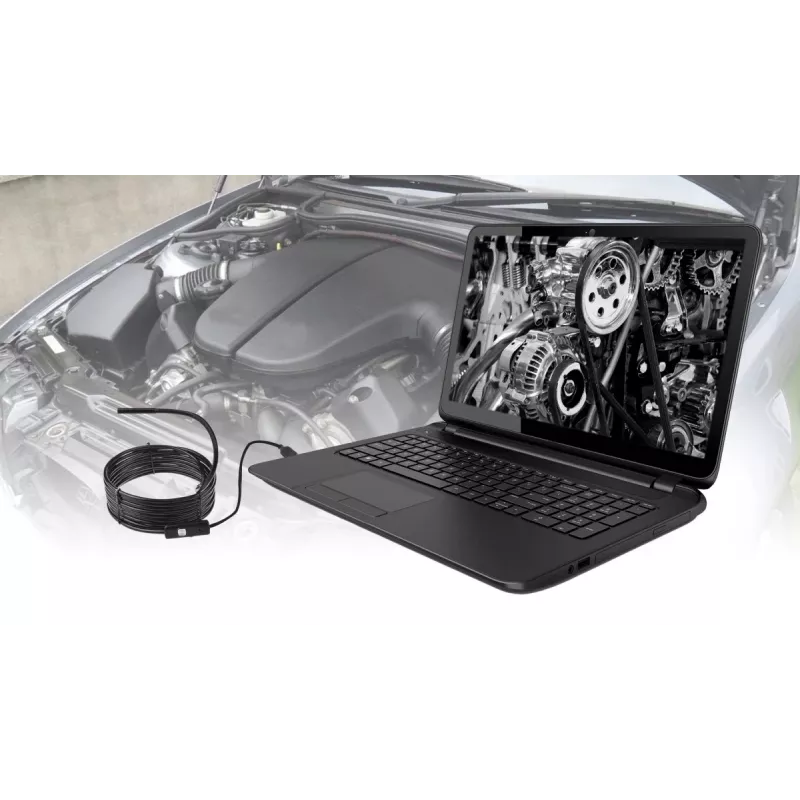

• Examining machine, motor and engine interiors
• Automotive and household maintenance in confined spaces
• DIY troubleshooting and small repairs

Key specifications

• Sensor type: CMOS
• Viewing angle: 66°
• Camera diameter: 5.5 mm
• Cable length: 5 m
• Video resolution: 640 x 480
• Power: USB powered
• Weight: 0.15 kg
• Colour: Black

How to use

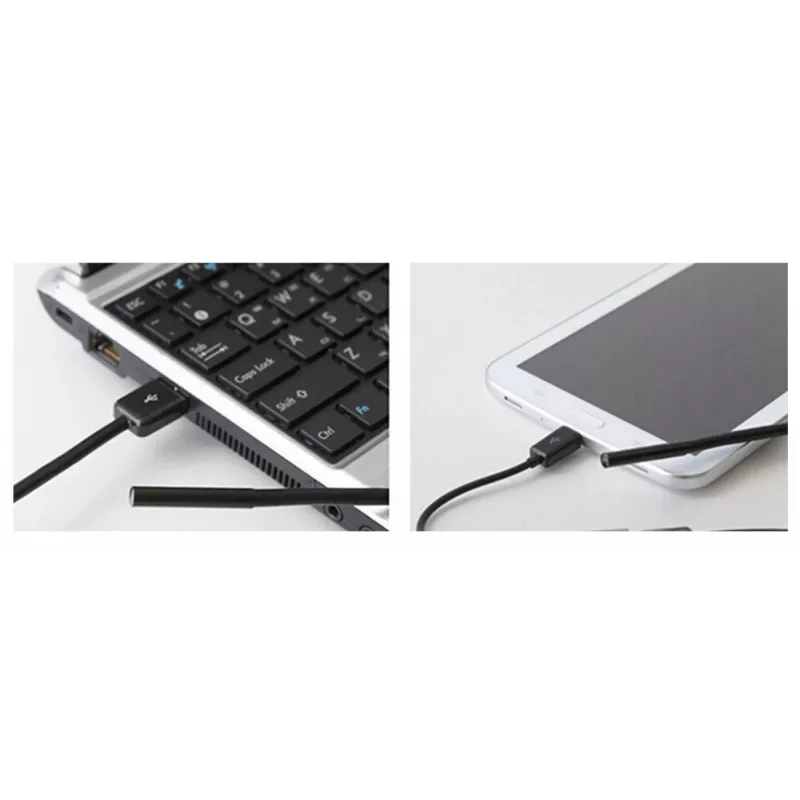

Connect the endoscope to a PC using the USB cable or to an Android smartphone using the supplied OTG adapter. For PC use, install the ViewPlayCap software from the supplied CD or download it from the manufacturer's link. For mobile use, install the free OTG Endoscope app from Google Play. Start the chosen application, adjust the camera position and brightness of the six LEDs using the control on the cable, and view or record the live video feed on the screen.

Recommendations

Before inserting the camera into pipes or tight mechanical spaces, clean visible debris and avoid forcing the cable through sharp bends. Use the adjustable LED brightness to prevent image washout when the camera is close to reflective surfaces. Disconnect the device from power before storing and keep the camera tip protected to avoid damage.
