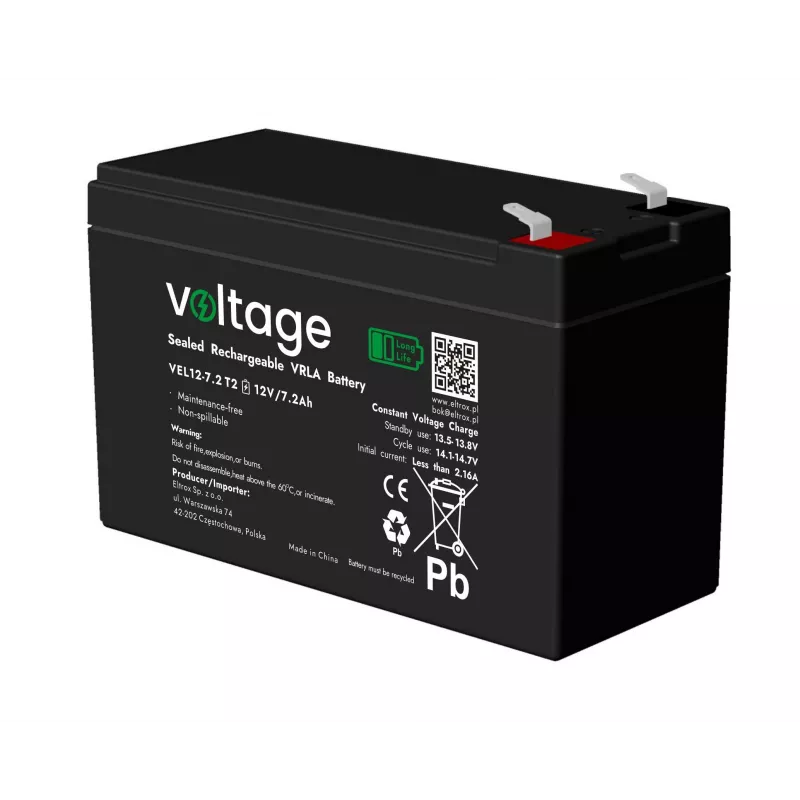

VOLTAGE AGM Battery 12V 7.2Ah VEL12-7.2 T2 Long Life 15 Years

The VOLTAGE VEL12-7.2 T2 is a high-quality sealed lead-acid (SLA) battery with AGM technology, designed for long-life applications. With a nominal voltage of 12V and a capacity of 7.2Ah, this maintenance-free battery offers reliable performance and a design life of up to 15 years. It features T2 (F2) terminals and is ideal for backup power, security systems, and emergency lighting.

Advantages

Long service life of 15 years reduces replacement frequency and total cost of ownership. AGM technology ensures low internal resistance, high discharge current capability, and maintenance-free operation. The battery is leak-proof and can be installed in various orientations.

Suitable for

• Uninterruptible Power Supplies (UPS)
• Alarm and security systems
• Emergency lighting
• Medical equipment
• Telecommunications

Key specifications

• Battery Type: Sealed Lead-Acid (AGM)
• Nominal Voltage: 12V
• Nominal Capacity: 7.2Ah (C20)
• Design Life: 15 years
• Terminal Type: T2 (F2)
• Internal Resistance: Approx. 25 mΩ
• Max. Discharge Current: 108A (5 seconds)
• Max. Charge Current: 2.16A
• Float Charge Voltage: 13.5V - 13.8V @ 25°C
• Cycle Use Voltage: 14.4V - 15.0V @ 25°C
• Operating Temperature (Discharge): -15°C to 50°C
• Operating Temperature (Charge): -15°C to 40°C
• Self-Discharge: Less than 3% per month at 25°C
• Container Material: ABS
• Maintenance: Maintenance-free
• Total Height (with terminals): 98 mm

Recommendations

For optimal performance and longevity, use a compatible charger with appropriate voltage settings. Store in a cool, dry place. Always follow manufacturer guidelines for installation and disposal.
