Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W

Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
Vivolink VLHDMIMAT4X431 matrix switcher AV matrix switcher 58 W
R20,883
4K HDMI2.0 HDBaseT Matrix HDCP2.2, audio de-embedder HD Audio support, build-in GUI + LAN control Typical installations:Professional signal distribution with selectable in and outputs Function: 4 HDMI inputs3 HDBaseT Outputs1 HDMI outputsAudio SPDIF (coax) + L/RControl: IR + RS232 + TCP/IPCompatible... Read More
Stock Out Of StockNo Stock Code 1717949 Brand VIVOLINK Model VLHDMIMAT4X431 Warranty 2 Years

Shipping & Returns

4K HDMI2.0 HDBaseT Matrix HDCP2.2, audio de-embedder HD Audio support, build-in GUI + LAN control

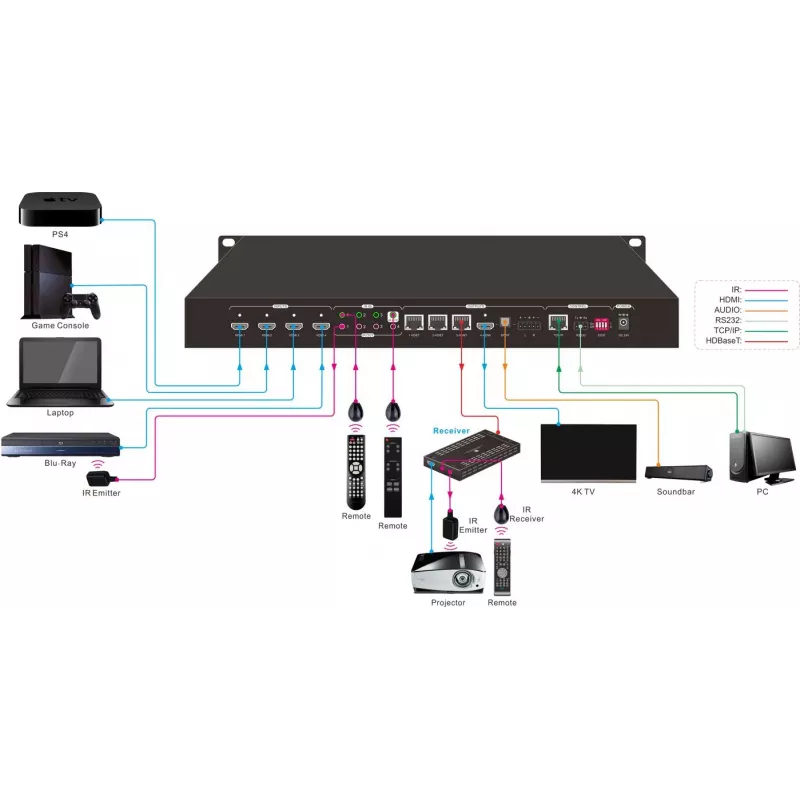

Typical installations:
Professional signal distribution with selectable in and outputs

Function:
4 HDMI inputs
3 HDBaseT Outputs
1 HDMI outputs
Audio SPDIF (coax) + L/R
Control: IR + RS232 + TCP/IP
Compatible receiver: VLHDMIMAT4X431-R

Vivolink VLHDMIMAT4X431. Product type: AV matrix switcher, Maximum resolution: 4096 x 2160 pixels, Bandwidth: 18 Gbit/s. Housing colour: Black, Housing material: Metal, Rack capacity: 1U. USB connector type: Micro-USB. Power consumption (max): 58 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 436.4 mm, Depth: 236.5 mm, Height: 44 mm

Key Highlights
  • Fully compliant with HDMI 2.0 HDCP 2.2 specs.
  • Support 18Gbps bandwidth for 4K@60Hz 4:4:4 8bit
  • Can transmit 4K signals to distances up to 131 feet (40 meters) and 108 0P signals to
  • distances up to 229 feet (70 meters) over a single CATx cable.
  • Supports the 24V PoC feature, allowing the receivers to draw their power from the
  • matrix over the CATx cable.
  • Smart EDID managem ent for various application and c ustomized setting.
  • AV matrix switcher Black
  • Maximum resolution: 4096 x 2160 pixels
  • HDCP
  • Rack mounting 1U
  • HDMI input ports quantity: 4 HDMI output ports quantity: 1 RJ-45 input ports: 1 RJ-45 output ports: 3
  • 58 W
Specifications
3D
Yes
AC adapter included
Yes
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Analog audio output terminal ports
1
Audio (L/R) out
1
Audio channels
7.1
Audio formats supported
PCM
Bandwidth
18 Gbit/s
Built-in display
No
Cables included
IR sensor
Control type
Buttons
Depth
236.5 mm
Digital audio optical out
1
Ethernet LAN (RJ-45) ports
4
Ethernet LAN data rates
10,100,1000 Mbit/s
Extended display identification data (EDID)
Yes
HDCP
Yes
HDCP version
2.2
HDMI input ports quantity
4
HDMI output ports quantity
1
HDMI version
2.0
Height
44 mm
Housing colour
Black
Housing material
Metal
LED indicators
Yes
Maximum resolution
4096 x 2160 pixels
Mounting brackets included
Yes
Operating temperature (T-T)
-5 - 55 °C
Output current
2710 mA
Output voltage
24 V
Package weight
1.9 kg
Power consumption (max)
58 W
Product type
AV matrix switcher
Rack capacity
1U
Rack mounting
Yes
Remote (IR) input
4
Remote (IR) output
4
Remote control included
Yes
RJ-45 input ports
1
RJ-45 output ports
3
RS-232 ports
1
Storage relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-25 - 70 °C
Supported chroma subsampling
4:4:4
USB connector type
Micro-USB
USB ports quantity
1
Weight
1.8 kg
Width
436.4 mm

Manual

Open Manual

Leaflet

Open Leaflet
