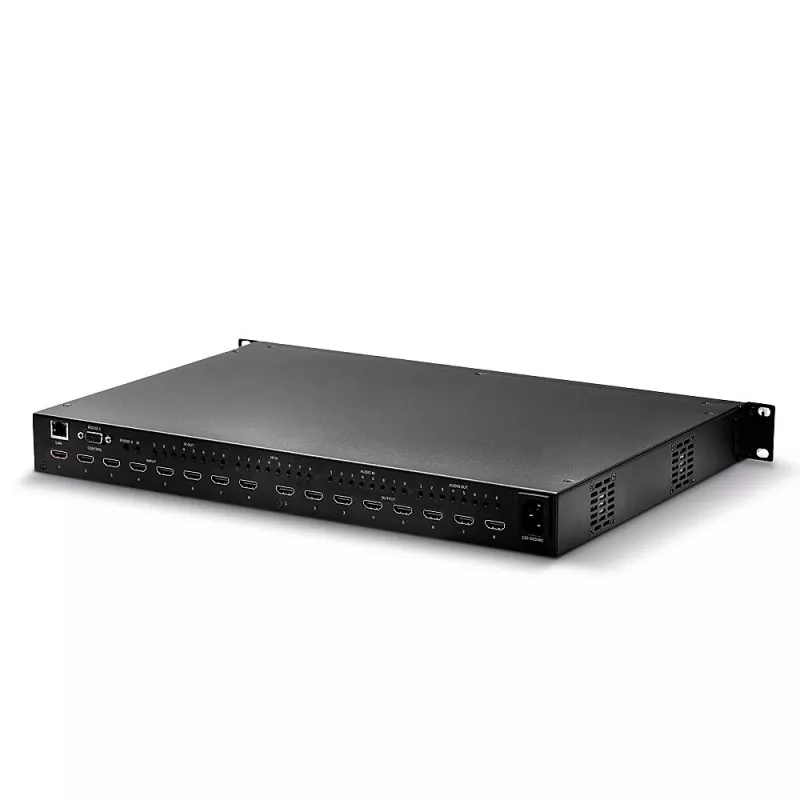

Lindy 8x8 HDMI 18G Matrix with Video Wall Scaling

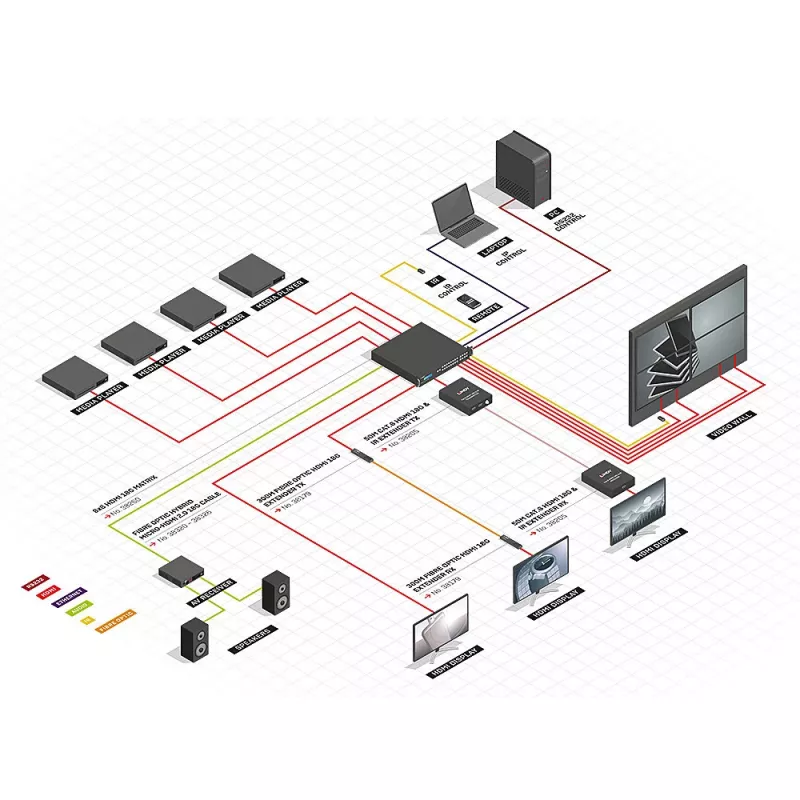

The Lindy 8x8 HDMI 18G Matrix with Video Wall Scaling is the professional solution for distributing content from several source devices to many HDMI displays, or for creating eye-catching video wall setups.

Supporting resolutions up to 4K@60Hz, content can be shown in excellent clarity, great for ensuring a high-quality video experience in sports bars, retail stores or multiple consecutive locations in larger installations. Resolutions can easily be scaled and controlled by the user to ensure the optimum, or consistent, resolution is always displayed.

As well as providing a professional 8x8 matrix switching function, this device can create customisable singular or dual video wall displays in a variety of layouts. This provides the user with a range of flexible display options for their installation and allows the device to be used in a range of specialised environments; including transport hubs, points of sale and hospitality. Analogue audio ports also allow for 2-channel audio extraction, to add immersive stereo audio to the content on screen.

The matrix also provides instant seamless switching between source devices and displays, a crucial feature for use in real time operation centre scenarios such as traffic monitoring, stock market floors or security setups. Controlled via independent IR as well as LAN and push button switching, this matrix ensures minimum effort is required of the user when creating their installation, while RS-232 control also allows for integration into larger control systems.

Professional EDID management ensures maximum compatibility with both the source devices and displays.

Demo Kit Available!

If you are a business customer with a Lindy credit account, you can try this demo kit for yourself.



Lindy have a demo kit which we make available to select customers (subject to approval). Please email [email protected] for details.

Lindy 8x8 HDMI 18G Matrix with Video Wall Scaling. Video port type: HDMI, Video out: 8x HDMI. Maximum resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Maximum refresh rate: 60 Hz. AC input voltage: 110 - 240 V, Power consumption (typical): 100 W. Width: 430 mm, Depth: 300 mm, Height: 44 mm

How to use

Install the Lindy 8x8 matrix in a rack or on a stable surface and connect up to eight HDMI sources and eight HDMI displays using high-quality HDMI cables. Configure EDID settings as required to ensure compatibility between sources and displays, and use the scaling options to set the desired output resolution or video wall layout. Control the matrix locally via the front-panel buttons or remotely via IR, LAN or RS-232 commands. Connect the analogue audio outputs to an external amplifier or speakers for stereo sound extraction.

Recommendations

For best results, use certified HDMI 2.0/18G cables for 4K@60Hz signals, verify EDID settings when connecting mixed-resolution sources, and plan cable routing and ventilation when mounting in racks to avoid heat build-up. Contact Lindy sales for demo kit availability if you need to evaluate the device in your environment.
