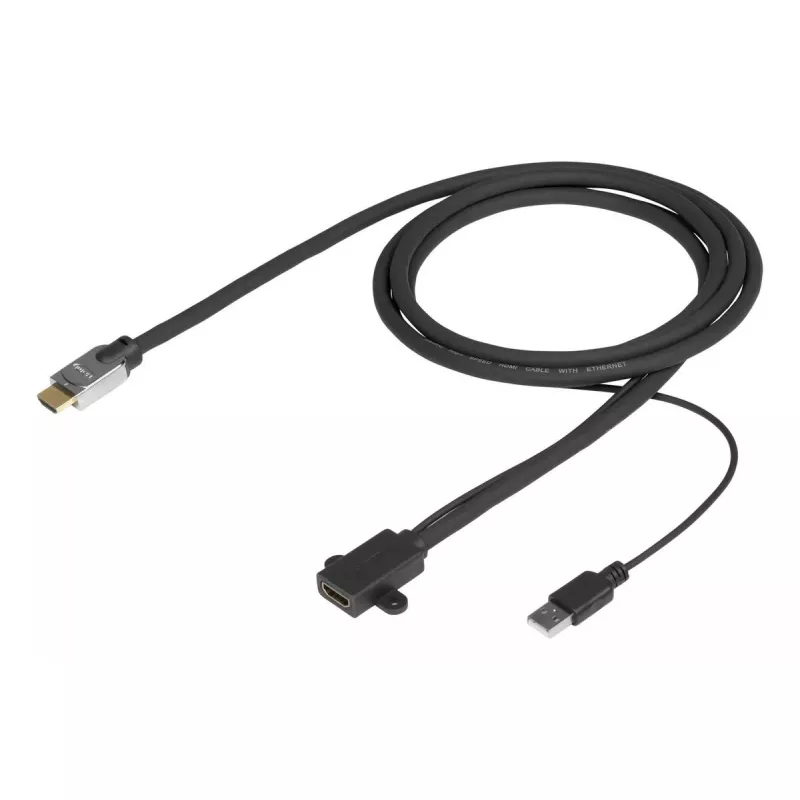

Vivolink PRO HDMI MALE - FEMALE HDMI 2.0 4K - 2K - LSZH

The Vivolink PRO HDMI MALE - FEMALE HDMI 2.0 4K 5m Cable is a high-performance HDMI extension cable designed for professional AV setups. The 5 m cable supports up to 4K@60Hz (4096 x 2160) with HDCP 2.2, CEC and ARC, and delivers up to 18 Gbit/s bandwidth. The cable features a metal-housed HDMI connector and a Low Smoke Zero Halogen (LSZH) jacket for reduced smoke and corrosive gas emissions in case of fire.

Advantages

The LSZH outer jacket provides a smooth, strong surface with minimal friction for easy routing through tight openings such as magic holes. The cable is ultra-flexible for convenient installation and includes a metal housing on the HDMI connector for added durability. A USB power-in cable is provided for power injection when used with compatible fiber extenders, and the female HDMI end has mounting ears for secure fixing under tables or on racks.

Suitable for

• Connecting TVs, projectors and monitors to source devices in home and professional AV environments
• Extending HDMI runs through walls, furniture or conduit where LSZH jacket and low friction are needed
• Installations requiring HDMI power injection via USB (with compatible equipment)
• Setups that need secure mounting of the HDMI female connector (under tables, cabinets, racks)

Key specifications

• Standard: HDMI 2.0
• Bandwidth: 18 Gbit/s
• Resolution support: up to 4K@60Hz (4096 x 2160)
• HDCP: 2.2
• Features: CEC, ARC
• Cable length: 5 m
• Jacket: LSZH (Low Smoke Zero Halogen)
• Connector: HDMI male to HDMI female with metal housing and mounting ears
• Includes: USB cable for power injection (for fiber or compatible extenders)
• Brand: VivoLink
• MPN: PROHDMIHDMFM5-LSZH
• EAN: 5704174553595

How to use

Connect the HDMI male end to the source device and the HDMI female end to a display or to another HDMI cable. If using fiber extenders or devices that require external power, connect the included USB power cable to a suitable USB power source to enable power injection. Secure the female connector using the mounting ears where needed to prevent strain on the connection.

Recommendations

Use this cable in installations that require a flexible, low-smoke HDMI extension. Avoid sharp bends and excessive pulling during installation. For long runs or complex installations, verify compatibility with connected devices (HDCP, CEC and ARC) and use the USB power injection only with supported extenders or equipment.
