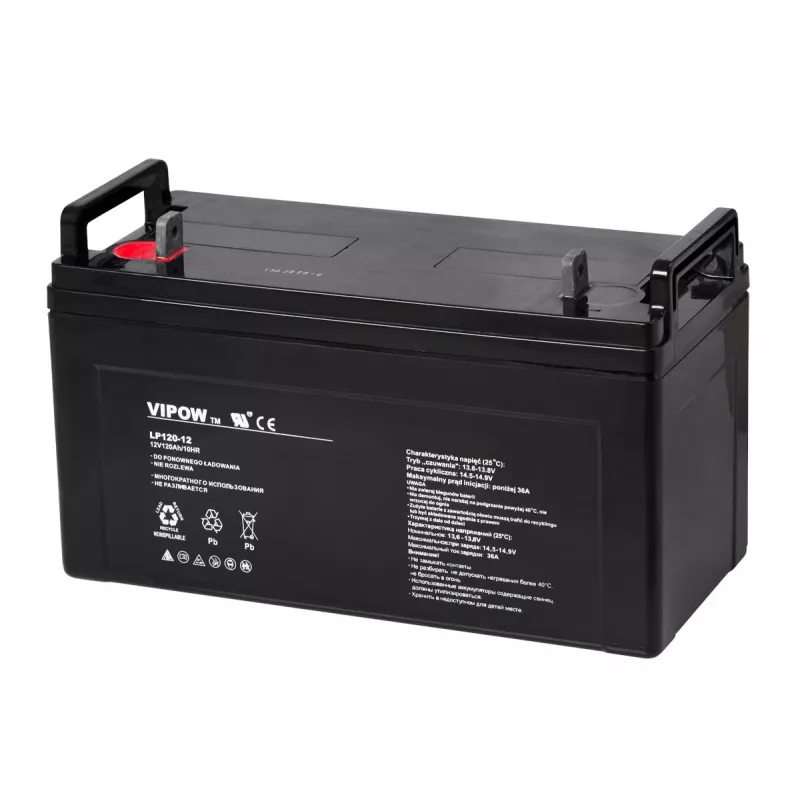

VIPOW Gel Battery 12V 120Ah

A 12V 120Ah deep-cycle gel battery that delivers dependable power for off-grid solar arrays, UPS backup, marine, RV, and telecom systems. Its thixotropic gel electrolyte immobilizes the acid, preventing leaks and enabling safe operation in any orientation. With a design life of 10–12 years and a maximum discharge current of 1200A (5s), this battery handles demanding loads while maintaining stable voltage.

Advantages

The VIPOW gel battery offers exceptional cycle life and deep discharge recovery, making it ideal for daily cycling in renewable energy systems. The sealed, valve-regulated construction (VRLA) eliminates the need for watering or acid checks, and the ABS container resists shock, vibration, and corrosion. M8 bolt-and-nut terminals provide secure, low-resistance connections for high-current applications. Its wide operating temperature range (-20°C to 50°C discharge) ensures dependable performance in harsh climates, while the gel technology prevents stratification and extends service life.

Suitable for

• Solar power storage systems (off-grid and hybrid)
• Uninterruptible power supplies (UPS) for servers, medical equipment, and security systems
• Marine and RV house batteries for trolling motors, lighting, and appliances
• Telecommunications base stations and emergency lighting
• Electric vehicles, wheelchairs, and golf carts

Key specifications

• Nominal voltage: 12V
• Nominal capacity: 120Ah (C10)
• Battery type: Gel (GEL)
• Terminal type: M8 Bolt & Nut (T11)
• Internal resistance: approx. 4.5 mΩ
• Max. discharge current (5s): 1200A
• Max. charging current: 36A
• Float charging voltage: 13.5V - 13.8V @ 25°C
• Cycle charging voltage: 14.4V - 14.7V @ 25°C
• Operating temperature (discharge): -20°C to 50°C
• Operating temperature (charge): -10°C to 50°C
• Self-discharge rate: < 3% per month @ 25°C
• Container material: ABS
• Maintenance: Maintenance-free

Recommendations

For reliable, long-lasting power in renewable energy and backup applications, the VIPOW 12V 120Ah gel battery is an excellent choice. Its deep-cycle capability and robust construction ensure years of dependable service.
